Biamp CCA-80 Grey
Model 207947MPN CCA-80
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 8-inch LF, 2.6-inch MF diaphragm and 1.3-inch HF diaphragm
- Continuous power handling: 50 W at 8 Ω
- Operating range: 110 Hz–13 kHz
- Nominal coverage: Asymmetric aisle coverage; 6:1 throw geometry
- Finish: Grey
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp CCA-80 Grey?

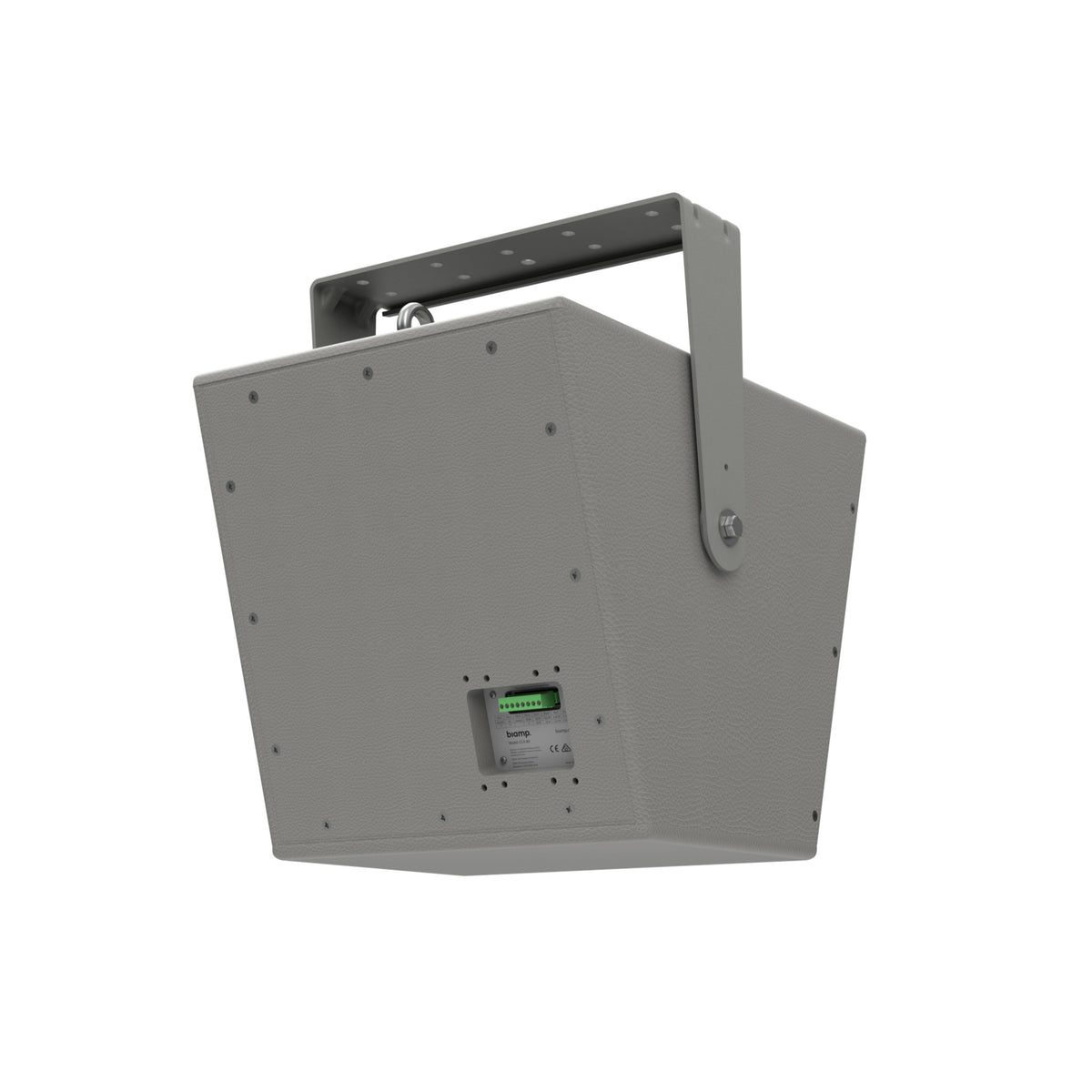

The Biamp CCA-80 Grey is a passive three-way triaxial aisle loudspeaker. Its asymmetric waveguide is designed for long, narrow spaces such as warehouse aisles, concourses and corridors. Selectable transformer taps support a planned 70/100 V speaker line or low-impedance operation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
The Biamp CCA-80 Grey is a passive three-way triaxial aisle loudspeaker. Its asymmetric waveguide is designed for long, narrow spaces such as warehouse aisles, concourses and corridors. Selectable transformer taps support a planned 70/100 V speaker line or low-impedance operation.
- Nominal coverage: Asymmetric aisle coverage; 6:1 throw geometry.
- Finish: Grey.
Use cases
Applications
-
Warehouse aisles and distribution centres
-
Long commercial concourses and corridors
Technical details
Technical Specifications
System
- Driver configuration
- 8-inch LF, 2.6-inch MF diaphragm and 1.3-inch HF diaphragm
- Driver configuration
- 8-inch LF, 2.6-inch MF diaphragm and 1.3-inch HF diaphragm.
Performance & Coverage
- Nominal coverage
- Asymmetric aisle coverage; 6:1 throw geometry
Power
- Continuous power handling
- 50 W at 8 Ω
- Transformer taps
- 70 V: 50/25/12.5/6.25/3.125 W; 100 V: 50/25/12.5/6.25 W
- Recommended amplifier rating
- 50–100 W at 8 Ω
- Continuous power handling
- 50 W at 8 Ω.
Physical
- Finish
- Grey
- Dimensions
- 396 × 377 × 499 mm
- Weight
- 14.5 kg including bracket
General
- Model
- CCA-80 Grey
- Manufacturer part number
- CCA-80
- Operating range
- 110 Hz–13 kHz
- Signal processing
- 100 Hz, 12 dB/octave Butterworth high-pass filtering; configure the full system DSP
- Environment
- Indoor
- Operating range
- 110 Hz–13 kHz.
In the box
What's Included
-
CCA-80 grey loudspeaker quantity as quoted
-
Zinc-plated steel U-bracket
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.4 Four-Channel 300W Amplifier. An amplifier option for the selected 70/100 V transformer taps. Size each channel from the combined tap load, retain power headroom and apply the specified DSP and output limits.
Installation
Match the amplifier mode and load, loudspeaker output limits and 100 Hz, 12 dB/octave Butterworth filtering before commissioning. Verify mounting strength, bracket orientation and secondary retention. Confirm speaker quantity and individual-versus-pack pricing on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your CCA-80 Grey quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
