Video Wall Mounts

A video wall mount is built to hold one panel in a tiled grid, with fine adjustment to line up neighbouring screens and a push-pull action to bring each panel forward for service. A normal TV wall mount holds a single screen and has no alignment or pop-out mechanism.

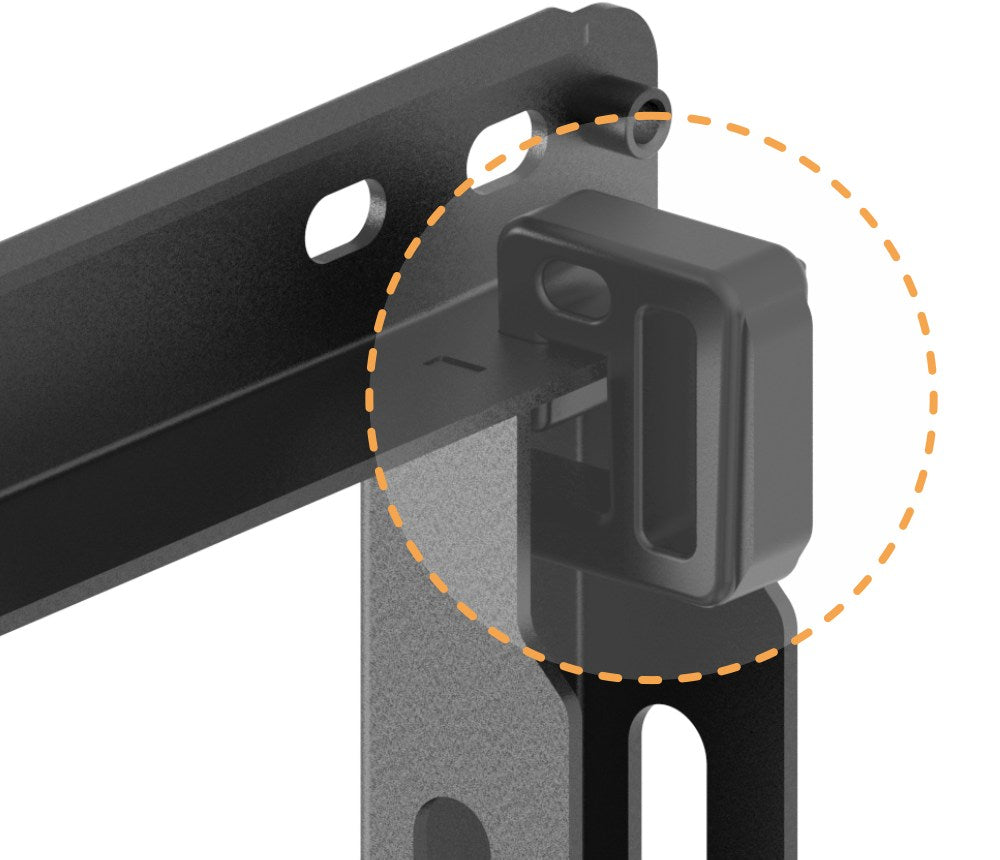

For example, the VSYS VSVW13-46T has 13.5 mm depth and 13 mm height micro-adjustment and moves between 120 mm and 325 mm from the wall, so one panel can be serviced without moving the others.

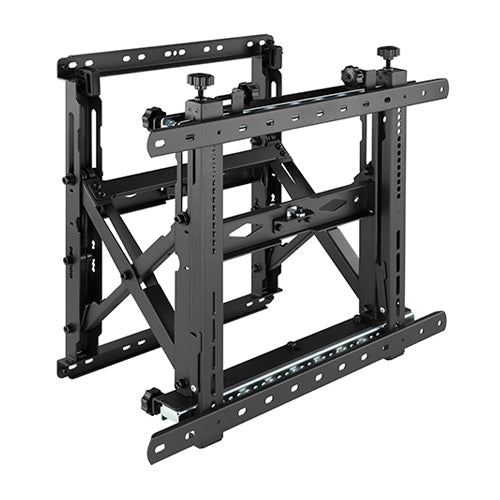

Video wall mounts are rated per screen, and in this collection the ratings run from 45 kg to 130 kg. The VSYS VSVW02-46T holds 45 kg, the VSYS VSVW13-46T holds 70 kg and the VSYS VSVW13-610T holds 130 kg per screen; VSYS tests the first two to four times and the VSVW13-610T to 2.5 times that load.

Compare the rating with the weight of one panel, and check separately that the wall can carry the whole array, since a 3 × 3 wall puts nine panels and nine mounts on the same surface.

The VSYS VSVW02-46T and VSVW13-46T fit VESA patterns from 200 × 200 mm up to 600 × 400 mm, which covers most 46-inch and 55-inch video wall panels. The VSYS VSVW13-610T takes patterns from 600 × 400 mm up to 1000 × 600 mm for displays of up to 110 inches.

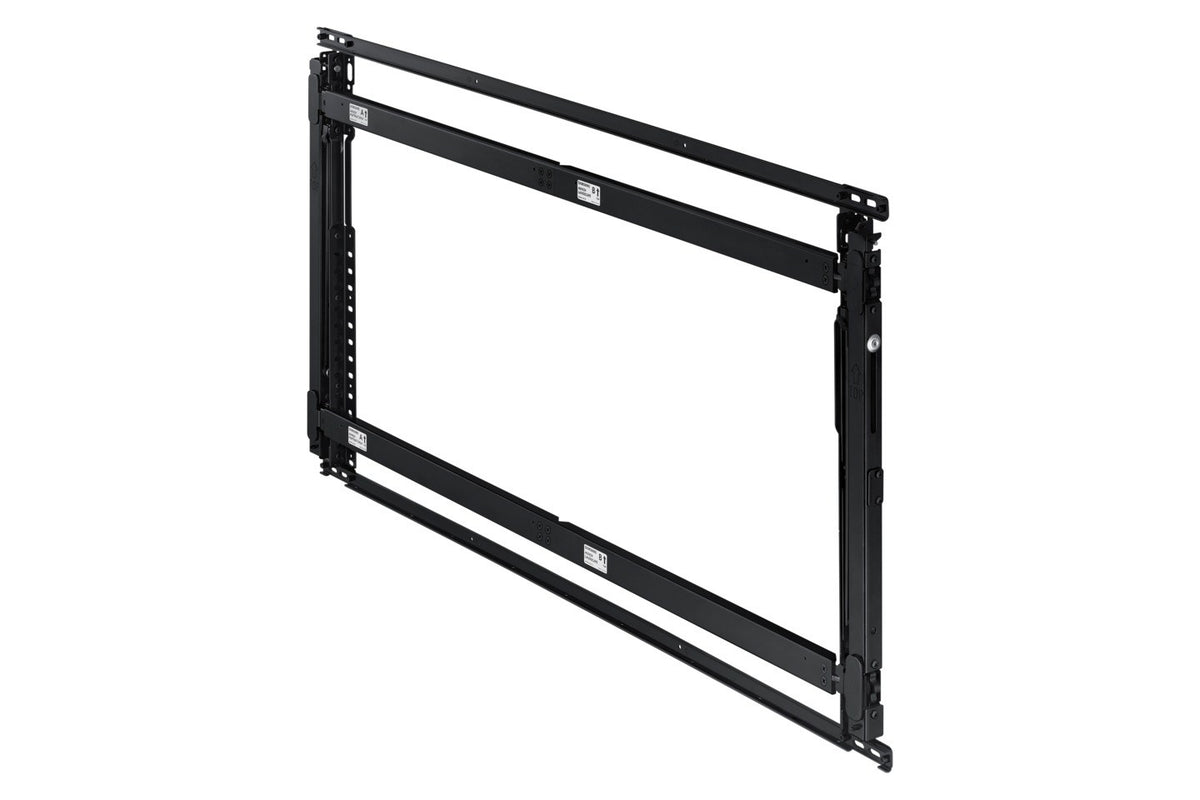

The Samsung WMN-55VD lists 400 × 400, 600 × 400 and 400 × 600 mm. Check the VESA pattern in the panel's own datasheet before choosing the mount.

A push-pull mount holds the panel on a spring or scissor mechanism: press the screen and it pops forward, press it again and it returns into line with its neighbours. This gives front access to the panel's inputs and power without taking the wall apart.

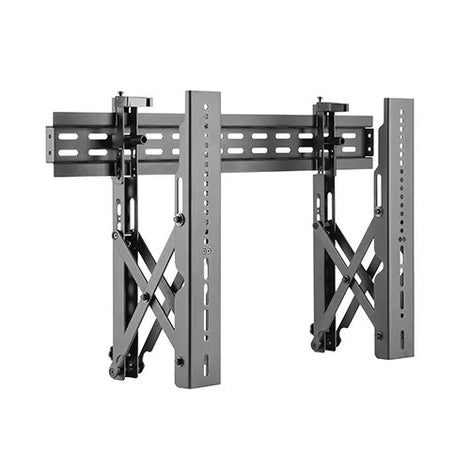

The VSYS VSVW02-46T opens from 68 mm to 215 mm from the wall, and the VSYS VSVW13-46T and VSVW13-610T from 120 mm to 325 mm, with 190 mm of pop-out on the VSVW13-610T.

Not directly with these mounts. VSYS specifies the VSVW02-46T, VSVW13-46T and VSVW13-610T for solid walls only, because a tiled wall concentrates the weight of many panels on one area.

For drywall or glazed partitions, a structural frame or floor-standing support has to be built first and checked for the full array weight plus the mounts. Include the wall construction in the project brief so the fixing method can be planned.

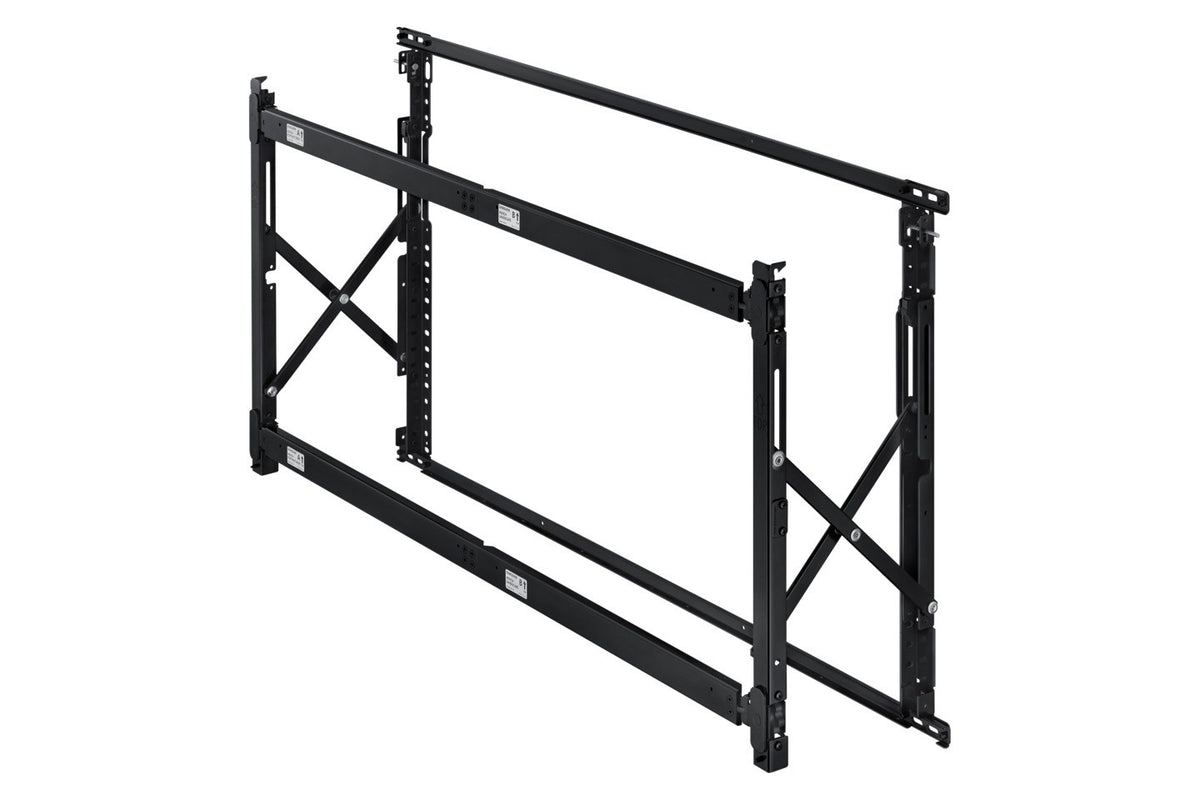

Yes, some can. VSYS lists portrait or landscape orientation for the VSVW02-46T and VSVW13-46T, and Samsung designed the WMN-55VD and WMN-46VD to support both landscape and portrait video walls, with a landscape size of 1022 × 539.8 mm and a portrait size of 576.6 × 539.8 mm for the WMN-55VD.

The panel must also be approved for portrait use by its manufacturer, so check the display manual before planning a portrait wall.

Panels are aligned with the mount's fine adjusters after they are hung. The VSYS VSVW13-46T and VSVW13-610T adjust 13.5 mm in depth and 13 mm in height and tilt from +2° to -3°, and the VSYS VSVW02-46T levels each screen by ±3°.

Samsung gives the WMN-55VD adjustment on three axes: up and down with rotational screws, left and right, and push-pull depth. Align the bottom row first, then work upwards.

Depth depends on the model. The Samsung WMN-55VD is 39 mm deep, the VSYS VSVW02-46T sits 68 mm from the wall when closed, and the VSYS VSVW13-46T and VSVW13-610T sit 120 mm from the wall when closed.

Add the panel's own depth to these figures to find how far the finished wall stands out, and keep enough space behind each panel for cables and ventilation.

Samsung designed the WMN-55VD for its 55-inch and the WMN-46VD for its 46-inch SMART Signage UD and UE series video wall panels, sized so the panels fit directly into the mount.

For other Samsung video wall series, confirm compatibility with Samsung before ordering, as the WMN-55VD lists VESA 400 × 400, 600 × 400 and 400 × 600 mm. The VSYS push-pull mounts in this collection are an alternative for current panels with a 600 × 400 mm pattern.

Five facts decide the mount: the panel model with its weight and VESA pattern; the layout, such as 3 × 3 landscape or 4 × 1 portrait; the wall construction; whether there is rear access; and the space available for cables behind each panel.

With these, the per-screen load rating, pop-out travel and depth can be matched, for example a 70 kg VSYS VSVW13-46T for 55-inch panels with a 600 × 400 mm pattern.
