Biamp DX-S8-W
Model 136831MPN DX-S8-W
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 8-inch LF / 1.25-inch HF
- Nominal continuous power: 175 W at 7 Ω
- Transformer taps: 70 V: 120/60/30/15 W; 100 V: 120/60/30 W
- Required high-pass filter: 60 Hz, 12 dB/octave
- Finish: White
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp DX-S8-W?

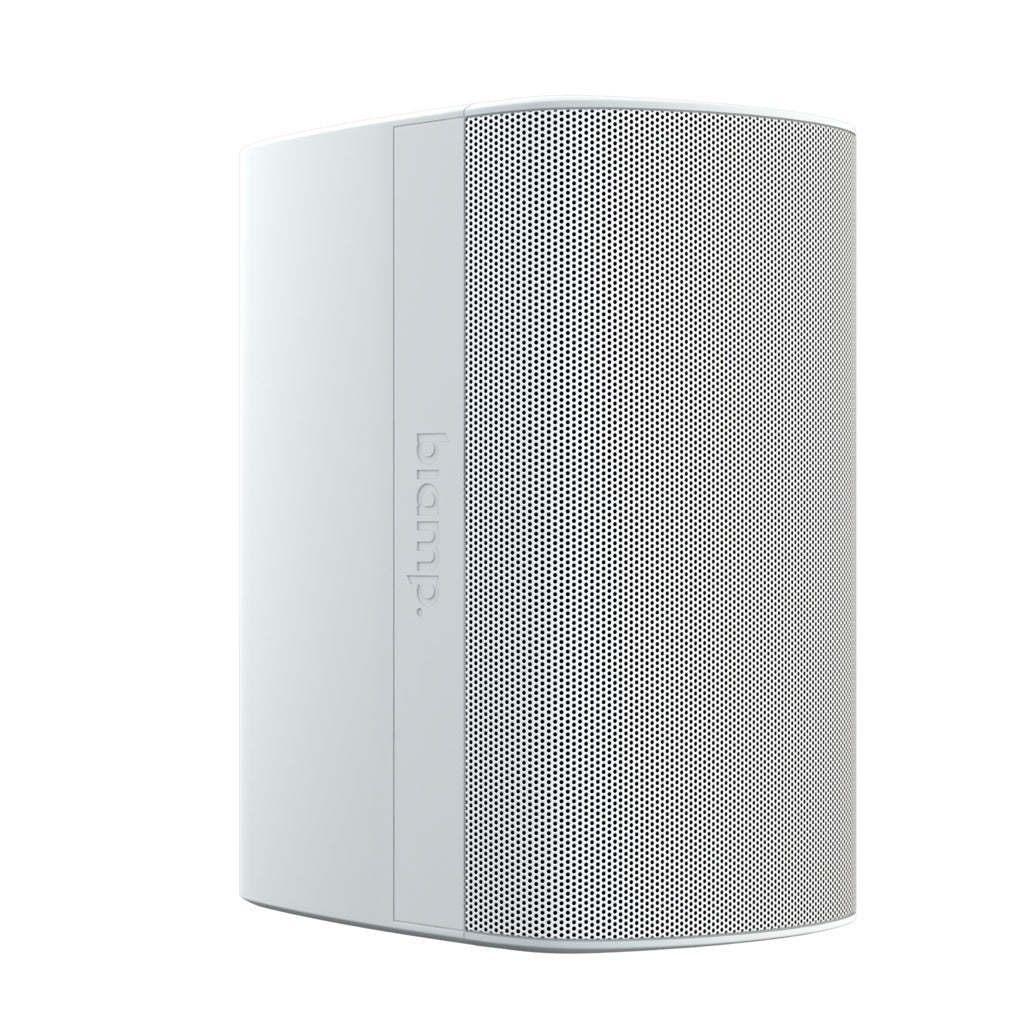

The Biamp Desono DX-S8-W is a white passive surface-mount coaxial speaker for installed commercial audio. Its 8-inch LF / 1.25-inch HF arrangement provides 110° × 110° nominal coverage for speech and music. The standard version uses a ClickMount pan-tilt bracket. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A passive installed-sound speaker with low-impedance and 70/100 V transformer operation, requiring external amplification and the specified DSP.
- Finish: White.
Use cases
Applications
-
Commercial speech and music
-
Retail and hospitality sound systems
-
Meeting and presentation spaces
Technical details
Technical Specifications
System
- Driver configuration
- 8-inch LF / 1.25-inch HF
- Driver configuration
- 8-inch LF / 1.25-inch HF.
Performance & Coverage
- Nominal coverage
- 110° × 110°
Power
- Nominal continuous power
- 175 W at 7 Ω
- Transformer taps
- 70 V: 120/60/30/15 W; 100 V: 120/60/30 W
- Recommended amplifier rating
- 175–350 W into 8 Ω
- Nominal continuous power
- 175 W at 7 Ω.
- Transformer taps
- 70 V: 120/60/30/15 W; 100 V: 120/60/30 W.
Physical
- Finish
- White
- Weight
- 7.71 kg, speaker only
- Mounting
- ClickMount pan-tilt bracket
General
- Model
- DX-S8-W
- Manufacturer part number
- DX-S8-W
- Required high-pass filter
- 60 Hz, 12 dB/octave
- Operating range (−10 dB)
- 62 Hz–18 kHz
- Environment
- IP54; use the specified weather-sealing method
- Required high-pass filter
- 60 Hz, 12 dB/octave.
In the box
What's Included
-
Desono DX-S8-W speaker quantity as quoted
-
ClickMount pan-tilt bracket
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera D 1200.4 4-Channel DSP Amplifier. A DSP amplifier option. Apply the manufacturer's loudspeaker settings, 60 Hz high-pass filter and suitable output limiting for the chosen speaker mode and load.

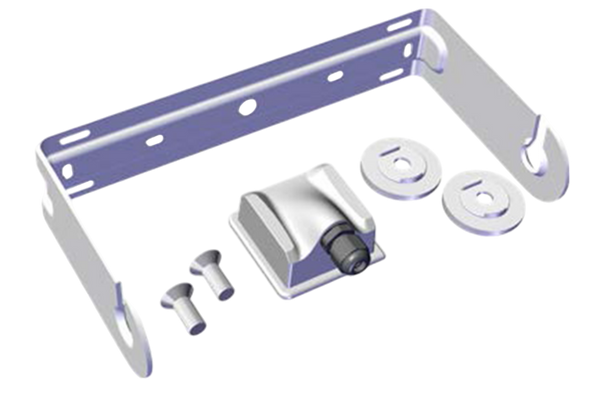

Biamp SPA-UBDX200-W Desono Speaker U-Bracket | White. An optional matching U-bracket and ClickPlug kit for installations requiring an alternative to the standard ClickMount.
Installation
Provide the specified 60 Hz, 12 dB/octave high-pass filter, loudspeaker DSP and output limits. Match the speaker mode and channel load to the amplifier. Check bracket orientation, structural fixings, secondary retention and weather-resistant connection sealing. Confirm individual-versus-pair ordering and the exact pack on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your DX-S8-W quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
