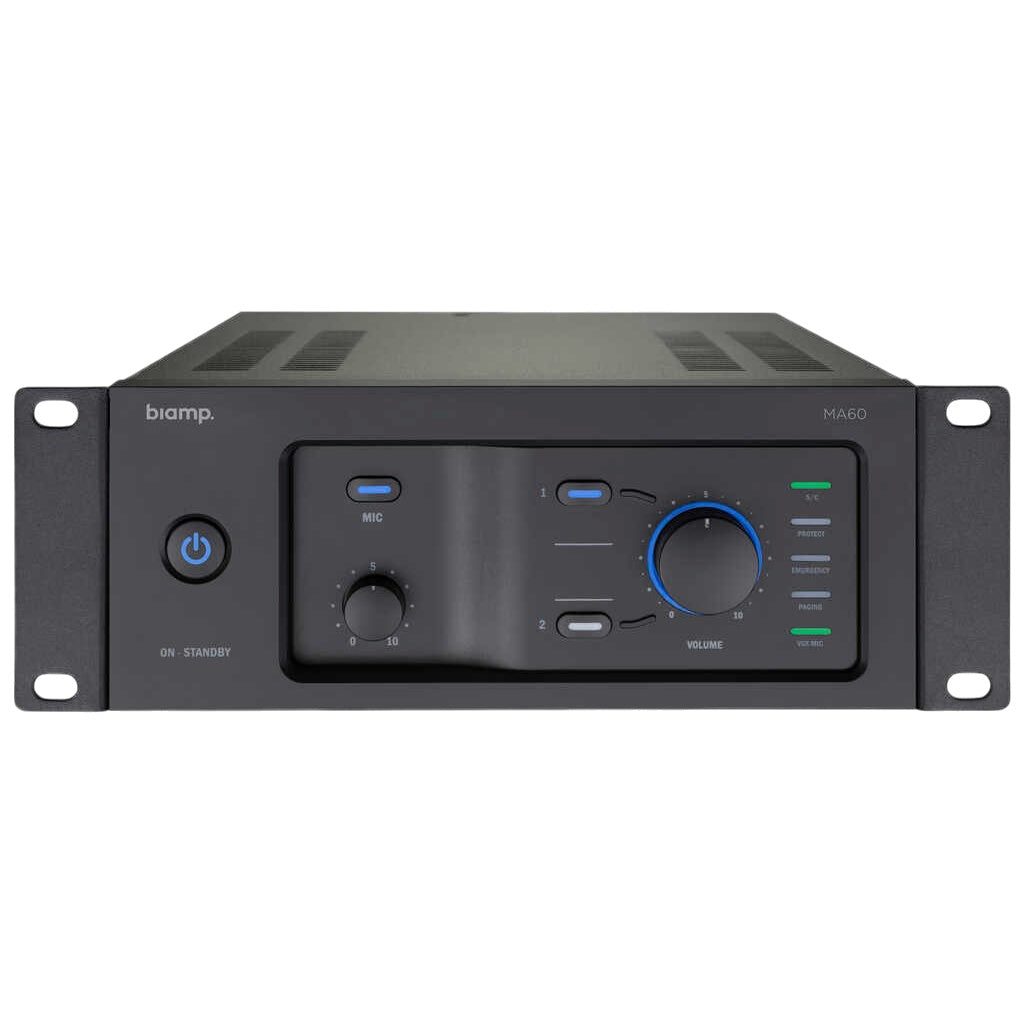

Biamp MA60 9.5-Inch Mixing Amplifier With Priority Routing
Model 129488MPN MA60
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Continuous output power: 60W, single channel
- Speaker output modes: 4 ohms or 70V/100V
- Amplifier topology: Class D
- Main source inputs: One mic/line input and two stereo line inputs, mono summed
- Priority routing: Four levels including emergency and paging
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp MA60?
The Biamp MA60 is a compact half-rack mixing amplifier delivering 60W through one output channel. It combines microphone and music-source mixing with four audio-priority levels for commercial installations that need straightforward everyday operation and paging priority. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
MA60 combines a mixer and Class D amplifier. It supports either a suitable 4-ohm load or a planned 70V/100V speaker line; connected speaker taps and total load must fit the 60W output.
Why this product
Key Benefits
-
Amplifier topology
Class D.
-
Main source inputs
One mic/line input and two stereo line inputs, mono summed.
-
Priority routing
Four levels including emergency and paging.
Use cases
Applications
-
Commercial AV installation requiring the documented MA60 function
-
UAE projects specified against the complete system design
Technical details
Technical Specifications
System
- Cooling
- Fanless convection
Power
- Continuous output power
- 60W, single channel
- Amplifier topology
- Class D
- Microphone power
- 48V phantom power on the mic/line input
- Continuous output power
- 60W, single channel.
Connectivity
- Speaker output modes
- 4 ohms or 70V/100V
- Main source inputs
- One mic/line input and two stereo line inputs, mono summed
- Speaker output modes
- 4 ohms or 70V/100V.
Physical
- Rack height
- 2RU; optional MA3060-19 rack accessory
General
- Model
- MA60
- Manufacturer part number
- MA60
- Priority routing
- Four levels including emergency and paging
- Priority override
- 24V output for compatible local-volume override
- Supply
- Internal universal power supply
In the box
What's Included
-
One Biamp MA60 mixing amplifier
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp KUBO3T-W 3" Cabinet Loudspeaker | White. 70V/100V-capable speaker option. Select appropriate transformer taps and quantities within the 60W channel budget, with headroom.
Biamp MA3060-19 19-Inch Rack Bracket Kit for MA30 and MA60. Dedicated rack-bracket kit for MA30 and MA60; confirm whether the regional supply already includes the required rack hardware.
Installation
Calculate the total transformer-tap load for a 70V/100V line and allow design headroom within the 60W output. For low-impedance operation, maintain a load of at least 4 ohms. Keep ventilation clear and allow at least 44mm free space above the amplifier as directed in the installation guide. Configure paging priority, phantom power and input levels for the connected devices.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your MA60 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
