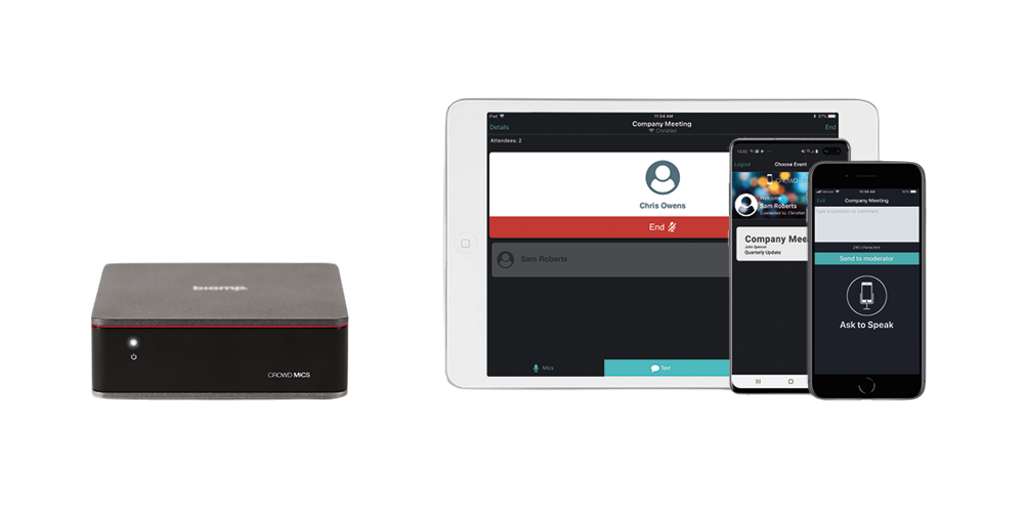

Biamp Crowd Mics ATOM Audience Participation Interface
Model 129520MPN 920-00516-00001
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Role: Crowd Mics AV interface and hardware host
- Audience interactions: Moderated smartphone microphone, text questions and polls
- Analogue audio outputs: 3.5mm unbalanced and Euroblock balanced
- Digital audio outputs: HDMI-embedded audio and USB audio
- Output operation: Audio outputs can be used simultaneously
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp Crowd Mics ATOM?
The Biamp Crowd Mics ATOM connects the Crowd Mics attendee and moderator interfaces to a venue’s AV system. It enables smartphone-based audience questions, moderated microphone participation and live polling for presentations, lectures and panel discussions. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
ATOM is the hardware host for Crowd Mics. Attendees use the participant app and venue Wi-Fi, while a moderator manages speaking requests, questions and polls. The room’s sound system and network are separate parts of the installation.
Why this product
Key Benefits
-
Role
Crowd Mics AV interface and hardware host.
-
Audience interactions
Moderated smartphone microphone, text questions and polls.
-
Digital audio outputs
HDMI-embedded audio and USB audio.
-
Output operation
Audio outputs can be used simultaneously.
Use cases
Applications
-
Commercial AV installation requiring the documented Crowd Mics ATOM function
-
UAE projects specified against the complete system design
Technical details
Technical Specifications
Audio
- Analogue audio outputs
- 3.5mm unbalanced and Euroblock balanced
- Digital audio outputs
- HDMI-embedded audio and USB audio
- Analogue audio outputs
- 3.5mm unbalanced and Euroblock balanced.
Connectivity
- Output operation
- Audio outputs can be used simultaneously
- Display connection
- HDMI for poll results or event content
- Network requirement
- Connection to the venue’s Wi-Fi network infrastructure
- Moderator interface
- Moderator app or supported web interface
Model & Identification
- Model
- Crowd Mics ATOM
- Manufacturer part number
- 920-00516-00001
General
- Role
- Crowd Mics AV interface and hardware host
- Audience interactions
- Moderated smartphone microphone, text questions and polls
In the box
What's Included
-
One Biamp Crowd Mics ATOM hardware host
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.2 Two-Channel Class D Amplifier. Analogue amplification option if the venue needs a separate amplifier. Match the balanced ATOM output to the amplifier’s input level and size the speaker load; existing venue amplification may already be suitable.
Installation
Review Wi-Fi coverage, client capacity, network access and the room-audio signal path with the venue IT and AV teams. Connect the chosen line-level or digital audio output to a suitable input, set gain structure and test moderated participation before the event. Check current app and operating-system requirements and any online-event licensing separately.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your Crowd Mics ATOM quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
