Biamp CM20DTS White
Model 129523MPN CM20DTS
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 4.25-inch LF and 1-inch soft-dome HF
- Continuous power handling: 40 W at 16 Ω
- Operating range: 90 Hz–22 kHz
- Nominal coverage: 150° × 100°
- Finish: White
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp CM20DTS White?
The Biamp Desono CM20DTS White is a passive ceiling loudspeaker for installed audio. It provides speech and music reproduction through a discreet ceiling grille. Selectable transformer taps support a planned 70/100 V speaker line or low-impedance operation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
The Biamp Desono CM20DTS White is a passive ceiling loudspeaker for installed audio. It provides speech and music reproduction through a discreet ceiling grille. Selectable transformer taps support a planned 70/100 V speaker line or low-impedance operation.
- Finish: White.
Use cases
Applications
-
Retail and hospitality sound systems
-
Commercial speech and background music
-
Meeting and presentation spaces
Technical details
Technical Specifications
System
- Driver configuration
- 4.25-inch LF and 1-inch soft-dome HF
- Driver configuration
- 4.25-inch LF and 1-inch soft-dome HF.
Performance & Coverage
- Nominal coverage
- 150° × 100°
- Nominal coverage
- 150° × 100°.
Power
- Continuous power handling
- 40 W at 16 Ω
- Transformer taps
- 70 V: 20/10/5/2.5/1.25 W; 100 V: 20/10/5/2.5 W
- Recommended amplifier rating
- 40–80 W at 16 Ω
- Continuous power handling
- 40 W at 16 Ω.
Physical
- Finish
- White
- Dimensions
- 84 mm deep × 223 mm diameter
- Weight
- 2 kg
General
- Model
- CM20DTS White
- Manufacturer part number
- CM20DTS
- Operating range
- 90 Hz–22 kHz
- Ceiling cut-out
- 193 mm
- Environment
- Indoor
- Operating range
- 90 Hz–22 kHz.
In the box
What's Included
-
CM20DTS white loudspeaker quantity as quoted
-
White grille
-

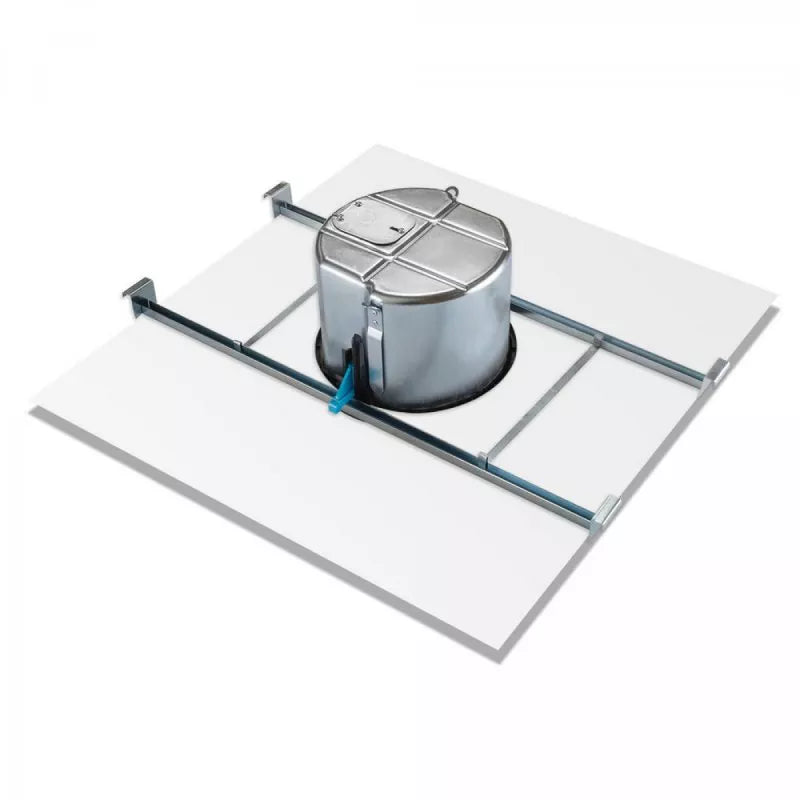

Tile rails
-
Tile bridge / support spacers
-
Cut-out template
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.2 Two-Channel Class D Amplifier. An amplifier option for the selected 70/100 V transformer taps. Size each channel from the combined tap load, retain power headroom and apply the specified DSP and output limits.
Installation
Match the amplifier mode and load, loudspeaker output limits and system processing before commissioning. Confirm ceiling cut-out, clearance, tile supports and secondary retention. Confirm speaker quantity and individual-versus-pack pricing on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your CM20DTS White quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
