Biamp DP6 White
Model 52731MPN DP6
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 6.5-inch LF and 1-inch HF compression driver
- Continuous power handling: 100 W at 8 Ω
- Operating range: 65 Hz–22 kHz
- Nominal coverage: 115° conical, 1–6 kHz
- Finish: White
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp DP6 White?
The Biamp Desono DP6 White is a passive pendant loudspeaker for installed audio. The suspended form suits open ceilings in retail, hospitality and commercial spaces. Selectable transformer taps support a planned 70/100 V speaker line or low-impedance operation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
The Biamp Desono DP6 White is a passive pendant loudspeaker for installed audio. The suspended form suits open ceilings in retail, hospitality and commercial spaces. Selectable transformer taps support a planned 70/100 V speaker line or low-impedance operation.
- Finish: White.
Use cases
Applications
-
Retail and hospitality sound systems
-
Commercial speech and background music
-
Meeting and presentation spaces
Technical details
Technical Specifications
System
- Driver configuration
- 6.5-inch LF and 1-inch HF compression driver
- Driver configuration
- 6.5-inch LF and 1-inch HF compression driver.
Performance & Coverage
- Nominal coverage
- 115° conical, 1–6 kHz
- Nominal coverage
- 115° conical, 1–6 kHz.
Power
- Continuous power handling
- 100 W at 8 Ω
- Transformer taps
- 70 V: 60/30/15/7.5 W; 100 V: 60/30/15 W
- Continuous power handling
- 100 W at 8 Ω.
Physical
- Finish
- White
- Dimensions
- 374.2 mm high × 285 mm diameter
- Weight
- 5.4 kg
General
- Model
- DP6 White
- Manufacturer part number
- DP6
- Operating range
- 65 Hz–22 kHz
- Signal processing
- 65 Hz high-pass high-pass filtering; configure the full system DSP
- Environment
- Indoor
- Operating range
- 65 Hz–22 kHz.
In the box
What's Included
-
DP6 white loudspeaker quantity as quoted
-
Two PHK-15 suspension cable kits
-
Gripple cable fasteners
-
Rear cover or end cap
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.2 Two-Channel Class D Amplifier. An amplifier option for the selected 70/100 V transformer taps. Size each channel from the combined tap load, retain power headroom and apply the specified DSP and output limits.

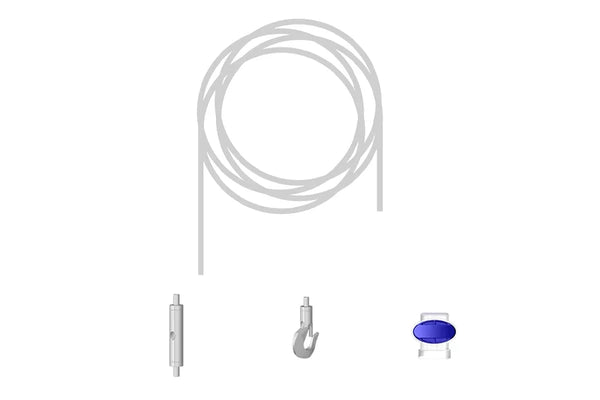

Biamp Desono MC-PHK16-12PK 16-Foot Pendant Hang Kit | White. An optional Magic Cable hanging-kit alternative documented for compatible snap-hook pendant speakers. The standard speaker already includes suspension cables; specify extra kits only when required.
Installation
Match the amplifier mode and load, loudspeaker output limits and 65 Hz high-pass filtering before commissioning. Secure the primary and secondary suspension to suitable structural points; use the documented static indoor suspension method. Confirm speaker quantity and individual-versus-pack pricing on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your DP6 White quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
