Biamp DX-IC10-W
Model 136822MPN DX-IC10-W
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 10-inch LF / 1.25-inch HF
- Nominal continuous power: 240 W at 6.5 Ω
- Transformer taps: 70 V: 200/100/50/25 W; 100 V: 200/100/50 W
- Required high-pass filter: 75 Hz, 12 dB/octave
- Finish: White
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp DX-IC10-W?

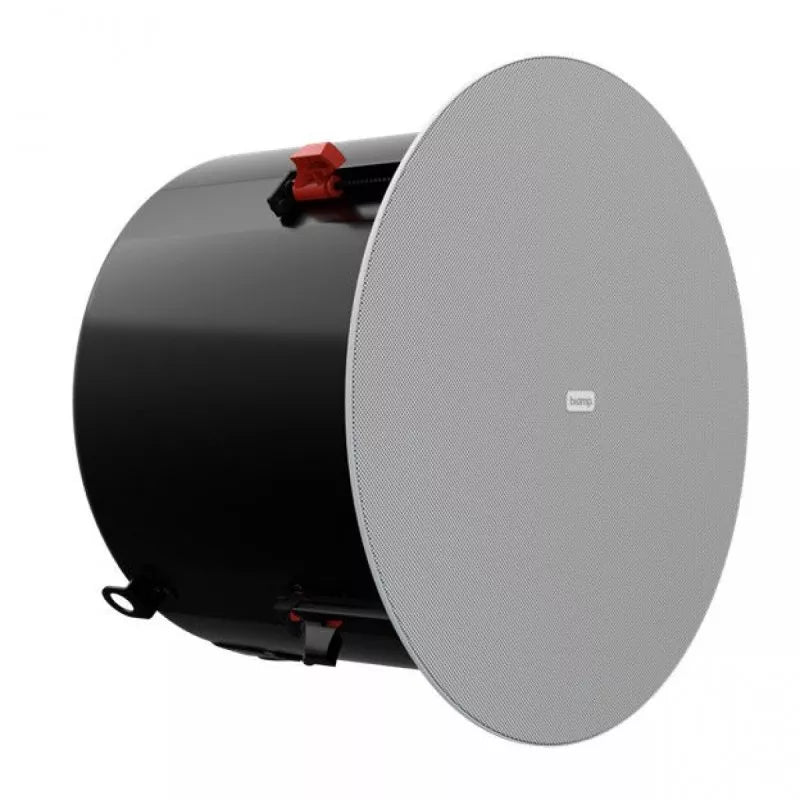

The Biamp Desono DX-IC10-W is a white passive ceiling-mount coaxial speaker for installed commercial audio. Its 10-inch LF / 1.25-inch HF arrangement provides 115° conical nominal coverage for speech and music. SpringLock clamps and a magnetic grille support a discreet ceiling finish. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A passive installed-sound speaker with low-impedance and 70/100 V transformer operation, requiring external amplification and the specified DSP.
- Finish: White.
Use cases
Applications
-
Commercial speech and music
-
Retail and hospitality sound systems
-
Meeting and presentation spaces
Technical details
Technical Specifications
System
- Driver configuration
- 10-inch LF / 1.25-inch HF
- Driver configuration
- 10-inch LF / 1.25-inch HF.
Performance & Coverage
- Nominal coverage
- 115° conical
Power
- Nominal continuous power
- 240 W at 6.5 Ω
- Transformer taps
- 70 V: 200/100/50/25 W; 100 V: 200/100/50 W
- Recommended amplifier rating
- 240–480 W into 8 Ω
- Nominal continuous power
- 240 W at 6.5 Ω.
- Transformer taps
- 70 V: 200/100/50/25 W; 100 V: 200/100/50 W.
Physical
- Finish
- White
- Weight
- 10.73 kg
- Enclosure size
- 394 mm diameter × 263 mm depth
- Mounting
- SpringLock ceiling clamps
General
- Model
- DX-IC10-W
- Manufacturer part number
- DX-IC10-W
- Required high-pass filter
- 75 Hz, 12 dB/octave
- Operating range (−10 dB)
- 65 Hz–20 kHz
- Environment
- Indoor
- Required high-pass filter
- 75 Hz, 12 dB/octave.
In the box
What's Included
-
Desono DX-IC10-W speaker quantity as quoted
-
C-ring supporting plate
-
Tile support bridge rails
-
White grille
-
Paint mask
-
Cut-out template
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera D 1200.4 4-Channel DSP Amplifier. A DSP amplifier option. Apply the manufacturer's loudspeaker settings, 75 Hz high-pass filter and suitable output limiting for the chosen speaker mode and load.

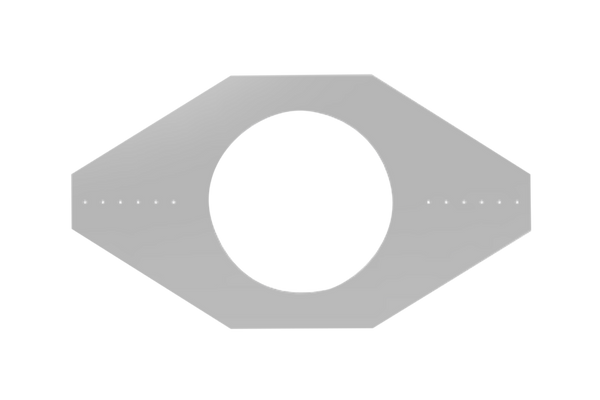

Biamp SPA-NC600 Desono New Construction Bracket. The matching optional new-construction bracket for this ceiling speaker.
Biamp Desono DX-IC10SUB-W 10-Inch Ceiling Subwoofer | White. An optional ceiling subwoofer. Specify separate amplification, crossover and DSP requirements for the complete system.
Installation
Provide the specified 75 Hz, 12 dB/octave high-pass filter, loudspeaker DSP and output limits. Match the speaker mode and channel load to the amplifier. Check ceiling cut-out, clearance, support rails and structural safety attachment. Confirm individual-versus-pair ordering and the exact pack on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your DX-IC10-W quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
