Biamp DX-IC4-W
Model 136824MPN DX-IC4-W
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 4.5-inch LF / 0.75-inch HF
- Nominal continuous power: 60 W at 8 Ω
- Transformer taps: 70 V: 30/15/7.5/3.75 W; 100 V: 30/15/7.5 W
- Required high-pass filter: 70 Hz, 12 dB/octave
- Finish: White
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp DX-IC4-W?

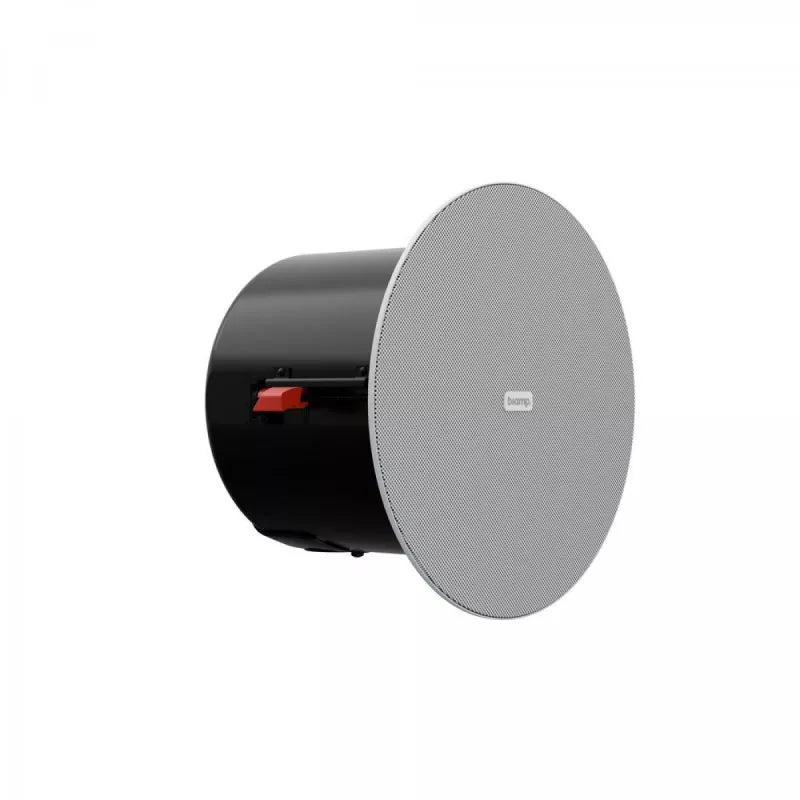

The Biamp Desono DX-IC4-W is a white passive ceiling-mount coaxial speaker for installed commercial audio. Its 4.5-inch LF / 0.75-inch HF arrangement provides 165° conical nominal coverage for speech and music. SpringLock clamps and a magnetic grille support a discreet ceiling finish. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A passive installed-sound speaker with low-impedance and 70/100 V transformer operation, requiring external amplification and the specified DSP.
- Finish: White.
Use cases
Applications
-
Commercial speech and music
-
Retail and hospitality sound systems
-
Meeting and presentation spaces
Technical details
Technical Specifications
System
- Driver configuration
- 4.5-inch LF / 0.75-inch HF
- Driver configuration
- 4.5-inch LF / 0.75-inch HF.
Performance & Coverage
- Nominal coverage
- 165° conical
Power
- Nominal continuous power
- 60 W at 8 Ω
- Transformer taps
- 70 V: 30/15/7.5/3.75 W; 100 V: 30/15/7.5 W
- Recommended amplifier rating
- 60–120 W into 8 Ω
- Nominal continuous power
- 60 W at 8 Ω.
- Transformer taps
- 70 V: 30/15/7.5/3.75 W; 100 V: 30/15/7.5 W.
Physical
- Finish
- White
- Weight
- 3.12 kg
- Enclosure size
- 258 mm diameter × 176 mm depth
- Mounting
- SpringLock ceiling clamps
General
- Model
- DX-IC4-W
- Manufacturer part number
- DX-IC4-W
- Required high-pass filter
- 70 Hz, 12 dB/octave
- Operating range (−10 dB)
- 85 Hz–19 kHz
- Environment
- Indoor
- Required high-pass filter
- 70 Hz, 12 dB/octave.
In the box
What's Included
-
Desono DX-IC4-W speaker quantity as quoted
-
C-ring supporting plate
-
Tile support bridge rails
-
White grille
-
Paint mask
-
Cut-out template
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.4 Four-Channel 300W Amplifier. An amplifier option for 70/100 V operation. Select the correct transformer tap and keep the total speaker load within each channel's rating. Use upstream DSP for the required 70 Hz high-pass filter.
Biamp Desono DX-IC10SUB-W 10-Inch Ceiling Subwoofer | White. An optional ceiling subwoofer. Specify separate amplification, crossover and DSP requirements for the complete system.
Installation
Provide the specified 70 Hz, 12 dB/octave high-pass filter, loudspeaker DSP and output limits. Match the speaker mode and channel load to the amplifier. Check ceiling cut-out, clearance, support rails and structural safety attachment. Confirm individual-versus-pair ordering and the exact pack on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your DX-IC4-W quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
