Biamp DX-IC4LP-W
Model 136823MPN DX-IC4LP-W
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 4.5-inch LF / 0.75-inch HF
- Nominal continuous power: 60 W at 8 Ω
- Transformer taps: 70 V: 30/15/7.5/3.75 W; 100 V: 30/15/7.5 W
- Required high-pass filter: 135 Hz, 12 dB/octave
- Finish: White
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp DX-IC4LP-W?

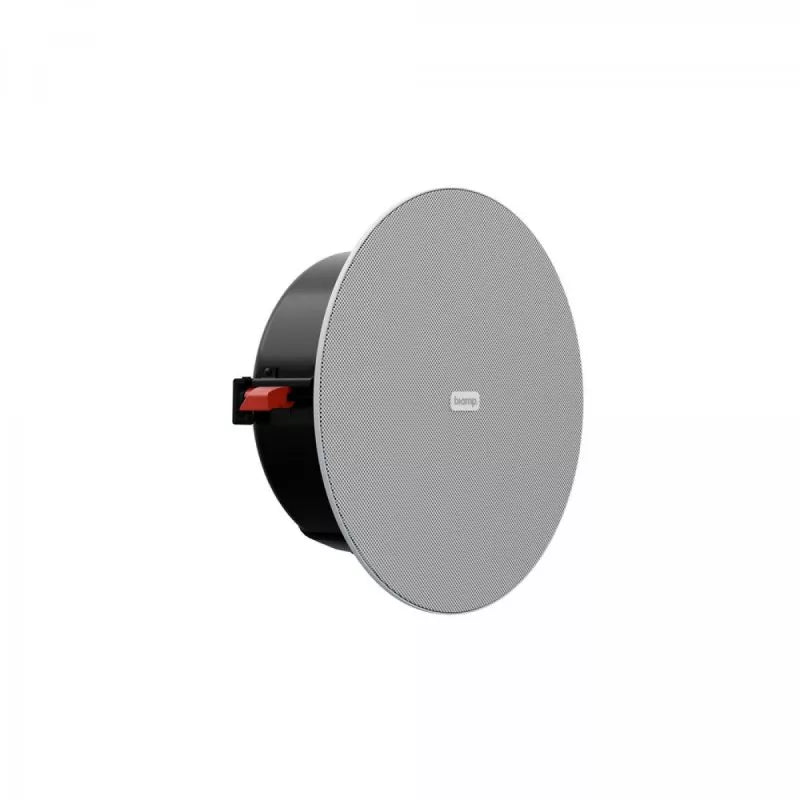

The Biamp Desono DX-IC4LP-W is a white passive ceiling-mount coaxial speaker for installed commercial audio. Its 4.5-inch LF / 0.75-inch HF arrangement provides 165° conical nominal coverage for speech and music. The 97 mm enclosure depth suits projects with restricted ceiling space. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A passive installed-sound speaker with low-impedance and 70/100 V transformer operation, requiring external amplification and the specified DSP.
- Finish: White.
Use cases
Applications
-
Commercial speech and music
-
Retail and hospitality sound systems
-
Meeting and presentation spaces
Technical details
Technical Specifications
System
- Driver configuration
- 4.5-inch LF / 0.75-inch HF
- Driver configuration
- 4.5-inch LF / 0.75-inch HF.
Performance & Coverage
- Nominal coverage
- 165° conical
Power
- Nominal continuous power
- 60 W at 8 Ω
- Transformer taps
- 70 V: 30/15/7.5/3.75 W; 100 V: 30/15/7.5 W
- Recommended amplifier rating
- 60–120 W into 8 Ω
- Nominal continuous power
- 60 W at 8 Ω.
- Transformer taps
- 70 V: 30/15/7.5/3.75 W; 100 V: 30/15/7.5 W.
Physical
- Finish
- White
- Weight
- 2.66 kg
- Enclosure size
- 258 mm diameter × 97 mm depth
- Mounting
- SpringLock ceiling clamps
General
- Model
- DX-IC4LP-W
- Manufacturer part number
- DX-IC4LP-W
- Required high-pass filter
- 135 Hz, 12 dB/octave
- Operating range (−10 dB)
- 103 Hz–19.5 kHz
- Environment
- Indoor
- Required high-pass filter
- 135 Hz, 12 dB/octave.
In the box
What's Included
-
Desono DX-IC4LP-W speaker quantity as quoted
-
C-ring supporting plate
-
Tile support bridge rails
-
White grille
-
Paint mask
-
Cut-out template
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.4 Four-Channel 300W Amplifier. An amplifier option for 70/100 V operation. Select the correct transformer tap and keep the total speaker load within each channel's rating. Use upstream DSP for the required 135 Hz high-pass filter.
Biamp Desono DX-IC10SUB-W 10-Inch Ceiling Subwoofer | White. An optional ceiling subwoofer. Specify separate amplification, crossover and DSP requirements for the complete system.
Installation
Provide the specified 135 Hz, 12 dB/octave high-pass filter, loudspeaker DSP and output limits. Match the speaker mode and channel load to the amplifier. Check ceiling cut-out, clearance, support rails and structural safety attachment. Confirm individual-versus-pair ordering and the exact pack on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your DX-IC4LP-W quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
