Biamp DX-S5-B
Model 136828MPN DX-S5-B
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 5-inch LF / 1-inch HF
- Nominal continuous power: 100 W at 6 Ω
- Transformer taps: 70 V: 60/30/15/7.5 W; 100 V: 60/30/15 W
- Required high-pass filter: 75 Hz, 12 dB/octave
- Finish: Black
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp DX-S5-B?

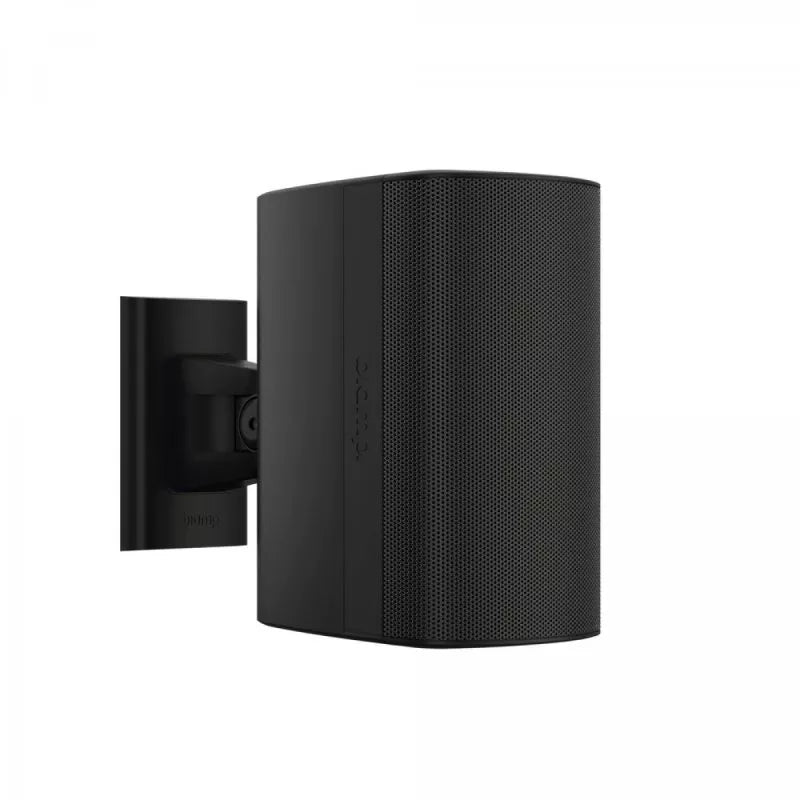

The Biamp Desono DX-S5-B is a black passive surface-mount coaxial speaker for installed commercial audio. Its 5-inch LF / 1-inch HF arrangement provides 130° × 125° nominal coverage for speech and music. The standard version uses a ClickMount pan-tilt bracket. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A passive installed-sound speaker with low-impedance and 70/100 V transformer operation, requiring external amplification and the specified DSP.
- Finish: Black.
Use cases
Applications
-
Commercial speech and music
-
Retail and hospitality sound systems
-
Meeting and presentation spaces
Technical details
Technical Specifications
System
- Driver configuration
- 5-inch LF / 1-inch HF
- Driver configuration
- 5-inch LF / 1-inch HF.
Performance & Coverage
- Nominal coverage
- 130° × 125°
Power
- Nominal continuous power
- 100 W at 6 Ω
- Transformer taps
- 70 V: 60/30/15/7.5 W; 100 V: 60/30/15 W
- Recommended amplifier rating
- 100–200 W into 8 Ω
- Nominal continuous power
- 100 W at 6 Ω.
- Transformer taps
- 70 V: 60/30/15/7.5 W; 100 V: 60/30/15 W.
Physical
- Finish
- Black
- Weight
- 4.7 kg, speaker only
- Mounting
- ClickMount pan-tilt bracket
General
- Model
- DX-S5-B
- Manufacturer part number
- DX-S5-B
- Required high-pass filter
- 75 Hz, 12 dB/octave
- Operating range (−10 dB)
- 75 Hz–20 kHz
- Environment
- IP54; use the specified weather-sealing method
- Required high-pass filter
- 75 Hz, 12 dB/octave.
In the box
What's Included
-
Desono DX-S5-B speaker quantity as quoted
-
ClickMount pan-tilt bracket
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.4 Four-Channel 300W Amplifier. An amplifier option for 70/100 V operation. Select the correct transformer tap and keep the total speaker load within each channel's rating. Use upstream DSP for the required 75 Hz high-pass filter.
Biamp SPA-UBDX100-B Desono Speaker U-Bracket | Black. An optional matching U-bracket and ClickPlug kit for installations requiring an alternative to the standard ClickMount.
Installation
Provide the specified 75 Hz, 12 dB/octave high-pass filter, loudspeaker DSP and output limits. Match the speaker mode and channel load to the amplifier. Check bracket orientation, structural fixings, secondary retention and weather-resistant connection sealing. Confirm individual-versus-pair ordering and the exact pack on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your DX-S5-B quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
