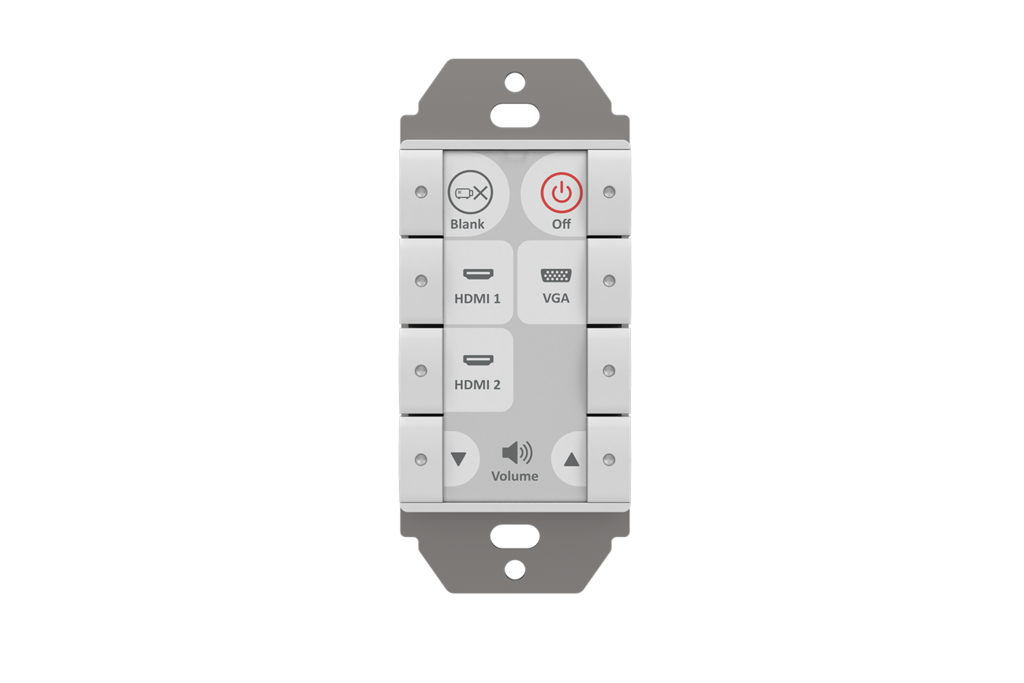

Biamp Impera Echo Plus 8USW 8-Button Control Pad | White
Model 136883MPN 920-01884-20001
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Configurable buttons: 8
- Controller: Onboard; no external processor required
- Ethernet device control: Up to two third-party devices
- Serial / IR: One bidirectional RS-232/IR port; one unidirectional RS-232/IR port
- GPIO ports: 3
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp Echo Plus 8USW?
The Biamp Impera Echo Plus 8USW is a white eight-button room-control pad with an onboard controller. It combines Ethernet, serial/IR and GPIO connections for simplifying everyday AV tasks in meeting rooms and classrooms, without requiring a separate external control processor. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
This US-format programmable pad sends configured commands to compatible third-party devices. The buttons and connected-device behaviour are set during system configuration; it does not provide video switching or audio amplification.
Why this product
Key Benefits
-
Controller
Onboard; no external processor required.
-
Ethernet device control
Up to two third-party devices.
-
Serial / IR
One bidirectional RS-232/IR port; one unidirectional RS-232/IR port.
Use cases
Applications
-
Meeting-room display, source and peripheral control
-
Classroom AV operation through configurable physical buttons
Technical details
Technical Specifications
Control & Interface
- Configurable buttons
- 8
- Configurable buttons
- 8.
Connectivity
- Ethernet device control
- Up to two third-party devices
- GPIO ports
- 3
- Configuration interface
- Micro USB
- GPIO ports
- 3.
Model & Identification
- Model
- Echo Plus 8USW
- Manufacturer part number
- 920-01884-20001
General
- Controller
- Onboard; no external processor required
- Serial / IR
- One bidirectional RS-232/IR port; one unidirectional RS-232/IR port
- Expansion bus
- Up to two additional keypads or port expanders
- Regional format / finish
- US / White
- Maintenance
- Email notifications for supported lamp/filter warnings
In the box
What's Included
-
One Biamp Impera Echo Plus 8USW white control pad
Installation
Installation & Mounting
Recommended Compatible Equipment

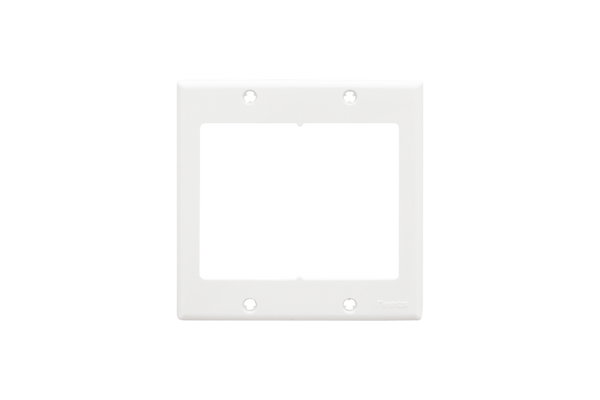

Biamp WP-2G-US-W 2-Gang US Wall Plate | White. Manufacturer-listed US wall-plate option; check the wall box and mounting arrangement.

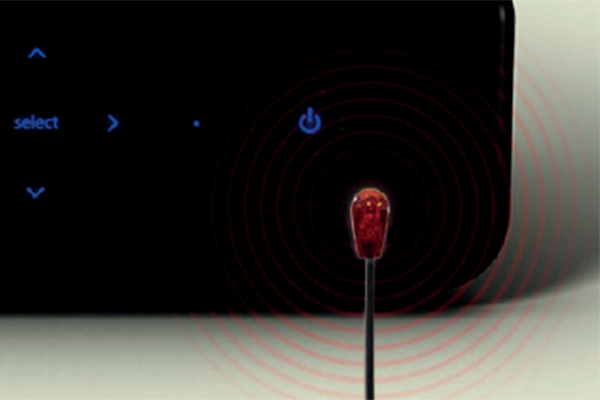

Biamp ACC-C-IRE IR Emitter. IR emitter option for equipment controlled through the pad’s IR output; confirm connector and programmed commands.
Installation
Check the US-format wall box and plate fit, supported device command sets, power arrangement and cable routes. Configure the buttons and device drivers for the actual AV equipment, test command feedback where available and document the final control behaviour.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your Echo Plus 8USW quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
