Biamp ENT-FR Black
Model 53503MPN ENT-FR
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: Six 3.5-inch LF, eighteen 2.35-inch MF and forty-two 1-inch HF elements
- Continuous power handling: 600 W at 12 Ω
- Operating range: 200 Hz–20 kHz
- Nominal coverage: 120° horizontal; 12° or 6° vertical by configuration
- Finish: Black
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp ENT-FR Black?
The Biamp Desono ENT-FR Black is a passive modular column loudspeaker for installed audio. Its controlled vertical dispersion helps direct speech and music toward listeners in reverberant venues. It requires a suitable 12 Ω amplifier arrangement and system processing. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
The Biamp Desono ENT-FR Black is a passive modular column loudspeaker for installed audio. Its controlled vertical dispersion helps direct speech and music toward listeners in reverberant venues. It requires a suitable 12 Ω amplifier arrangement and system processing.
- Driver configuration: Six 3.5-inch LF, eighteen 2.35-inch MF and forty-two 1-inch HF elements.
- Finish: Black.
Use cases
Applications
-
Houses of worship and auditoria
-
Conference and public presentation spaces
-
Designed delay and fill systems
Technical details
Technical Specifications
System
- Driver configuration
- Six 3.5-inch LF, eighteen 2.35-inch MF and forty-two 1-inch HF elements
Performance & Coverage
- Nominal coverage
- 120° horizontal; 12° or 6° vertical by configuration
- Nominal coverage
- 120° horizontal; 12° or 6° vertical by configuration.
Power
- Continuous power handling
- 600 W at 12 Ω
- Recommended amplifier rating
- 600–1200 W at 12 Ω
- Continuous power handling
- 600 W at 12 Ω.
Physical
- Finish
- Black
- Dimensions
- 1129 × 140 × 187 mm
- Weight
- 18.1 kg
General
- Model
- ENT-FR Black
- Manufacturer part number
- ENT-FR
- Operating range
- 200 Hz–20 kHz
- Signal processing
- 200 Hz, 12 dB/octave high-pass filtering; configure the full system DSP
- Environment
- IP54; follow the specified outdoor installation method
- Operating range
- 200 Hz–20 kHz.
In the box
What's Included
-
ENT-FR black loudspeaker quantity as quoted
-
T-bar mounting bracket
-
Input wiring cover
-
Top connector cover
Installation
Installation & Mounting
Recommended Compatible Equipment

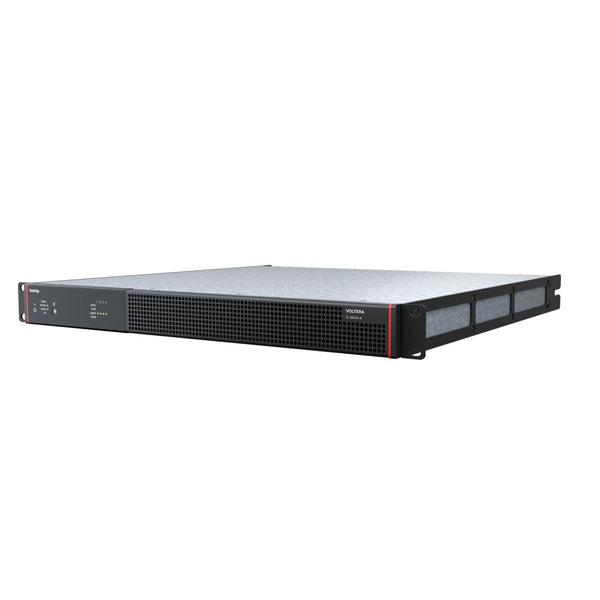

Biamp Voltera D 4800.4 Networked DSP Amplifier With AVB. An amplifier option for a professionally engineered array. Verify output voltage and impedance for every column, the complete series/parallel load, manufacturer DSP and limiting; do not apply the amplifier's full available output without those settings.
Biamp ENT-LF Low Frequency Column Line Array Speaker System | Black. The matching ENT-LF extension column for extending the array's lower-frequency pattern control.
Installation
Match the amplifier mode and load, loudspeaker output limits and 200 Hz, 12 dB/octave filtering before commissioning. Verify mounting strength, bracket orientation and secondary retention. A complete modular array requires an engineered configuration and manufacturer DSP settings. Confirm speaker quantity and individual-versus-pack pricing on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your ENT-FR Black quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
