Biamp ENT220 Black
Model 53493MPN ENT220
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: Twenty 80 mm LF drivers and four 3-element CRE HF arrays
- Continuous power handling: 500 W at 8 Ω
- Operating range: 80 Hz–22 kHz
- Nominal coverage: 140° × 15°
- Finish: Black
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp ENT220 Black?

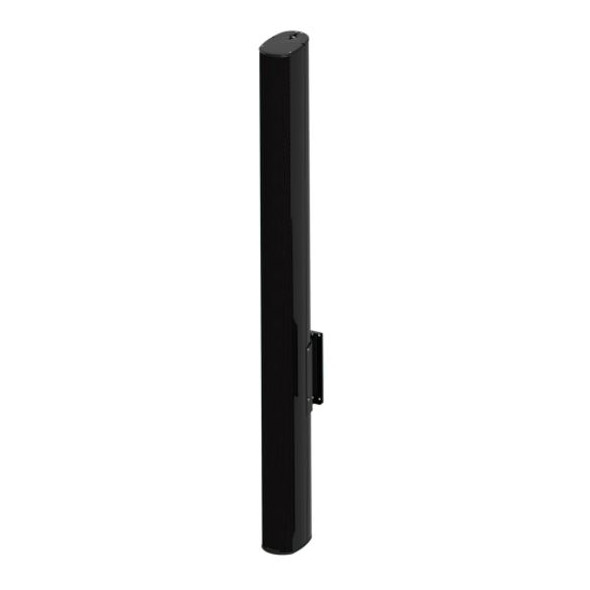

The Biamp Desono ENT220 Black is a passive column-array loudspeaker for installed audio. Its controlled vertical dispersion helps direct speech and music toward listeners in reverberant venues. Selectable transformer taps support a planned 70/100 V speaker line or low-impedance operation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
The Biamp Desono ENT220 Black is a passive column-array loudspeaker for installed audio. Its controlled vertical dispersion helps direct speech and music toward listeners in reverberant venues. Selectable transformer taps support a planned 70/100 V speaker line or low-impedance operation.
- Driver configuration: Twenty 80 mm LF drivers and four 3-element CRE HF arrays.
- Finish: Black.
Use cases
Applications
-
Houses of worship and auditoria
-
Conference and public presentation spaces
-
Designed delay and fill systems
Technical details
Technical Specifications
System
- Driver configuration
- Twenty 80 mm LF drivers and four 3-element CRE HF arrays
Performance & Coverage
- Nominal coverage
- 140° × 15°
- Nominal coverage
- 140° × 15°.
Power
- Continuous power handling
- 500 W at 8 Ω
- Transformer taps
- 70 V: 120/60/30/15/7.5 W; 100 V: 120/60/30/15 W
- Recommended amplifier rating
- 500–1000 W at 8 Ω
- Continuous power handling
- 500 W at 8 Ω.
Physical
- Finish
- Black
- Dimensions
- 1643 × 118 × 190 mm
- Weight
- 18 kg
General
- Model
- ENT220 Black
- Manufacturer part number
- ENT220
- Operating range
- 80 Hz–22 kHz
- Signal processing
- 80 Hz, 24 dB/octave high-pass filtering; configure the full system DSP
- Environment
- IP54; follow the specified outdoor installation method
- Operating range
- 80 Hz–22 kHz.
In the box
What's Included
-
ENT220 black loudspeaker quantity as quoted
-
Pan-tilt mounting bracket
-
Input wiring rain cover
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera D 2400.4 2400W Networked Power Amplifier. An amplifier option for the selected 70/100 V transformer taps. Size each channel from the combined tap load, retain power headroom and apply the specified DSP and output limits.
Installation
Match the amplifier mode and load, loudspeaker output limits and 80 Hz, 24 dB/octave filtering before commissioning. Verify mounting strength, bracket orientation and secondary retention. Confirm speaker quantity and individual-versus-pack pricing on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your ENT220 Black quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
