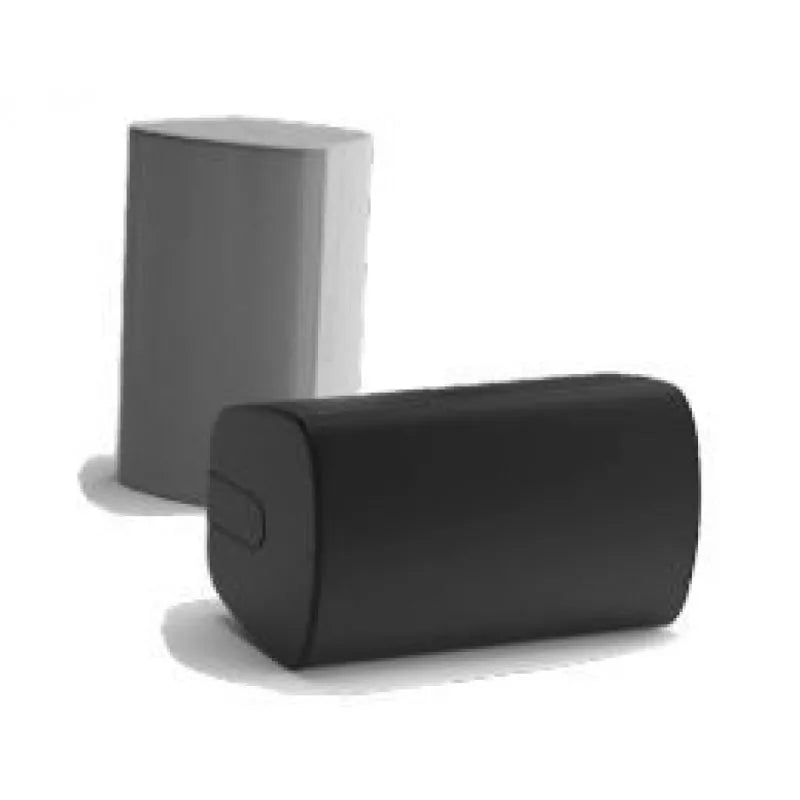

Biamp Desono EX-S10SUB-CM-W 10-Inch Surface-Mount Subwoofer | White
Model 134817MPN EX-S10SUB-CM-W
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Loudspeaker type: Passive surface-mount subwoofer
- Low-frequency driver: 10 inches
- Operating mode: 8 ohms
- Included mounting system: ClickMount pan-tilt bracket
- Finish: White
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp EX-S10SUB-CM-W?
The Biamp Desono EX-S10SUB-CM-W is a white passive 10-inch surface-mount subwoofer for adding bass to EX-S6 and EX-S8 loudspeaker systems. This pan-tilt version suits fixed sound installations where the bass enclosure needs to coordinate visually with the full-range speakers. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
EX-S10SUB-CM-W is an externally amplified bass loudspeaker. It complements full-range speakers and operates at 8 ohms; it is not a standalone full-range speaker or an active subwoofer.
Why this product
Key Benefits
-
Loudspeaker type
Passive surface-mount subwoofer.
-
Included mounting system
ClickMount pan-tilt bracket.
-
Finish
White.
Use cases
Applications
-
Bass extension for EX-S6 or EX-S8 foreground music systems
-
Hospitality and retail installations requiring a coordinated speaker appearance
Technical details
Technical Specifications
System
- Low-frequency driver
- 10 inches
- Low-frequency driver
- 10 inches.
Physical
- Finish
- White
Included & Optional Accessories
- Included mounting system
- ClickMount pan-tilt bracket
General
- Model
- EX-S10SUB-CM-W
- Manufacturer part number
- EX-S10SUB-CM-W
- Loudspeaker type
- Passive surface-mount subwoofer
- Operating mode
- 8 ohms
- Operating mode
- 8 ohms.
In the box
What's Included
-
One Biamp Desono EX-S10SUB-CM-W white subwoofer
-
ClickMount pan-tilt mounting bracket
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera D 2400.4 2400W Networked Power Amplifier. Amplifier option with DSP. Specify channel output, limiting and the correct speaker preset for the selected load; do not apply its full output without loudspeaker protection. Confirm the final channel loading, power allocation and system routing with Corporate AV.
Biamp Desono EX-S8-CM-W 8-Inch Coaxial Surface-Mount Speaker | White. Matching full-range loudspeaker option; use separately configured amplifier channels and coordinate the crossover, delay and polarity.
Installation
Use structural fixings appropriate to the supporting surface and the complete speaker-and-bracket weight. Set the ClickMount pan and tilt, lock the aiming position and route the cable as instructed. Configure the manufacturer subwoofer DSP, high-pass and low-pass filters and protection; coordinate crossover and polarity with the full-range speakers. Outdoor suitability depends on the full installation and cable sealing; IP ratings do not mean suitability for immersion.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your EX-S10SUB-CM-W quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
