Biamp Desono EX-S8-CM-B 8-Inch Coaxial Surface-Mount Speaker | Black
Model 136836MPN EX-S8-CM-B
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Loudspeaker type: Passive two-way coaxial surface-mount
- Low-frequency driver: 8 inches
- Operating mode: 8 ohms or 70V/100V transformer taps
- Included mounting system: ClickMount pan-tilt bracket
- Finish: Black
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp EX-S8-CM-B?

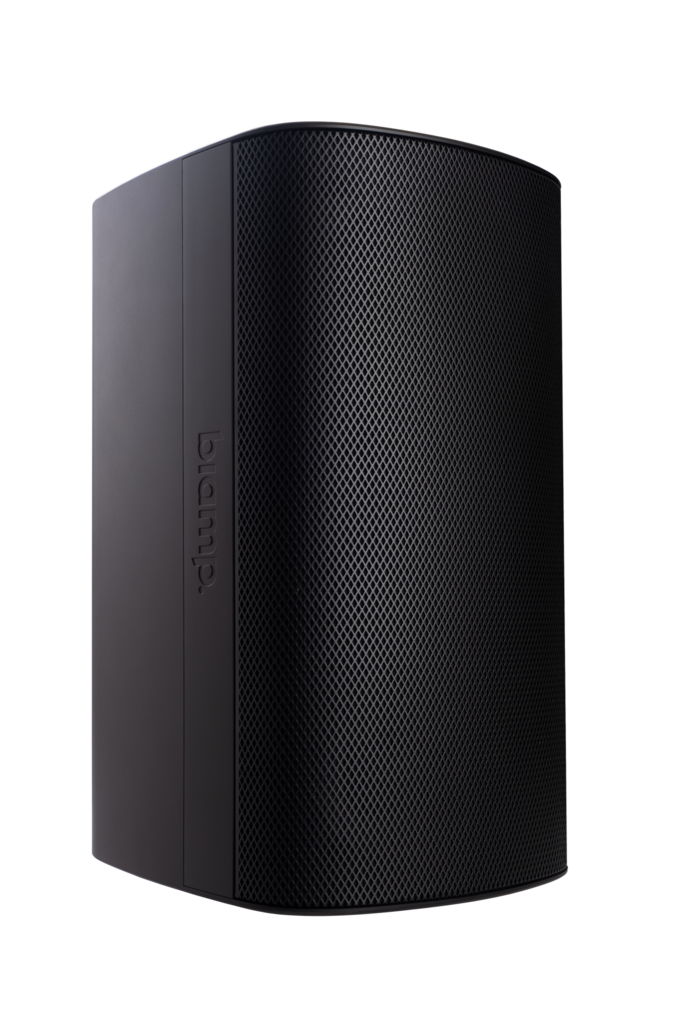

The Biamp Desono EX-S8-CM-B is a black 8-inch, two-way coaxial surface-mount loudspeaker for speech and music in commercial spaces. Its 8-inch driver provides a useful balance of voice projection and bass for distributed or fill coverage. This version includes the ClickMount pan-tilt bracket. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
EX-S8-CM-B is a passive installation speaker with coaxial high- and low-frequency drivers. It supports either 8-ohm operation or transformer-tapped 70V/100V distributed audio and needs a separate amplifier and the specified loudspeaker processing.
Why this product
Key Benefits
-
Loudspeaker type
Passive two-way coaxial surface-mount.
-
Included mounting system
ClickMount pan-tilt bracket.
-
Finish
Black.
Use cases
Applications
-
Distributed speech and music in hospitality and retail spaces
-
Presentation spaces, education facilities and commercial fit-outs
-
Outdoor installations specified to the manufacturer’s environmental and mounting requirements
Technical details
Technical Specifications
System
- Low-frequency driver
- 8 inches
- Low-frequency driver
- 8 inches.
Performance & Coverage
- Nominal coverage (H × V)
- 105° × 105°
Power
- 70V transformer taps
- 80W / 40W / 20W / 10W
- 100V transformer taps
- 80W / 40W / 20W
- Recommended amplifier output at 8 ohms
- 250–500W per loudspeaker
- Nominal continuous power handling
- 250W at 8 ohms
Connectivity
- Input connector
- 4-position lever-clamp terminal block with pass-through
Physical
- Finish
- Black
- Dimensions with supplied mount (H × W × D)
- 442 × 260 × 391mm
- Loudspeaker-only weight
- 11.2kg
Environmental
- Environmental rating
- IP54; install and seal connections as directed
Included & Optional Accessories
- Included mounting system
- ClickMount pan-tilt bracket
General
- Model
- EX-S8-CM-B
- Manufacturer part number
- EX-S8-CM-B
- Loudspeaker type
- Passive two-way coaxial surface-mount
- Operating mode
- 8 ohms or 70V/100V transformer taps
- Required protection
- 50Hz, 12dB/octave Butterworth high-pass filter and manufacturer DSP preset
- Operating range (-10dB)
- 55Hz–20kHz
- Operating mode
- 8 ohms or 70V/100V transformer taps.
In the box
What's Included
-
One Biamp Desono EX-S8-CM-B black loudspeaker
-
ClickMount pan-tilt mounting bracket
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera D 1200.4 4-Channel DSP Amplifier. Amplifier option with DSP. Its nominal 300W per channel at 8 ohms fits the published amplifier range for one EX-S8-CM-B per channel. Confirm the final channel loading, power allocation and system routing with Corporate AV.
Installation
Use structural fixings appropriate to the supporting surface and the complete speaker-and-bracket weight. Set the ClickMount pan and tilt, lock the aiming position and route the cable as instructed. Choose 8-ohm or the correct 70V/100V tap before connection. Sum transformer taps by amplifier channel, allow the required headroom and load the manufacturer DSP preset and high-pass protection. Outdoor suitability depends on the full installation and cable sealing; IP ratings do not mean suitability for immersion.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your EX-S8-CM-B quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
