Biamp KUBO3T-BL
Model 129584MPN KUBO3T-BL
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 3-inch full-range
- Continuous power handling: 25 W at 16 Ω
- Connection modes: 70 V / 100 V or 16 Ω bypass
- Recommended amplification: 25–50 W at 16 Ω
- Finish: Black
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp KUBO3T-BL?

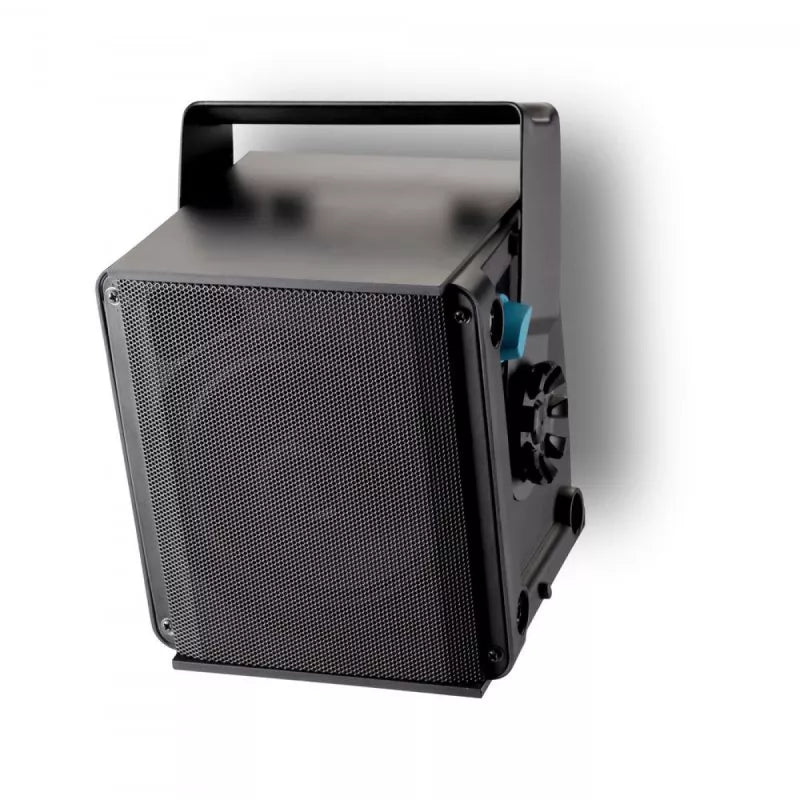

The Biamp Desono KUBO3T-BL is a black passive surface-mount loudspeaker with a 3-inch full-range. Its selectable transformer taps support 70/100 V distributed audio, with a low-impedance bypass for a suitably designed system. The U-bracket supports a coordinated wall or ceiling installation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 3-inch full-range installation speaker, supplied in black, for distributed or low-impedance commercial audio systems.
- Finish: Black.
Use cases
Applications
-
Retail background music
-
Hospitality speech and music
-
Meeting and commercial spaces
Technical details
Technical Specifications
System
- Driver configuration
- 3-inch full-range
- Driver configuration
- 3-inch full-range.
Performance & Coverage
- Nominal coverage
- 100° × 100°
Power
- Continuous power handling
- 25 W at 16 Ω
- Recommended amplification
- 25–50 W at 16 Ω
- Transformer taps
- 70 V: 10/5/2.5/1.25 W; 100 V: 10/5/2.5 W
- Continuous power handling
- 25 W at 16 Ω.
- Recommended amplification
- 25–50 W at 16 Ω.
Connectivity
- Connection modes
- 70 V / 100 V or 16 Ω bypass
- Connection modes
- 70 V / 100 V or 16 Ω bypass.
Physical
- Finish
- Black
- Dimensions H × W × D
- 125 × 131 × 109 mm
- Weight
- 1.2 kg
- Mounting
- U-bracket
Environmental
- Environmental protection
- IP40
General
- Model
- KUBO3T-BL
- Manufacturer part number
- KUBO3T-BL
- Operating range (−10 dB)
- 115 Hz–20 kHz
In the box
What's Included
-
Desono KUBO3T-BL loudspeaker quantity as quoted; confirm individual or manufacturer pack pricing
-
U-bracket
-
Safety cable
-
Magnetic side covers
-
Connection terminals
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.2 Two-Channel Class D Amplifier. An amplifier option for 70/100 V operation. Select the correct speaker tap and keep the summed tap load within each channel and the total 300 W amplifier budget.
Biamp LRAPRE-BL Premium Light Rail Adapter | Black. An optional black rail adapter for this KUBO model. Confirm the rail type, finish and full mounting arrangement.
Biamp LRABAS-BL Basic Light Rail Adapter for KUBO3 | Black. An optional black rail adapter for this KUBO model. Confirm the rail type, finish and full mounting arrangement.
Installation
Match the amplifier mode and connected load before powering the system. Use indoors and avoid wet locations. Secure the bracket to a suitable structure and fit the specified safety retention.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your KUBO3T-BL quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
