Biamp

Biamp MA120

Model 129489MPN MA120

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Output channels: 1
  • Published output: 120 W at 70 V, 100 V or 4 Ω
  • Output configuration: One selected speaker-output mode at a time
  • Cooling: Fanless convection
  • Rack format: 2RU
Biamp MA120
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

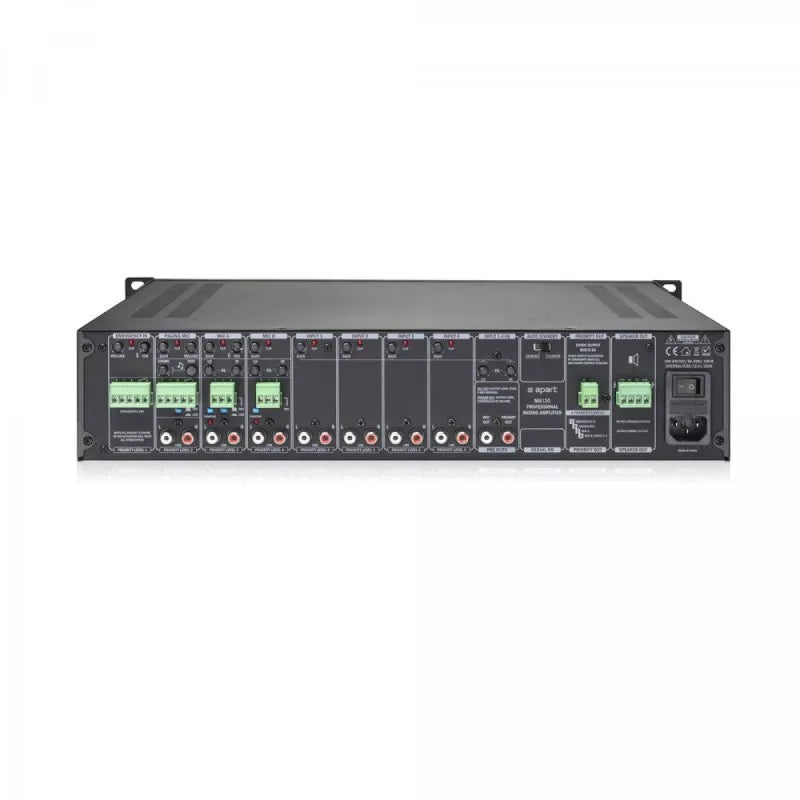

What is the Biamp MA120?

The Biamp MA120 is a 1-channel Class D mixing amplifier for permanent commercial audio. Its published output is 120 W at 70 V, 100 V or 4 Ω. It combines microphone and music-source selection with paging priority in one unit. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

An installation amplifier for one selected speaker-output mode at a time, including source mixing and priority control.

  • Output configuration: One selected speaker-output mode at a time.
  • Cooling: Fanless convection.

Use cases

Applications

  • Commercial background music

  • Retail and hospitality audio

  • Fixed installed sound zones

Technical details

Technical Specifications

System

Output configuration
One selected speaker-output mode at a time
Cooling
Fanless convection

Connectivity

Output channels
1
Published output
120 W at 70 V, 100 V or 4 Ω
Inputs
Two mic/line inputs, four stereo line inputs summed to mono, dedicated paging and emergency input
Output channels
1.
Published output
120 W at 70 V, 100 V or 4 Ω.

Physical

Rack format
2RU
Rack format
2RU.

General

Model
MA120
Manufacturer part number
MA120
Priority
Four audio-priority levels; 24 V override output

In the box

What's Included

  • One Biamp MA120 amplifier; confirm regional mains cord and connector pack

  • 19-inch rack brackets

Installation

Installation & Mounting

Recommended Compatible Equipment

Biamp KUBO3T-W 3" Cabinet Loudspeaker | White. Use a matching 70/100 V tap. Sum the selected speaker taps and leave amplifier headroom.

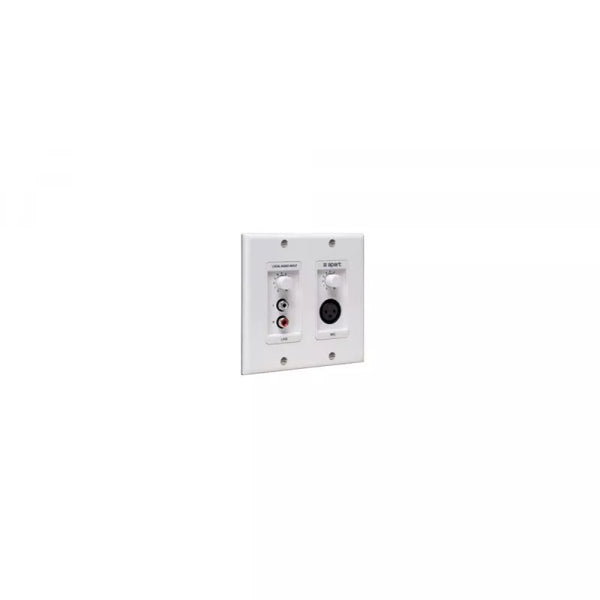

Biamp D-ALINP Decora Active Local Input Panel. A local microphone/music input panel option. Connect to the documented phantom-powered input and set the correct gain.

Installation

Check speaker mode, per-channel impedance or transformer-tap total, gain and output limits. Leave at least one free rack unit above the amplifier as specified in the MA120/MA240 manual. Confirm mains voltage, regional cord, signal cabling and any upstream processing required by the speakers.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your MA120 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp MA120 used for?

The Biamp MA120 is a 1-channel Class D mixing amplifier for permanent commercial audio. Its published output is 120 W at 70 V, 100 V or 4 Ω. It combines microphone and music-source selection with paging priority in one unit.

How should I match the speakers to this amplifier?

Use the specified output configuration: One selected speaker-output mode at a time. Use a matching 70/100 V tap. Sum the selected speaker taps and leave amplifier headroom. Avoid clipped operation and leave suitable system headroom.

Can I use every speaker-output terminal at once?

No. The MA120/MA240 manual specifies using the 4 Ω, 70 V or 100 V output arrangement separately, never more than one output at the same time.

Which equipment should I consider with MA120?

Biamp KUBO3T-W 3" Cabinet Loudspeaker | White. Use a matching 70/100 V tap. Sum the selected speaker taps and leave amplifier headroom.

Biamp D-ALINP Decora Active Local Input Panel. A local microphone/music input panel option. Connect to the documented phantom-powered input and set the correct gain.

What is included with MA120?

One Biamp MA120 amplifier; confirm regional mains cord and connector pack; 19-inch rack brackets. Confirm the exact regional pack on the quotation.

What should I check before installing MA120?

Check speaker mode, per-channel impedance or transformer-tap total, gain and output limits. Leave at least one free rack unit above the amplifier as specified in the MA120/MA240 manual. Confirm mains voltage, regional cord, signal cabling and any upstream processing required by the speakers.

Can Corporate AV help specify MA120 for a UAE project?

Share your MA120 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp MA120 quotation in the UAE?

Contact Corporate AV about Biamp MA120. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
