Biamp MASK4C-W
Model 128077MPN MASK4C-W
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: 4.25-inch woofer and 1-inch tweeter
- Continuous power handling: 50 W at 8 Ω
- Connection modes: 8 Ω low impedance
- Recommended amplification: 50–100 W at 8 Ω
- Finish: White
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp MASK4C-W?
The Biamp Desono MASK4C-W is a white passive surface-mount loudspeaker with a 4.25-inch woofer and 1-inch tweeter. It connects to a correctly matched external amplifier for speech and background music. The ClickMount bracket supports a coordinated wall or ceiling installation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 4.25-inch woofer and 1-inch tweeter installation speaker, supplied in white, for low-impedance commercial audio systems.
- Finish: White.
Use cases
Applications
-
Retail background music
-
Hospitality speech and music
-
Meeting and commercial spaces
Technical details
Technical Specifications
System
- Driver configuration
- 4.25-inch woofer and 1-inch tweeter
- Driver configuration
- 4.25-inch woofer and 1-inch tweeter.
Performance & Coverage
- Nominal coverage
- 100° × 80°
Power
- Continuous power handling
- 50 W at 8 Ω
- Recommended amplification
- 50–100 W at 8 Ω
- Continuous power handling
- 50 W at 8 Ω.
- Recommended amplification
- 50–100 W at 8 Ω.
Connectivity
- Connection modes
- 8 Ω low impedance
- Connection modes
- 8 Ω low impedance.
Physical
- Finish
- White
- Dimensions H × W × D
- 238 × 144 × 144 mm
- Weight
- 2.3 kg
- Mounting
- ClickMount bracket
Environmental
- Environmental protection
- IP64
General
- Model
- MASK4C-W
- Manufacturer part number
- MASK4C-W
- Operating range (−10 dB)
- 70 Hz–22 kHz
In the box
What's Included
-
Desono MASK4C-W loudspeaker quantity as quoted; confirm individual or manufacturer pack pricing
-
ClickMount bracket
-
Safety cable
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.4 Four-Channel 300W Amplifier. An amplifier option with configurable output. Set the channel power limit to suit this speaker's recommended range and verify the combined load; do not treat the amplifier's full output as the speaker rating.

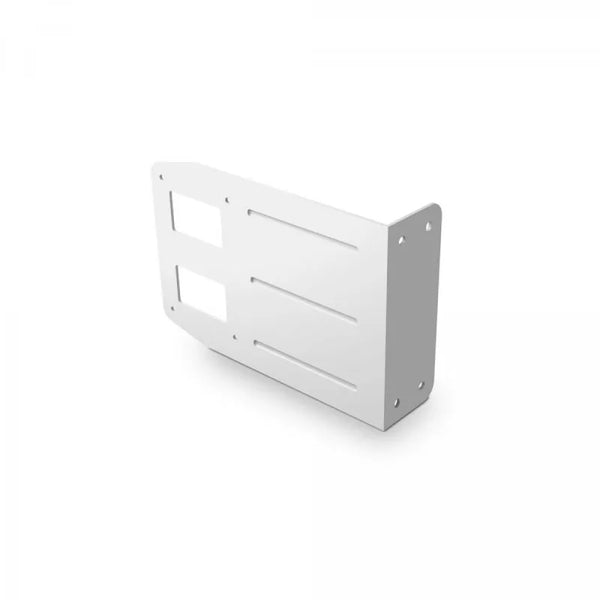

Biamp MASKCL-W Metal Adapter for MASK4CT/MASK6CT. An optional matching-colour bracket. Use with ClickMount and follow the specified speaker-count and matching-weight requirements.

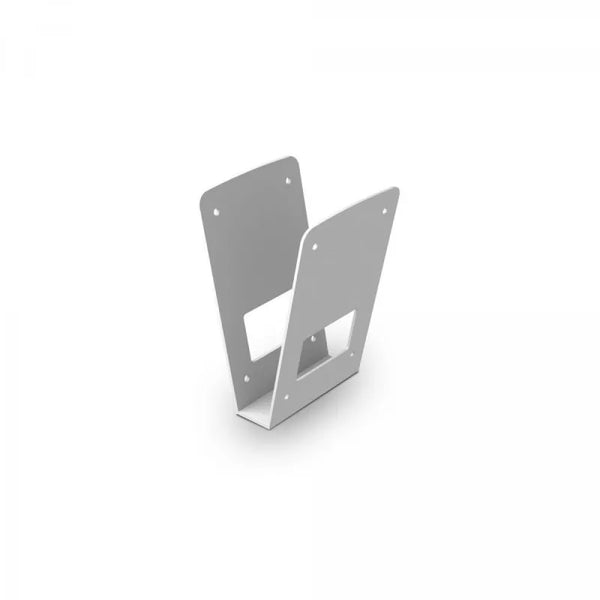

Biamp MASKCV-W V-Shaped 2-way Cluster Bracket for MASK4CT/MASK6CT. An optional matching-colour bracket. Use with ClickMount and follow the specified speaker-count and matching-weight requirements.
Installation
Match the amplifier mode and connected load before powering the system. For outdoor locations, use the specified connector sealing and verify the complete mounting arrangement. Optional cluster brackets are indoor accessories. Secure the bracket to a suitable structure and fit the specified safety retention.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your MASK4C-W quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
