Biamp PM4100
Model 129484MPN PM4100
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Analogue inputs: Four stereo RCA inputs
- Output: One balanced stereo output on five-pin Euroblock
- USB: USB 2.0 Type-B; 16-bit, 48 kHz
- Control: Ethernet, two bidirectional RS-232/IR ports and four GPIO
- Power options: 12 V DC / 5 W or PoE Class 2 / 7 W
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp PM4100?

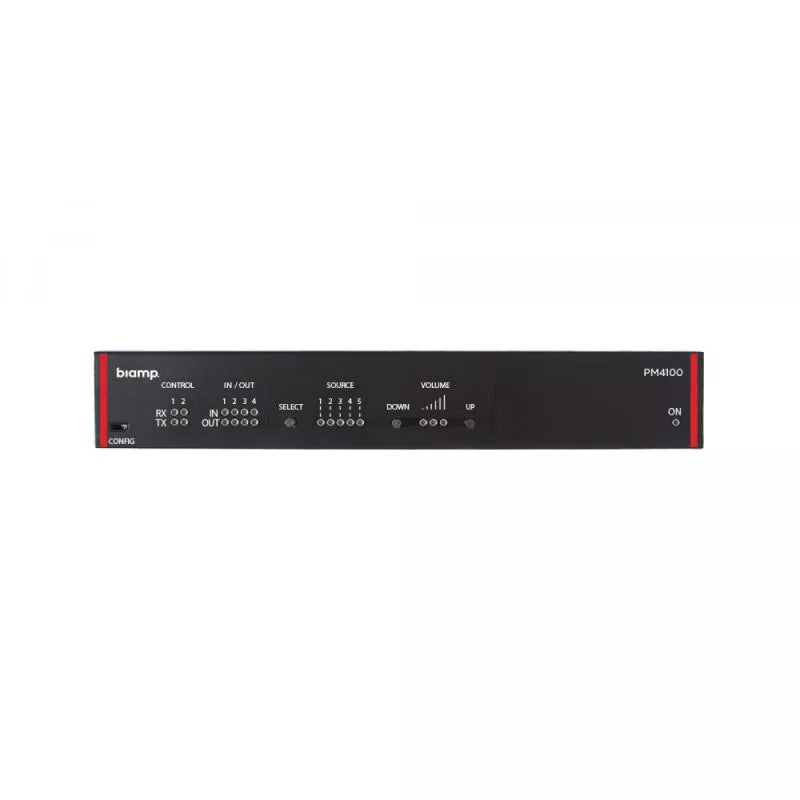

The Biamp PM4100 is a compact stereo preamplifier for room audio source selection and control. It provides four stereo RCA inputs, a USB computer-audio connection and a balanced stereo output, with Ethernet, serial and GPIO interfaces for integration. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
The Biamp PM4100 is a compact stereo preamplifier for room audio source selection and control. It provides four stereo RCA inputs, a USB computer-audio connection and a balanced stereo output, with Ethernet, serial and GPIO interfaces for integration.
Why this product
Key Benefits
-
Analogue inputs
Four stereo RCA inputs.
-
Output
One balanced stereo output on five-pin Euroblock.
-
USB
USB 2.0 Type-B; 16-bit, 48 kHz.
-
Control
Ethernet, two bidirectional RS-232/IR ports and four GPIO.
Use cases
Applications
-
Retail and hospitality audio
-
Commercial room and zone audio
Technical details
Technical Specifications
Power
- Power options
- 12 V DC / 5 W or PoE Class 2 / 7 W
- Power options
- 12 V DC / 5 W or PoE Class 2 / 7 W.
Connectivity
- Analogue inputs
- Four stereo RCA inputs
- Output
- One balanced stereo output on five-pin Euroblock
- USB
- USB 2.0 Type-B; 16-bit, 48 kHz
Physical
- Dimensions H × W × D
- 37 × 218 × 70 mm
- Weight
- 0.5 kg
General
- Model
- PM4100
- Manufacturer part number
- PM4100
- Control
- Ethernet, two bidirectional RS-232/IR ports and four GPIO
In the box
What's Included
-
One Biamp PM4100; confirm the connector, mounting and regional accessory pack on the quotation
Installation
Installation & Mounting
Recommended Compatible Equipment

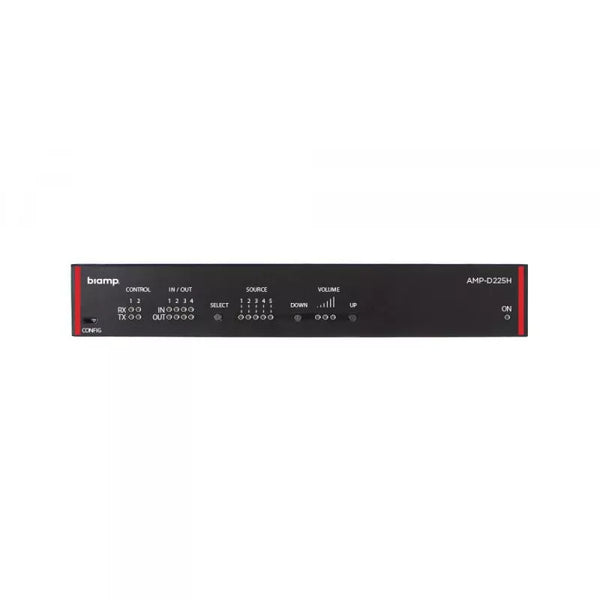

Biamp AMP-D225H Power Amplifier. A compact amplifier option in the same room-audio design; confirm inputs, gain and control wiring.

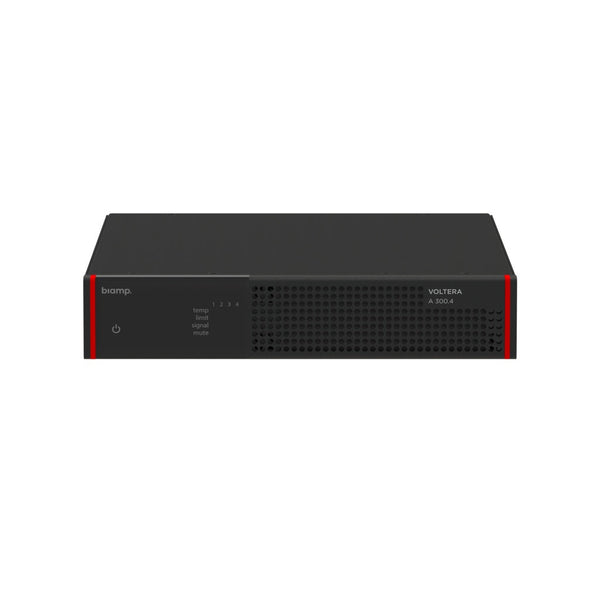

Biamp Voltera A 300.4 Four-Channel 300W Amplifier. A four-channel amplifier option using an appropriate analogue connection. Match the stereo routing and all speaker loads.
Installation
Confirm audio level, connector pinout, control wiring and power requirements for the complete system. Set input gain and priority functions during commissioning. Use only documented compatible accessories.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your PM4100 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
