Biamp

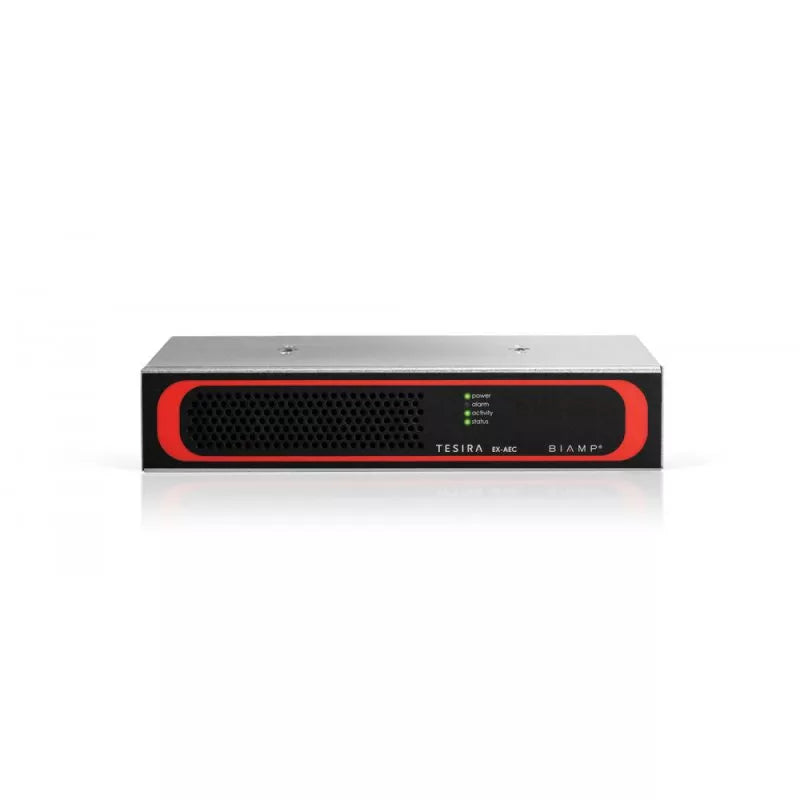

Biamp Tesira EX-AEC

Model 35899MPN Tesira EX-AEC

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Balanced mic/line inputs: 4
  • AEC: 4 input channels
  • Input gain: 0–66dB, 6dB increments
  • Phantom power: +48V
  • Network: Tesira AVB/TSN
Biamp Tesira EX-AEC
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Biamp Tesira EX-AEC?

The Biamp Tesira EX-AEC is a PoE+ mic/line input expander with four balanced inputs and acoustic echo cancellation. It places additional analogue microphone inputs on a supported Tesira AVB network rather than requiring every audio cable to return to the main DSP. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

EX-AEC is an audio expander for a supported AVB-enabled Tesira host. It is not a standalone conferencing hub or a Dante input box.

  • Network: Tesira AVB/TSN.

Use cases

Applications

  • Supported commercial meeting-room AV installations

  • UAE projects with a documented mounting, audio or media-network design

Technical details

Technical Specifications

Power

Phantom power
+48V
Power
PoE+
Phantom power
+48V.

Connectivity

Balanced mic/line inputs
4
Input gain
0–66dB, 6dB increments
Network
Tesira AVB/TSN
Connections
Plug-in barrier strips
Balanced mic/line inputs
4.
Input gain
0–66dB, 6dB increments.

General

Model
Tesira EX-AEC
Manufacturer part number
Tesira EX-AEC
AEC
4 input channels
Chassis
Half-rack
AEC
4 input channels.

In the box

What's Included

  • One Biamp Tesira EX-AEC input expander

Installation

Installation & Mounting

Recommended Compatible Equipment

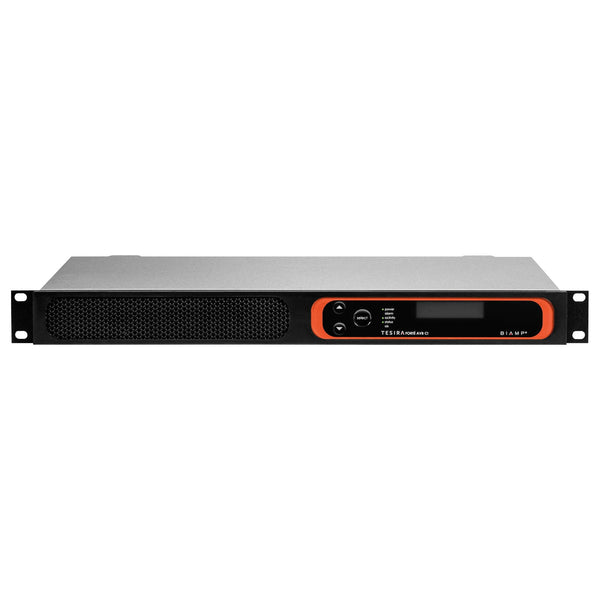

Biamp TesiraFORTE AVB CI Fixed I/O DSP. AVB-capable TesiraFORTÉ CI host option. Confirm firmware, processing capacity, topology and the complete compiled configuration.

Installation

Specify a supported AVB-enabled Tesira host and include the expander in the compiled design. Maintain the required common control/media network and subnet with its proxy server. Provide suitable PoE+ power and configure gain, phantom power, routing and AEC reference for the installed microphones.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your Tesira EX-AEC quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp Tesira EX-AEC used for?

The Biamp Tesira EX-AEC is a PoE+ mic/line input expander with four balanced inputs and acoustic echo cancellation. It places additional analogue microphone inputs on a supported Tesira AVB network rather than requiring every audio cable to return to the main DSP.

Can EX-AEC work with a Dante-only TesiraFORTÉ?

It requires a supported Tesira AVB host and network. A classic Dante-only TesiraFORTÉ DAN does not provide the required AVB media connection.

Can this expander operate without a Tesira host?

It is designed as part of a configured Tesira system. The supported host, network, power arrangement and required processing must be specified.

Which equipment should I consider with Tesira EX-AEC?

Biamp TesiraFORTE AVB CI Fixed I/O DSP. AVB-capable TesiraFORTÉ CI host option. Confirm firmware, processing capacity, topology and the complete compiled configuration.

What is included with Tesira EX-AEC?

One Biamp Tesira EX-AEC input expander. Confirm the exact regional pack on the quotation.

What should I check before installing Tesira EX-AEC?

Specify a supported AVB-enabled Tesira host and include the expander in the compiled design. Maintain the required common control/media network and subnet with its proxy server. Provide suitable PoE+ power and configure gain, phantom power, routing and AEC reference for the installed microphones.

Can Corporate AV help specify Tesira EX-AEC for a UAE project?

Share your Tesira EX-AEC quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp Tesira EX-AEC quotation in the UAE?

Contact Corporate AV about Biamp Tesira EX-AEC. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
