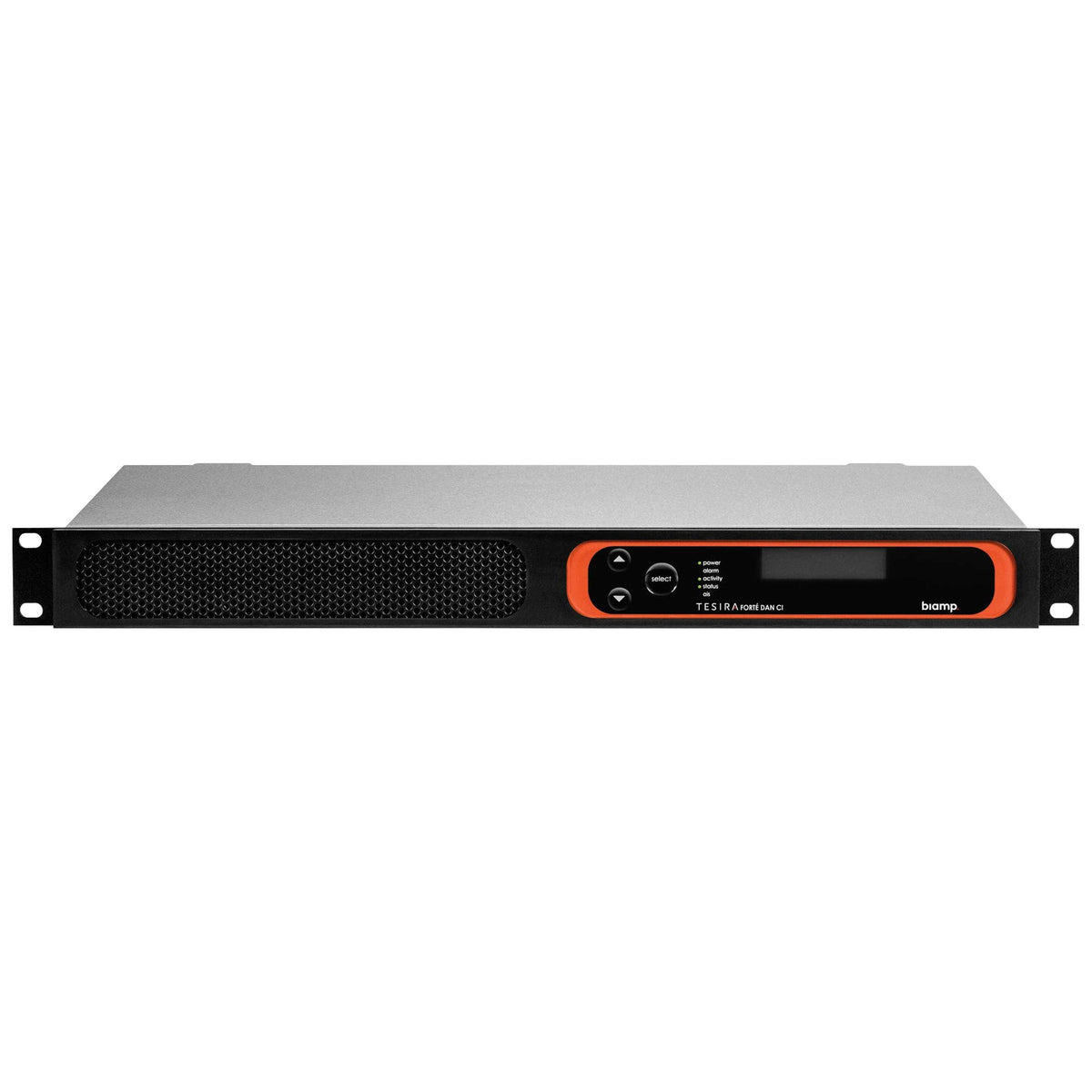

Biamp TesiraFORTÉ DAN CI Fixed I/O DSP
Model 129680MPN TesiraFORTÉ DAN CI
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Analogue inputs: 12 mic/line inputs
- Analogue outputs: 8 mic/line outputs
- AEC: 12 input channels
- USB audio: Up to 8 configurable channels
- Networked audio: 32 × 32 Dante channels
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp TesiraFORTÉ DAN CI?
The Biamp TesiraFORTÉ DAN CI is a fixed-I/O audio DSP with 12 analogue mic/line inputs and 8 analogue outputs. It provides acoustic echo cancellation on 12 inputs for conferencing and room-audio processing. This DAN version adds 32 × 32 Dante audio networking. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
TesiraFORTÉ DAN CI is a configurable room-audio processor, not a power amplifier. It connects microphones, sources, conferencing hosts and downstream audio equipment through a Tesira system design. Specify the correct network variant before ordering.
- USB audio: Up to 8 configurable channels.
Use cases
Applications
-
Meeting-room USB conferencing with configured audio processing
-
Presentation and distance-learning installations requiring AEC
Technical details
Technical Specifications
System
- DSP functions
- Routing, mixing, equalisation, filtering, dynamics and delay
- Configuration
- Tesira software; Ethernet control and monitoring
Power
- Power
- Internal universal power supply
Connectivity
- Analogue inputs
- 12 mic/line inputs
- Analogue outputs
- 8 mic/line outputs
- USB audio
- Up to 8 configurable channels
- Local control ports
- RS-232 and 4-pin GPIO
- Analogue inputs
- 12 mic/line inputs.
- Analogue outputs
- 8 mic/line outputs.
Physical
- Rack format
- 1RU
General
- Model
- TesiraFORTÉ DAN CI
- Manufacturer part number
- TesiraFORTÉ DAN CI
- AEC
- 12 input channels
- Networked audio
- 32 × 32 Dante channels
- AEC
- 12 input channels.
- Networked audio
- 32 × 32 Dante channels.
In the box
What's Included
-
One Biamp TesiraFORTÉ DAN CI fixed-I/O DSP
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Voltera A 300.2 Two-Channel Class D Amplifier. Analogue amplifier option for the DSP’s line outputs. Calculate speaker channels, low-impedance or transformer loads and available power; set input gain for the DSP output level.
Biamp Tesira TEC-1i In-Wall PoE Control. Tesira control-panel option for a configured system. Include suitable PoE power and assign the intended volume, source or room-control functions.
Installation
Confirm the DAN hardware variant, microphone inputs, USB channel allocation, amplifier input levels and the full Tesira processing design. Plan the Dante network, clocking and subscriptions; a DAN unit does not directly provide the AVB interface required by Parlé AVB microphones. Commission gain structure, routing, loudspeaker processing, AEC reference and echo cancellation against the installed room.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your TesiraFORTÉ DAN CI quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
