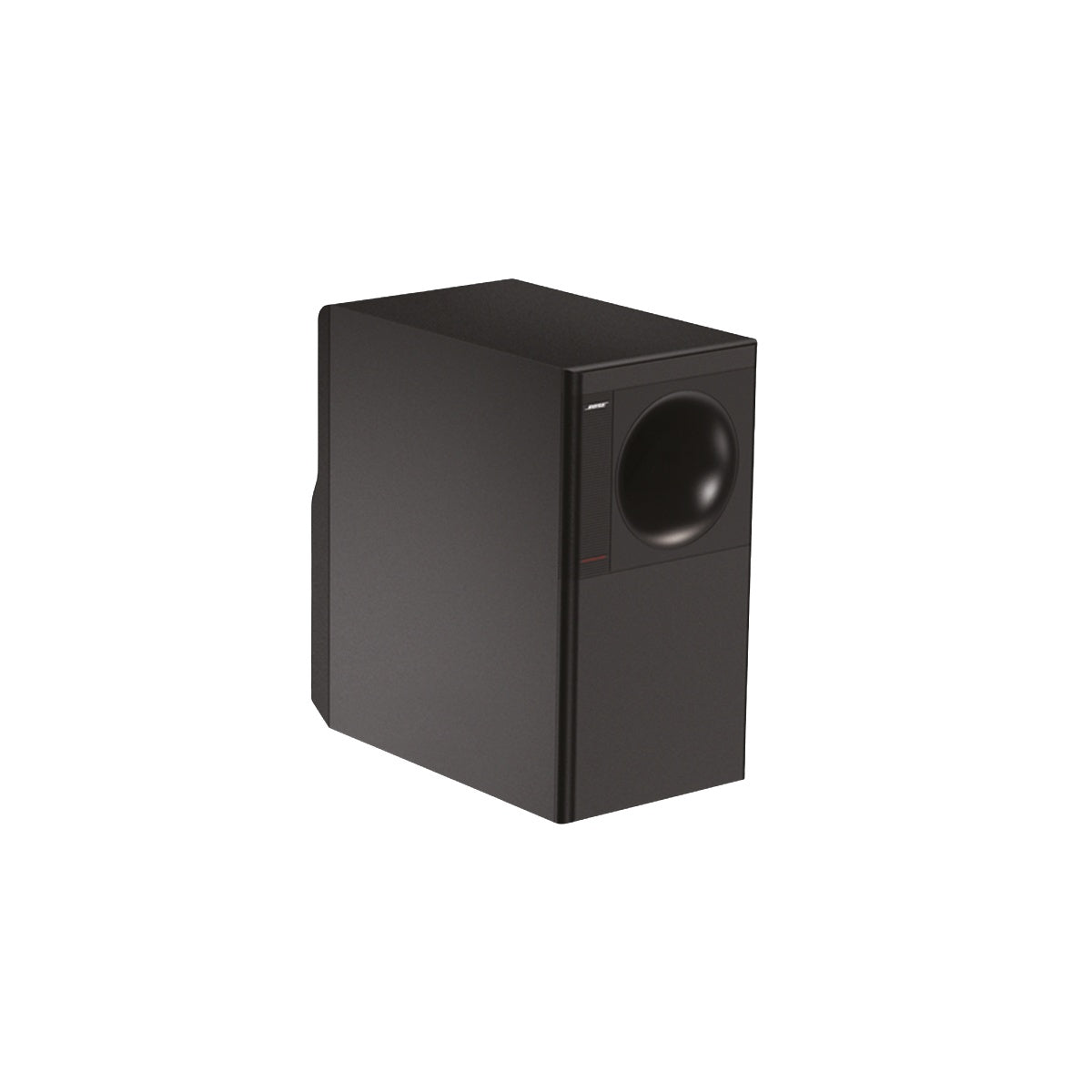

Bose FreeSpace 3 Surface-Mount Bass Module Black
Model 40146MPN 040146
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.aeDatasheet: Download PDF
- Woofer: 5.25-inch dual-voice-coil
- Frequency range (-10 dB): 40–315 Hz
- Transformer taps, 70/100 V: 25, 50, 100, 200 W
- Continuous handling, transformer mode: 200 W mono
- Continuous handling, low-impedance mode: 50 W/channel stereo or 100 W mono
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose FreeSpace 3 Surface-Mount Bass Module Black?
The black Bose FreeSpace 3 surface-mount bass module adds low-frequency support to an indoor background-music system. Its dual-voice-coil 5.25-inch woofer works with the documented FreeSpace 3 satellite arrangement. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
This is a passive bass module, requiring external amplification. Select the mono/stereo and transformer/bypass arrangement using the manufacturer wiring diagram; the satellite speakers are separate.
Why this product
Key Benefits
-
Frequency range (-10 dB)
40–315 Hz.
-
Transformer taps, 70/100 V
25, 50, 100, 200 W.
-
Continuous handling, transformer mode
200 W mono.
-
Continuous handling, low-impedance mode
50 W/channel stereo or 100 W mono.
Use cases
Applications
-
Retail background music
-
Indoor restaurant and hospitality audio
Technical details
Technical Specifications
System
- Woofer
- 5.25-inch dual-voice-coil
- Woofer
- 5.25-inch dual-voice-coil.
Frequency
- Frequency range (-10 dB)
- 40–315 Hz
Power
- Transformer taps, 70/100 V
- 25, 50, 100, 200 W
- Continuous handling, transformer mode
- 200 W mono
- Continuous handling, low-impedance mode
- 50 W/channel stereo or 100 W mono
Physical
- Mounting
- Surface mount with bracket
- Dimensions
- 356 × 191 × 345 mm H × W × D, without bracket
- Weight
- 7.9 kg
General
- Model
- FreeSpace 3 Surface-Mount Bass Module Black
- Manufacturer part number
- 040146
- Environment
- Indoor only
In the box
What's Included
-
One black FreeSpace 3 surface-mount bass module
-
Mounting bracket
-
Wiring-panel cover
-
Installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose PowerSpace P4300+ Power Amplifier. PowerSpace P4300+ is an option for a correctly designed 70/100 V or supported low-impedance FreeSpace 3 circuit. Configure the output, load, EQ and protection for the chosen arrangement.

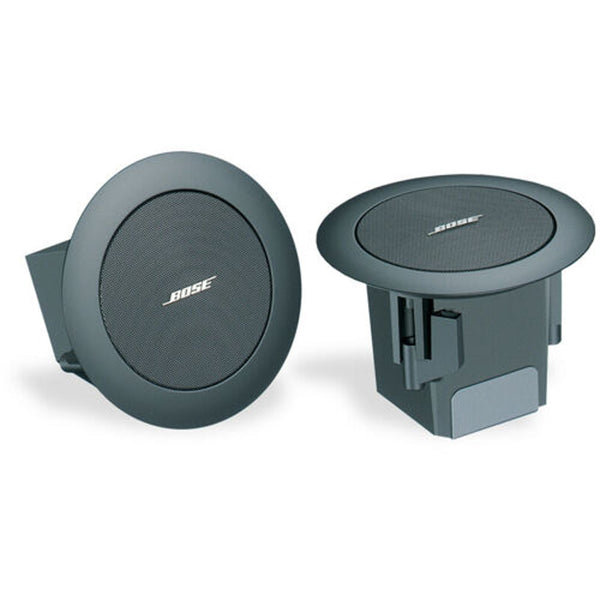

Bose 843091-0110 Freespace 3 Flush-Mount Satellites Black. FreeSpace 3 flush satellites are a compatible companion. They connect through the documented system wiring and are sold separately.
Installation
Specify the complete bass/satellite circuit, 40 Hz high-pass protection and Bose EQ. Confirm mono/stereo, transformer or bypass wiring and the resulting amplifier load. Ceiling/plenum installations may require optional accessories; confirm the actual structure and pack.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your FreeSpace 3 Surface-Mount Bass Module Black quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
