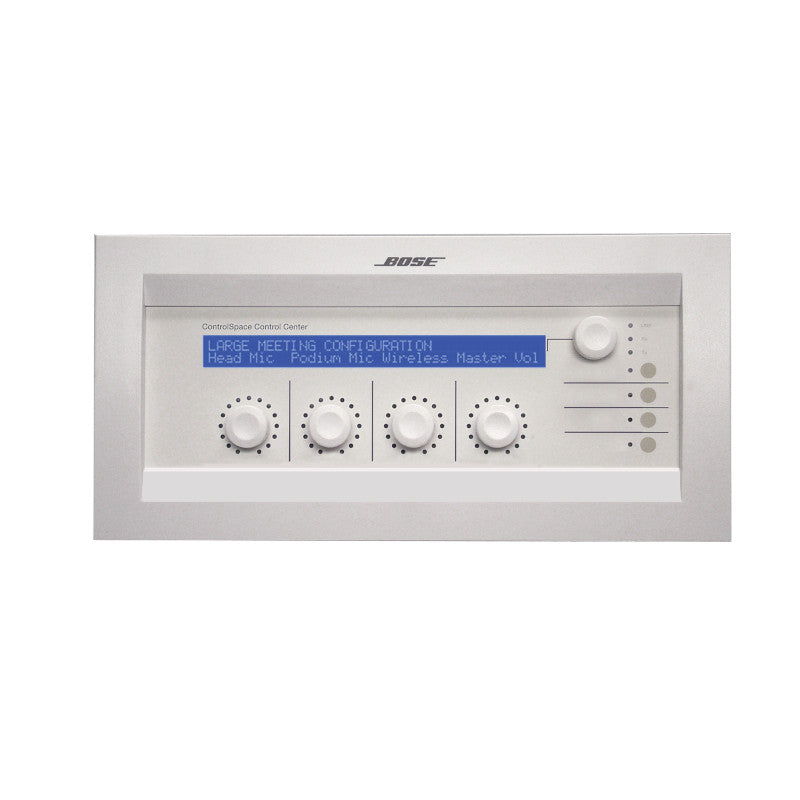

Bose ControlSpace CC-64 Programmable Audio Controller - White
Model 41760
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Display: Two-line × 40-character backlit LCD
- Controls: Four gain/select knobs, four bank buttons and master scene/preset knob
- Power: 15–24 VDC, 300 mA
- Wall Box: Five-gang North American format; confirm site dimensions
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose ControlSpace CC-64?
The Bose ControlSpace CC-64 provides a programmable networked control surface for supported ControlSpace ESP processors and networked PowerMatch amplifiers. Rotary encoders, bank buttons and a labelled display let an integrator present the specific gain, selection and scene controls required by the room. Corporate AV can specify the device, compatible host and system configuration for a project in Dubai, Abu Dhabi or elsewhere in the UAE.
This is a programmable audio controller for a documented compatible audio-control system. Configure the control functions in ControlSpace Designer and provide the specified external DC power. The supplied Cat 5 power adapter is not a standalone power supply; do not assume the CC-64 uses standard PoE.
Why this product
Key Benefits
-
Display
Two-line × 40-character backlit LCD.
-
Controls
Four gain/select knobs, four bank buttons and master scene/preset knob.
-
Wall Box
Five-gang North American format; confirm site dimensions.
Use cases
Applications
-
Room audio control
Present the controls required by the room's operating routine.
-
Retail and hospitality
Separate user controls from the equipment-rack location.
-
Commercial AV fit-outs
Specify the controller, compatible host, cabling and programming together.
Technical details
Technical Specifications
Control & Interface
- Display
- Two-line × 40-character backlit LCD
- Controls
- Four gain/select knobs, four bank buttons and master scene/preset knob
Power
- Power
- 15–24 VDC, 300 mA
- Power
- 15–24 VDC, 300 mA.
Physical & Mounting
- Dimensions (H × W × D)
- 137 × 282 × 51 mm
Shipping & Packaging
- Wall Box
- Five-gang North American format; confirm site dimensions
Model & Identification
- Model
- ControlSpace CC-64
- Manufacturer Part Number
- 41760
In the box
What's Included
-
One ControlSpace CC-64
-
Installation guide
-
Cat 5 power adapter
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose CONTROLSPACE ESP-880A 8IN/8OUT 230V (sound Processor) is a compatible ControlSpace processor option. The controller's functions are programmed for the actual system; loudspeaker amplification and audio sources are separate.
Bose ControlSpace CC-PS1 Universal Power Supply is the manufacturer-specified power-supply option for the CC-16 and CC-64. Confirm the required regional plug and complete wiring arrangement.
Installation
Configure the control functions in ControlSpace Designer and provide the specified external DC power. The supplied Cat 5 power adapter is not a standalone power supply; do not assume the CC-64 uses standard PoE.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty and support arrangements on the quotation.
Support
Share the ControlSpace CC-64 quantity, existing audio hardware, desired controls and site location with Corporate AV for an itemised project proposal.
