Bose

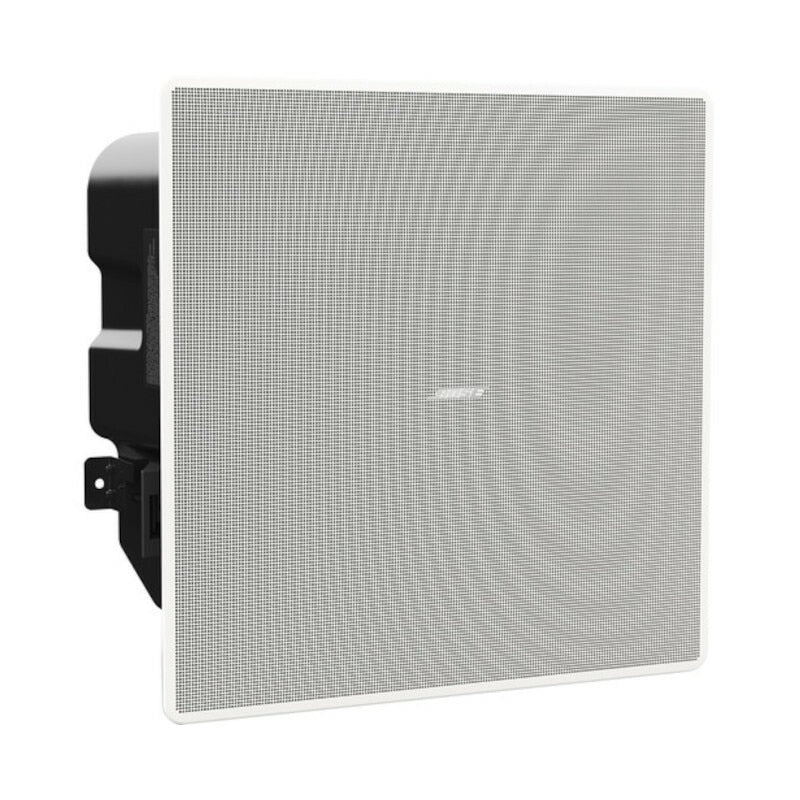

Bose EdgeMax EM180 Ceiling Speaker

Model 777189-0220

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Coverage: 180° horizontal × 75° asymmetrical vertical
  • Continuous power handling: 125 W
  • Frequency range (-10 dB): 45 Hz–20 kHz
  • Connection: 70/100 V transformer or 8 Ω bypass
  • 100 V taps: 5, 10, 20, 40, 80 W
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose EdgeMax EM180 Ceiling Speaker
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose EdgeMax EM180 Ceiling Speaker?

The Bose EdgeMax EM180 directs sound from the ceiling perimeter into the room using PhaseGuide technology. Its directional ceiling design supports music and speech with a discreet appearance. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

EM180 is a passive directional ceiling loudspeaker with 180° horizontal coverage. It needs an external amplifier; speaker placement, orientation and circuit loading should be designed together.

  • Frequency range (-10 dB): 45 Hz–20 kHz.
  • 100 V taps: 5, 10, 20, 40, 80 W.

Use cases

Applications

  • Meeting rooms and presentation spaces

  • Retail and hospitality audio

  • Perimeter-mounted music and speech systems

Technical details

Technical Specifications

Frequency

Frequency range (-10 dB)
45 Hz–20 kHz

Performance & Coverage

Coverage
180° horizontal × 75° asymmetrical vertical
Coverage
180° horizontal × 75° asymmetrical vertical.

Power

Continuous power handling
125 W
100 V taps
5, 10, 20, 40, 80 W
70 V taps
2.5, 5, 10, 20, 40, 80 W
Continuous power handling
125 W.

Connectivity

Connection
70/100 V transformer or 8 Ω bypass
Connection
70/100 V transformer or 8 Ω bypass.

Physical

Colour
White

General

Model
EdgeMax EM180 Ceiling Speaker
Manufacturer part number
777189-0220
Ceiling cutout
345 × 345 mm; 236 mm mounting depth
Environment
Indoor only

In the box

What's Included

  • One EdgeMax EM180 loudspeaker with grille

  • Tile bridge

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose PowerSpace P4300+ 4-Channel DSP Amplifier. PowerSpace P4300+ is a compatible DSP/amplifier option for a properly designed 70/100 V circuit or supported low-impedance arrangement. Match output mode, tap totals, high-pass filter and protection to the system.

Installation

Position EM180 along the ceiling edge according to the coverage design. Check the cutout, depth, ceiling support and safety attachments. Configure the 55 Hz high-pass filter at a minimum 12 dB/octave.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your EdgeMax EM180 Ceiling Speaker quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Expert FAQs

What is the Bose EdgeMax EM180 Ceiling Speaker used for?

The Bose EdgeMax EM180 directs sound from the ceiling perimeter into the room using PhaseGuide technology. Its directional ceiling design supports music and speech with a discreet appearance.

Does EM180 need an amplifier?

Yes. Select a suitable 70/100 V amplifier for transformer operation or a compatible low-impedance amplifier for 8-ohm bypass. Total the actual tap loads and include appropriate headroom and protection.

Where should EM180 be positioned?

Its 180° horizontal coverage is intended for perimeter placement. Share the room dimensions, ceiling height and listener layout so the orientation and quantity can be checked.

Which equipment should I consider with EdgeMax EM180 Ceiling Speaker?

Bose PowerSpace P4300+ 4-Channel DSP Amplifier. PowerSpace P4300+ is a compatible DSP/amplifier option for a properly designed 70/100 V circuit or supported low-impedance arrangement. Match output mode, tap totals, high-pass filter and protection to the system.

What is included with EdgeMax EM180 Ceiling Speaker?

One EdgeMax EM180 loudspeaker with grille; Tile bridge. Confirm the exact regional pack on the quotation.

What should I check before installing EdgeMax EM180 Ceiling Speaker?

Position EM180 along the ceiling edge according to the coverage design. Check the cutout, depth, ceiling support and safety attachments. Configure the 55 Hz high-pass filter at a minimum 12 dB/octave.

Can Corporate AV help specify EdgeMax EM180 Ceiling Speaker for a UAE project?

Share your EdgeMax EM180 Ceiling Speaker quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Bose EdgeMax EM180 Ceiling Speaker quotation in the UAE?

Contact Corporate AV about EdgeMax EM180 Ceiling Speaker (777189-0220). Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
