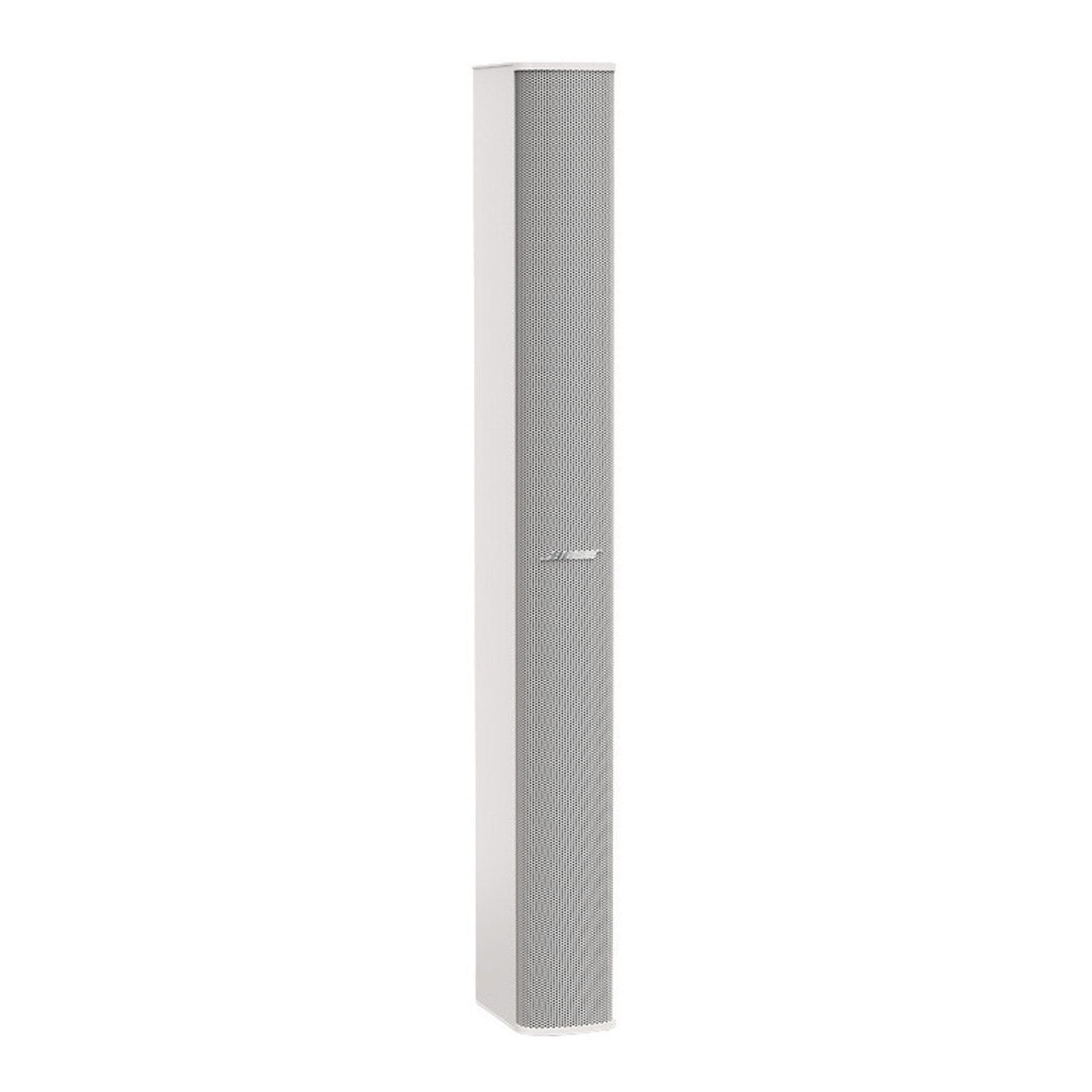

Bose MSA12X Powered Beam-Steering Speaker White
Model 787856-4210
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Drivers: 12 × 2.25-inch
- Integrated amplification: 12 × 50 W, 600 W total per module
- Horizontal coverage: 160°
- Vertical beam steering: ±20°; beam opening and steering are distinct settings
- Frequency range (-10 dB): 58 Hz–18 kHz
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose MSA12X Powered Beam-Steering Speaker White?
The white Bose MSA12X combines twelve individually amplified drivers with DSP beam steering. It directs vertical coverage electronically for presentation spaces, lecture halls and other rooms where sound reflections affect speech clarity. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
MSA12X is self-powered and self-processed, with 600 W of built-in amplification per module. It can use Dante or an analogue line input; two-beam operation requires Dante input.
- Frequency range (-10 dB): 58 Hz–18 kHz.
Use cases
Applications
-
Lecture and assembly halls
-
Worship and presentation rooms
-
Acoustically challenging speech spaces
Technical details
Technical Specifications
System
- Drivers
- 12 × 2.25-inch
- Drivers
- 12 × 2.25-inch.
Frequency
- Frequency range (-10 dB)
- 58 Hz–18 kHz
Performance & Coverage
- Horizontal coverage
- 160°
- Vertical beam steering
- ±20°; beam opening and steering are distinct settings
- Horizontal coverage
- 160°.
- Vertical beam steering
- ±20°; beam opening and steering are distinct settings.
Power
- Integrated amplification
- 12 × 50 W, 600 W total per module
- AC mains
- 85–264 V AC, 50/60 Hz
- Integrated amplification
- 12 × 50 W, 600 W total per module.
Connectivity
- Audio inputs
- Dante digital audio and analogue line input
Physical
- Dimensions (H × W × D)
- 984 × 106 × 206 mm
- Weight
- 14.5 kg
- Colour
- White
General
- Model
- MSA12X Powered Beam-Steering Speaker White
- Manufacturer part number
- 787856-4210
- Supported module array
- One, two or three linked modules
- Environment
- Indoor only
In the box
What's Included
-
One white MSA12X loudspeaker
-
Power cord
-
Power interconnect cable
-
RJ-50 expansion cable
-
Euroblock connector
-
Two wall/loudspeaker-mount bracket sets
-
Interconnect bracket
-
Yaw bracket
-
Twelve cable ties
-
Additional logo
-
Four extra M6 flange nuts
-
Eight M6 hex-head bolts
Installation
Installation & Mounting
Recommended Compatible Equipment

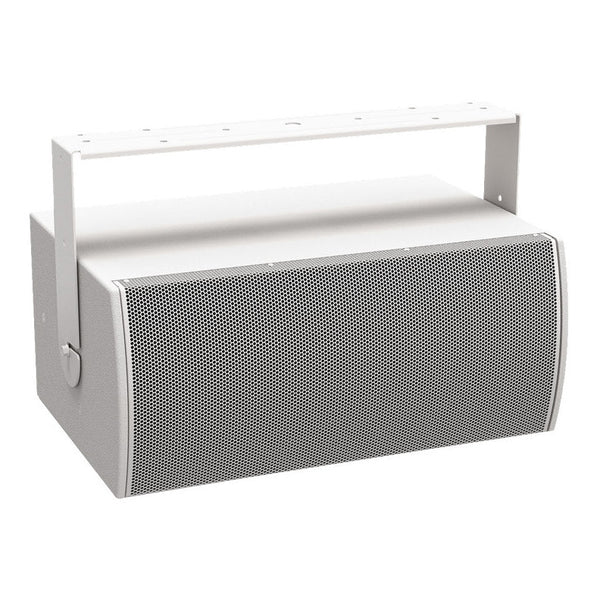

Bose MB210-WR Outdoor Subwoofer | Color: White. MB210-WR is a documented optional bass companion. It is passive and needs a dedicated suitable amplifier channel.
Bose PowerShareX PSX4804D Networkable Power Amplifier. PowerShareX PSX4804D can serve a correctly configured passive MB210-WR subwoofer channel; it is not required to power the MSA12X itself. Match the subwoofer preset, channel power and crossover to the design.
Installation
Plan the array with the MSA design workflow and commission it in ControlSpace Designer. Provide mains power, the selected audio connection and the structural mounting. Analogue input supports one beam; Dante is required for two-beam operation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your MSA12X Powered Beam-Steering Speaker White quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
