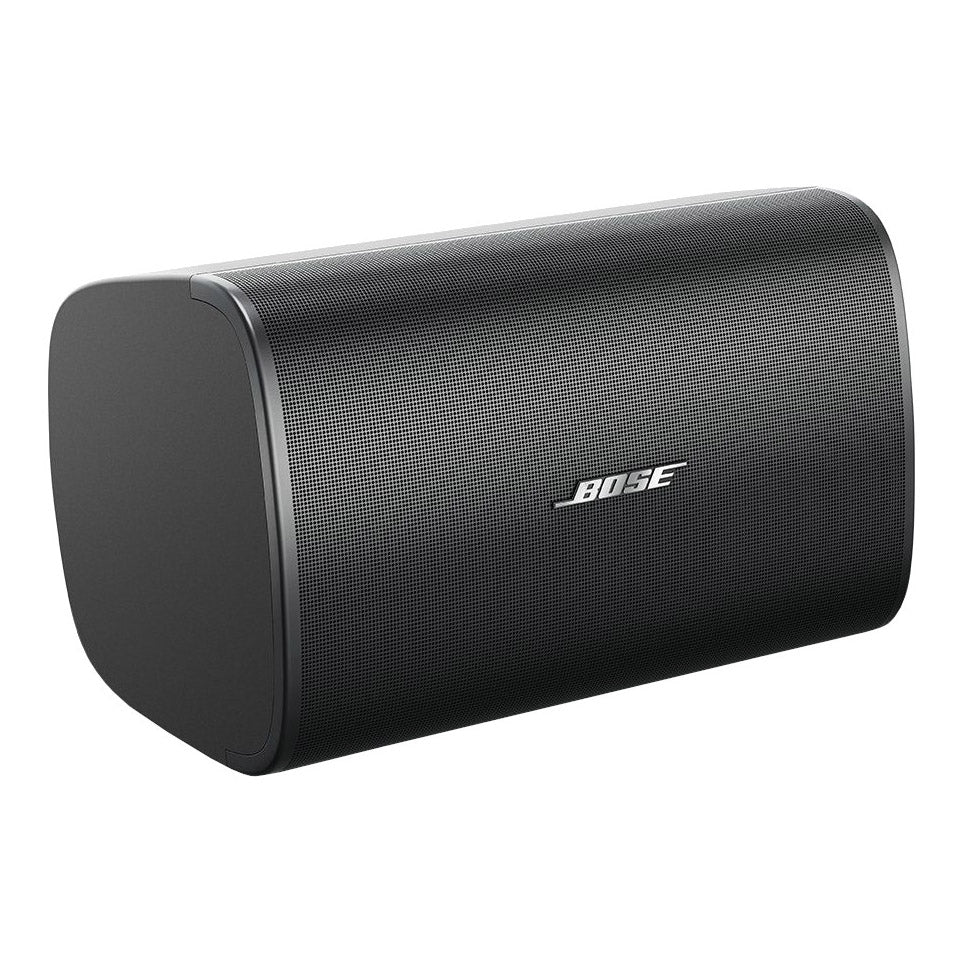

Bose DesignMax DM8S Surface-Mount Loudspeaker - Black

Model 801332-0110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Surface-Mount passive loudspeaker; single unit
  • Frequency range: 52 Hz – 20,000 Hz
  • 130° conical (1–4 kHz); indoor use
  • External amplifier required; match load, output mode and protection
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose DesignMax DM8S Surface-Mount Loudspeaker - Black
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose DesignMax DM8S?

The Bose DesignMax DM8S is a passive surface-mount loudspeaker for commercial music and speech systems. Bose lists the DM8S as discontinued; confirm remaining stock or a replacement model before ordering. Its published frequency range is 52 Hz – 20,000 Hz, with 130° conical (1–4 khz) coverage. The surface-mounted format allows the speaker position and aiming to be planned around the listening area. Corporate AV can specify the speakers, amplification and installation scope for your UAE project.

A passive loudspeaker needs an external amplifier; it does not connect directly to a phone, laptop or mains supply for audio playback. Choose the amplifier mode, loudspeaker layout and source equipment as one system.

Why this product

Key Benefits

  • Audio bandwidth

    52 Hz – 20,000 Hz frequency range (–10 dB); choose system levels and speaker spacing for the listening area.

  • Amplified system

    Passive design with 8 Ω (transformer bypass); 70/100 V transformer taps are also available.

  • Installation environment

    Indoor installation; follow the manufacturer's mounting and connector-protection instructions.

Use cases

Applications

  • Corporate spaces

    Plan coverage for reception, workplace music and voice announcements.

  • Retail and hospitality

    Select loudspeaker positions around the listener area and intended sound level.

  • Indoor audio fit-outs

    Coordinate speaker spacing, structural support and cable access with the room design.

Technical details

Technical Specifications

Frequency

Frequency Range (-10 dB)
52 Hz – 20,000 Hz
Low-Frequency
One 8-inch woofer
High-Frequency
One 1-inch compression driver

Performance & Coverage

Nominal Coverage
130° conical (1–4 kHz)
Coverage and format
130° conical (1–4 kHz); surface-mount loudspeaker format.

Power

Nominal Impedance
8 Ω (transformer bypass)
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5, 5, 10, 20, 40, 80 W, bypass

Physical

Finish
Black
Product Dimensions (H×W×D)
395 × 249 × 255 mm (without bracket)
Net Weight
10.3 kg (with grille)

General

Model
DM8S
Manufacturer Part Number
801332-0110
Recommended Protection
48 Hz high-pass filter, recommended 24 dB/octave
Environment
Indoor only
System protection
48 Hz high-pass filter, recommended 24 dB/octave

In the box

What's Included

  • One DesignMax DM8S loudspeaker

  • U-bracket

Installation

Installation & Mounting

Recommended Amplifier

Bose PowerSpace P4300+ Amplifier: The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured 70/100 V speaker circuit or supported low-impedance arrangement. Match the selected output mode, channel load, gain and protection to the DM8S; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.

Installation

Use the documented bracket and fasteners, check the supporting structure and set the aiming angle for the listening area. Confirm the exact SKU revision before selecting optional mounting accessories.

Ownership and support

Ownership & Support

Warranty

Confirm the warranty for the supplied regional SKU and installation environment on the quotation.

Support

Share the DM8S speaker quantity, room plan, source equipment and project location with Corporate AV. Include the amplifier, cabling and commissioning requirements for Dubai, Abu Dhabi or other UAE sites.

More details

Additional Information

Alternative Current Model

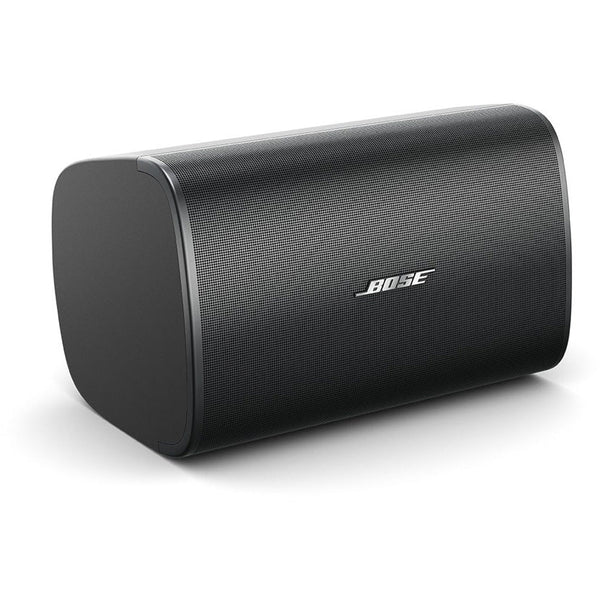

Bose DesignMax DM8SE Loudspeaker, Black is an alternative to review for a new project. Compare the installation drawing, mounting hardware, environment and system settings before substituting models.

Complete your solution

Recommended Accessories

Expert FAQs

Does the Bose DesignMax DM8S need an amplifier?

The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured 70/100 V speaker circuit or supported low-impedance arrangement. Match the selected output mode, channel load, gain and protection to the DM8S; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.

Can the DM8S be used on a 70/100 V speaker line?

Yes, using the correct transformer tap and amplifier output mode. The 100 V taps are 5, 10, 20, 40, 80 W, bypass. Do not use the transformer-bypass setting on a 70/100 V line.

Is the DM8S suitable for outdoor installation?

Bose specifies indoor use. An indoor speaker should not be substituted for an outdoor-rated model on an exposed terrace or landscape installation.

How should the DM8S be mounted?

Use the documented bracket and fasteners, check the supporting structure and set the aiming angle for the listening area. Confirm the exact SKU revision before selecting optional mounting accessories.

What is included with this DM8S listing?

This is a single-loudspeaker model. The listed supplied items are One DesignMax DM8S loudspeaker; U-bracket. Confirm the supplied regional pack and finish.

How many DM8S speakers can one amplifier support?

For a constant-voltage system, total the selected tap wattages on each channel and retain design headroom. For low-impedance wiring, calculate the combined load and power limits. The answer depends on the exact amplifier mode, speaker quantity and intended sound level.

Can Corporate AV design a complete DM8S system?

Provide the room plan, target listening areas and source equipment. Share the quantity, installation environment and UAE site so the amplifier, cabling, mounting and commissioning can be itemised together.
