Bose

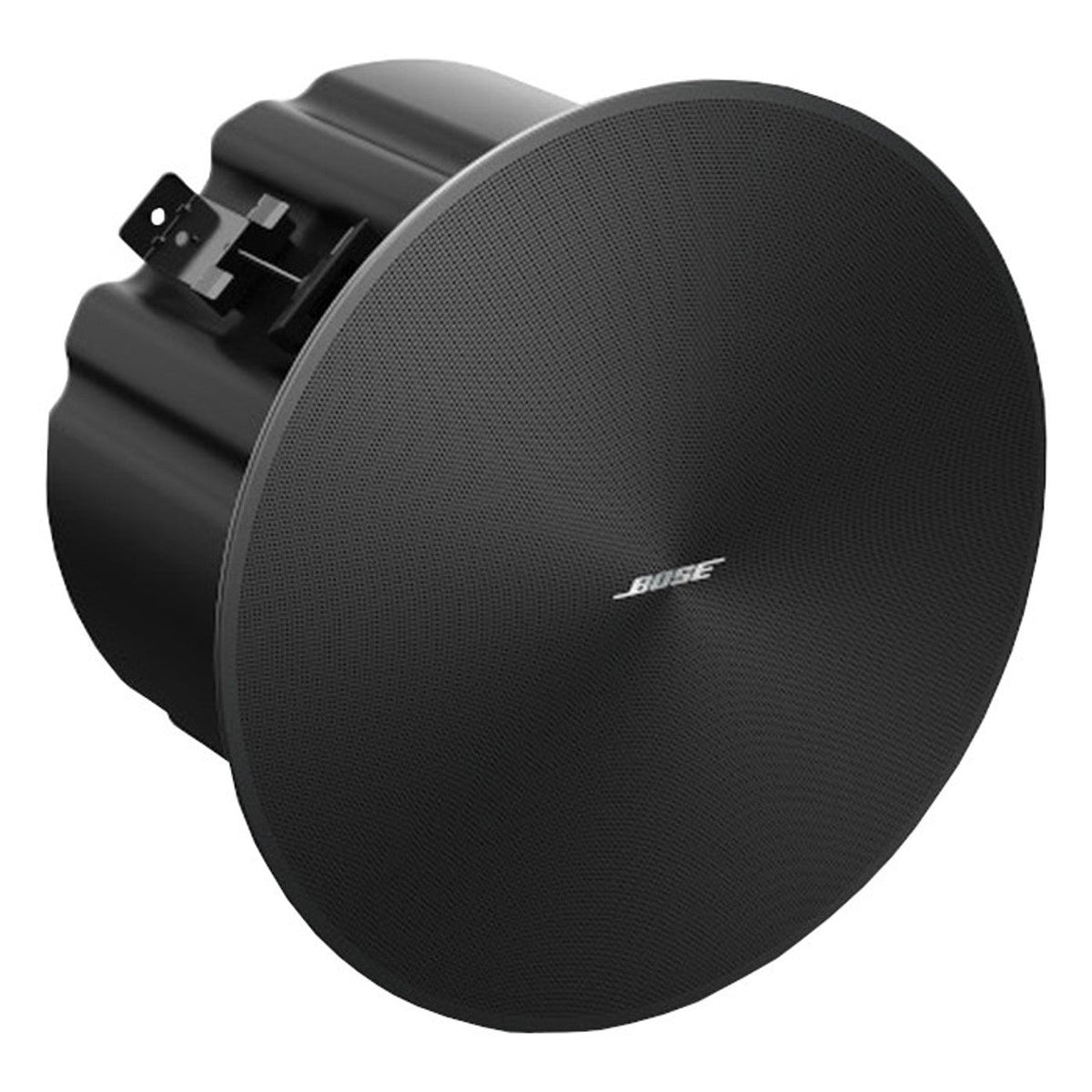

Bose DesignMax DM8C In-Ceiling Loudspeaker - Black

Model 802080-0110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • In-Ceiling passive loudspeaker; single unit
  • Frequency range: 52 Hz – 20,000 Hz
  • 135° conical; indoor use
  • External amplifier required; match load, output mode and protection
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose DesignMax DM8C In-Ceiling Loudspeaker - Black
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose DesignMax DM8C?

The Bose DesignMax DM8C is a passive in-ceiling loudspeaker for commercial music and speech systems. Its published frequency range is 52 Hz – 20,000 Hz, with 135° conical coverage. The ceiling-mounted format keeps the speaker integrated with the room finish. Corporate AV can specify the speakers, amplification and installation scope for your UAE project.

A passive loudspeaker needs an external amplifier; it does not connect directly to a phone, laptop or mains supply for audio playback. Choose the amplifier mode, loudspeaker layout and source equipment as one system.

Why this product

Key Benefits

  • Audio bandwidth

    52 Hz – 20,000 Hz frequency range (–10 dB); choose system levels and speaker spacing for the listening area.

  • Amplified system

    Passive design with 8 Ω (transformer bypass); 70/100 V transformer taps are also available.

  • Installation environment

    Indoor installation; follow the manufacturer's mounting and connector-protection instructions.

  • System protection

    Recommended high-pass protection 48 Hz with recommended 24 dB/octave filter; Overload protection; Resistor-network power reduction with automatic reset

Use cases

Applications

  • Corporate spaces

    Plan coverage for reception, workplace music and voice announcements.

  • Retail and hospitality

    Select loudspeaker positions around the listener area and intended sound level.

  • Indoor audio fit-outs

    Coordinate speaker spacing, structural support and cable access with the room design.

Technical details

Technical Specifications

Frequency

Frequency Range (-10 dB)
52 Hz – 20,000 Hz
Low-Frequency
1 × 8 in (203 mm) woofer
High-Frequency
1 × 1 in (25 mm) compression driver, coaxial center-firing

Performance & Coverage

Nominal Coverage
135° conical
Coverage and format
135° conical; in-ceiling loudspeaker format.

Power

Nominal Impedance
8 Ω (transformer bypass)
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass

Physical

Finish
Black
Suspension/Mounting
(3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
Product Dimensions (H×W×D)
16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth
Net Weight
21.1 lb (9.6 kg), loudspeaker with grille / 2.2 lb (1.0 kg), tile bridge

Environmental

Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)

General

Model
DM8C
Manufacturer Part Number
802080-0110
Ceiling Cutout
13.8 in (349 mm)
Recommended Protection
Recommended high-pass protection 48 Hz with recommended 24 dB/octave filter; Overload protection; Resistor-network power reduction with automatic reset
Environment
Indoor only

In the box

What's Included

  • One DesignMax DM8C loudspeaker

  • (1) tile bridge

  • (1) cutout template

Installation

Installation & Mounting

Recommended Amplifier

Bose PowerSpace P4300+ Amplifier: The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured 70/100 V speaker circuit or supported low-impedance arrangement. Match the selected output mode, channel load, gain and protection to the DM8C; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.

Installation

Check the 13.8 in (349 mm) ceiling opening, available backcan depth, tile-bridge support and independent fixing requirements against the installation drawing.

Ownership and support

Ownership & Support

Warranty

Confirm the warranty for the supplied regional SKU and installation environment on the quotation.

Support

Share the DM8C speaker quantity, room plan, source equipment and project location with Corporate AV. Include the amplifier, cabling and commissioning requirements for Dubai, Abu Dhabi or other UAE sites.

More details

Additional Information

Optional Construction Accessory

Bose DesignMax DM8C Rough-In Kit (6-pack) is an optional rough-in accessory for a new-construction ceiling. Confirm the ceiling type, required quantity and construction sequence; it is separate from the normal speaker pack.

Complete your solution

Recommended Accessories

Expert FAQs

Does the Bose DesignMax DM8C need an amplifier?

The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured 70/100 V speaker circuit or supported low-impedance arrangement. Match the selected output mode, channel load, gain and protection to the DM8C; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.

Can the DM8C be used on a 70/100 V speaker line?

Yes, using the correct transformer tap and amplifier output mode. The 100 V taps are 5, 10, 20, 40, 80 W, bypass. Do not use the transformer-bypass setting on a 70/100 V line.

Is the DM8C suitable for outdoor installation?

Bose specifies indoor use. An indoor speaker should not be substituted for an outdoor-rated model on an exposed terrace or landscape installation.

How should the DM8C be mounted?

Check the 13.8 in (349 mm) ceiling opening, available backcan depth, tile-bridge support and independent fixing requirements against the installation drawing.

What is included with this DM8C listing?

This is a single-loudspeaker model. The listed supplied items are One DesignMax DM8C loudspeaker; (1) tile bridge; (1) cutout template. Confirm the supplied regional pack and finish.

How many DM8C speakers can one amplifier support?

For a constant-voltage system, total the selected tap wattages on each channel and retain design headroom. For low-impedance wiring, calculate the combined load and power limits. The answer depends on the exact amplifier mode, speaker quantity and intended sound level.

Can Corporate AV design a complete DM8C system?

Provide the room plan, target listening areas and source equipment. Share the quantity, installation environment and UAE site so the amplifier, cabling, mounting and commissioning can be itemised together.

How can I request a Bose DesignMax DM8C quotation in the UAE?

Ask Corporate AV for Bose DM8C (802080-0110), the required quantity and your project requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, lead time, warranty and the complete supply or installation scope on the quotation.
