Bose

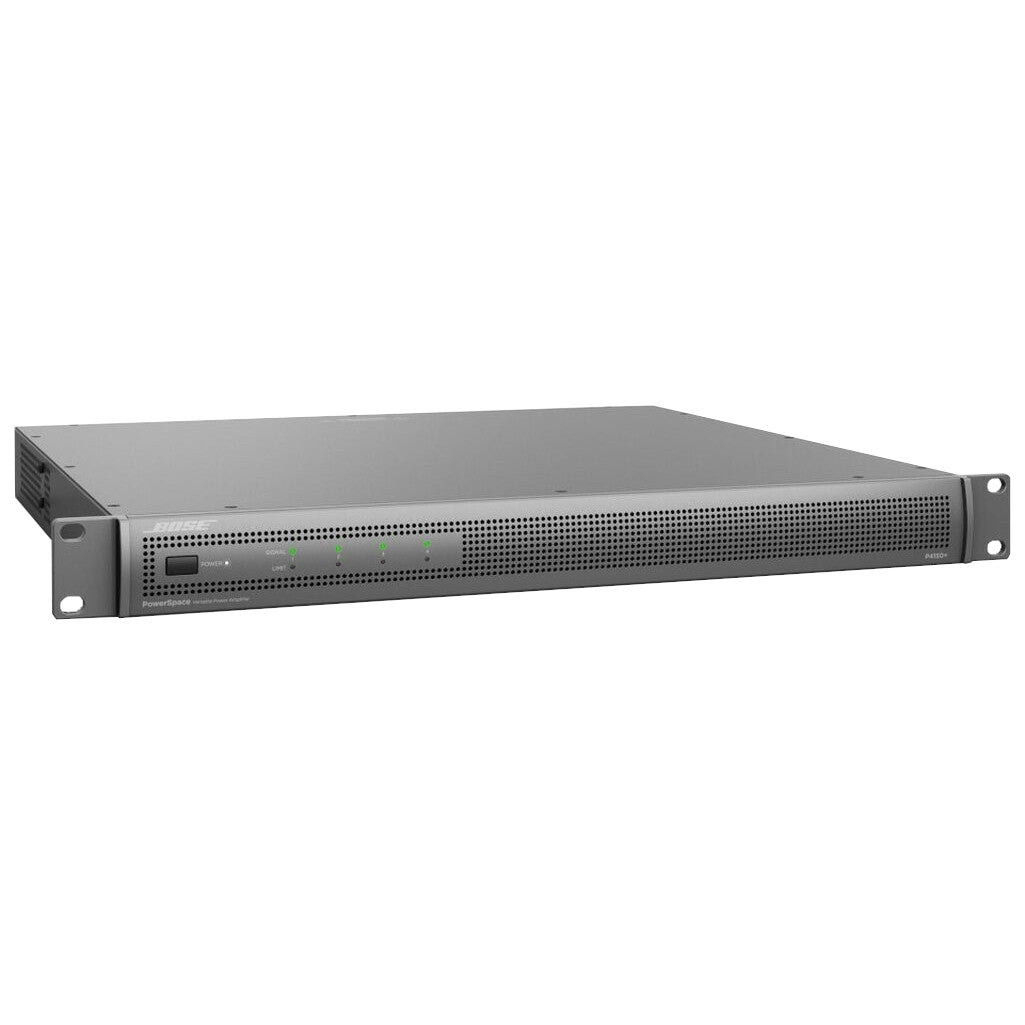

Bose PowerSpace P4150+ 4-Channel DSP Amplifier

Model 810965-4110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 4 amplified output channels; Supported low-impedance and 70/100 V modes
  • 150 W
  • Onboard processing; configure the speaker protection
  • 100–240 VAC (±10%), 50/60 Hz
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose PowerSpace P4150+ 4-Channel DSP Amplifier
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose PowerSpace P4150+?

The Bose PowerSpace P4150+ is a multichannel DSP amplifier that combines amplification, routing and loudspeaker processing for commercial audio zones. The published output rating is 150 W. Corporate AV can specify the speaker circuits, source equipment and installation scope for your UAE project.

This amplifier drives compatible passive loudspeakers as part of an installed sound system. It does not include the speakers, source devices or complete site wiring. Configure routing, EQ and protection through the browser-based PowerSpace+ Configuration Utility. Match each output mode to the connected speaker circuit.

Why this product

Key Benefits

  • Loudspeaker connection

    Supported low-impedance and 70/100 V modes; calculate each speaker circuit before connection.

  • System setup

    Configure routing, EQ and protection through the browser-based PowerSpace+ Configuration Utility. Match each output mode to the connected speaker circuit.

  • System integration

    Specify the source, amplification, speaker load and room controls as one complete system.

Use cases

Applications

  • Commercial music and paging

    Plan speaker loads and operating levels around the required zones.

  • Corporate and hospitality spaces

    Specify sources, room controls and cabling alongside the amplifier.

  • Installed audio upgrades

    Check the existing speaker type, line voltage and processing before substituting an amplifier.

Technical details

Technical Specifications

System

Output Configuration
Supported low-impedance and 70/100 V modes
DSP / Processing
Onboard processing; configure for the connected speakers
Configuration Software
PowerSpace+ Configuration Utility (web browser)

Connectivity

Amplified Output Channels
4
Rated Output
150 W
Analogue Input Channels
4 balanced, 2 unbalanced
Mains Input
100–240 VAC (±10%), 50/60 Hz
Output design
150 W

Physical

Dimensions (H × W × D)
1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)
Net Weight
14.6 lb (6.6 kg)

General

Model
PowerSpace P4150+
Manufacturer Part Number
810965-4110

In the box

What's Included

  • (1) 2-pin Euroblock connector

  • (1) 4-pin Euroblock connector

  • (2) I-Share jumpers

  • (10) terminal forks, 14–16 AWG

  • (5) 3-pin Euroblock connectors

  • (1) IEC power cord

  • (1) installation guide

  • (1) PowerSpace P4150+

Installation

Installation & Mounting

Recommended Compatible Loudspeaker

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair) is a compatible passive-speaker option using its appropriate 70/100 V tap. Total the selected tap wattages per amplifier channel, retain design headroom and configure the required protection.

Installation

Check speaker type, output mode, load, signal routing, protection settings, ventilation and the available electrical supply before commissioning. Configure routing, EQ and protection through the browser-based PowerSpace+ Configuration Utility. Match each output mode to the connected speaker circuit.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty and service arrangements for the supplied SKU. Identify any optional support plan separately.

Support

Provide the PowerSpace P4150+ quantity, speaker schedule, source equipment and site location for an itemised Corporate AV proposal in Dubai, Abu Dhabi or another UAE emirate.

More details

Additional Information

Optional Room Control

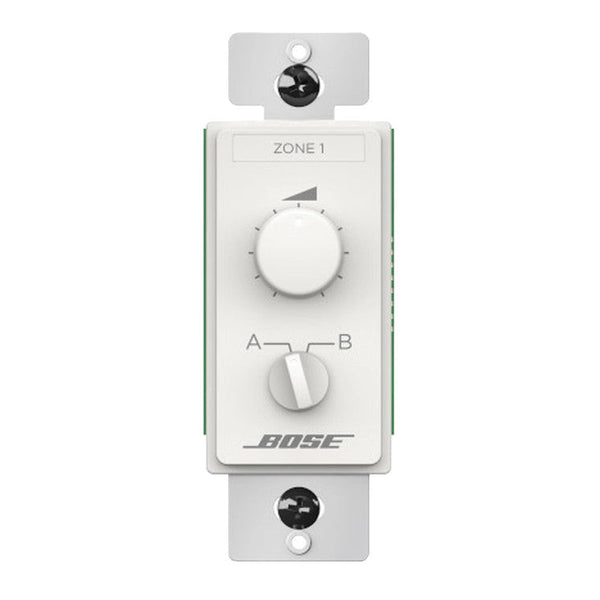

ControlCenter CC-2 Zone Controller provides a supported remote-control option for the amplifier. Configure the required volume and source functions and specify the wall box and control cable separately.

Complete your solution

Recommended Accessories

Expert FAQs

What output power does the Bose P4150+ provide?

150 W. Output depends on the documented load and operating mode; do not treat a shared total as the power available independently on every channel.

What type of loudspeaker wiring can I use with P4150+?

Supported low-impedance and 70/100 V modes. Match the amplifier setting to the speaker circuit, calculate the complete load and apply the manufacturer's protection settings. Do not assume HZ and LZ models are interchangeable.

Does P4150+ include DSP or require separate processing?

Configure routing, EQ and protection through the browser-based PowerSpace+ Configuration Utility. Match each output mode to the connected speaker circuit.

Does P4150+ include network or wireless audio?

Use the published wired input interfaces. A Bluetooth or Dante connection should not be assumed unless it is explicitly specified or supplied.

Which speakers can I consider with P4150+?

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair). is a compatible passive-speaker option using its appropriate 70/100 V tap. Total the selected tap wattages per amplifier channel, retain design headroom and configure the required protection.

How many speakers can P4150+ support?

For 70/100 V systems, total each speaker's selected transformer tap per channel and allow the required headroom. For low-impedance systems, calculate the combined impedance and power requirements. Quantity depends on the complete design rather than the number of output terminals.

What is included with P4150+?

The supplied pack lists (1) 2-pin Euroblock connector; (1) 4-pin Euroblock connector; (2) I-Share jumpers; (10) terminal forks, 14–16 AWG; (5) 3-pin Euroblock connectors; (1) IEC power cord; (1) installation guide; (1) PowerSpace P4150+. Confirm the exact regional cord and connectors. Other system equipment is separate unless itemised on the quotation.

How can I request a Bose PowerSpace P4150+ quotation in the UAE?

Ask Corporate AV for PowerSpace P4150+, the quantity and your speaker-circuit requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, warranty, lead time and installation scope on the quotation.
