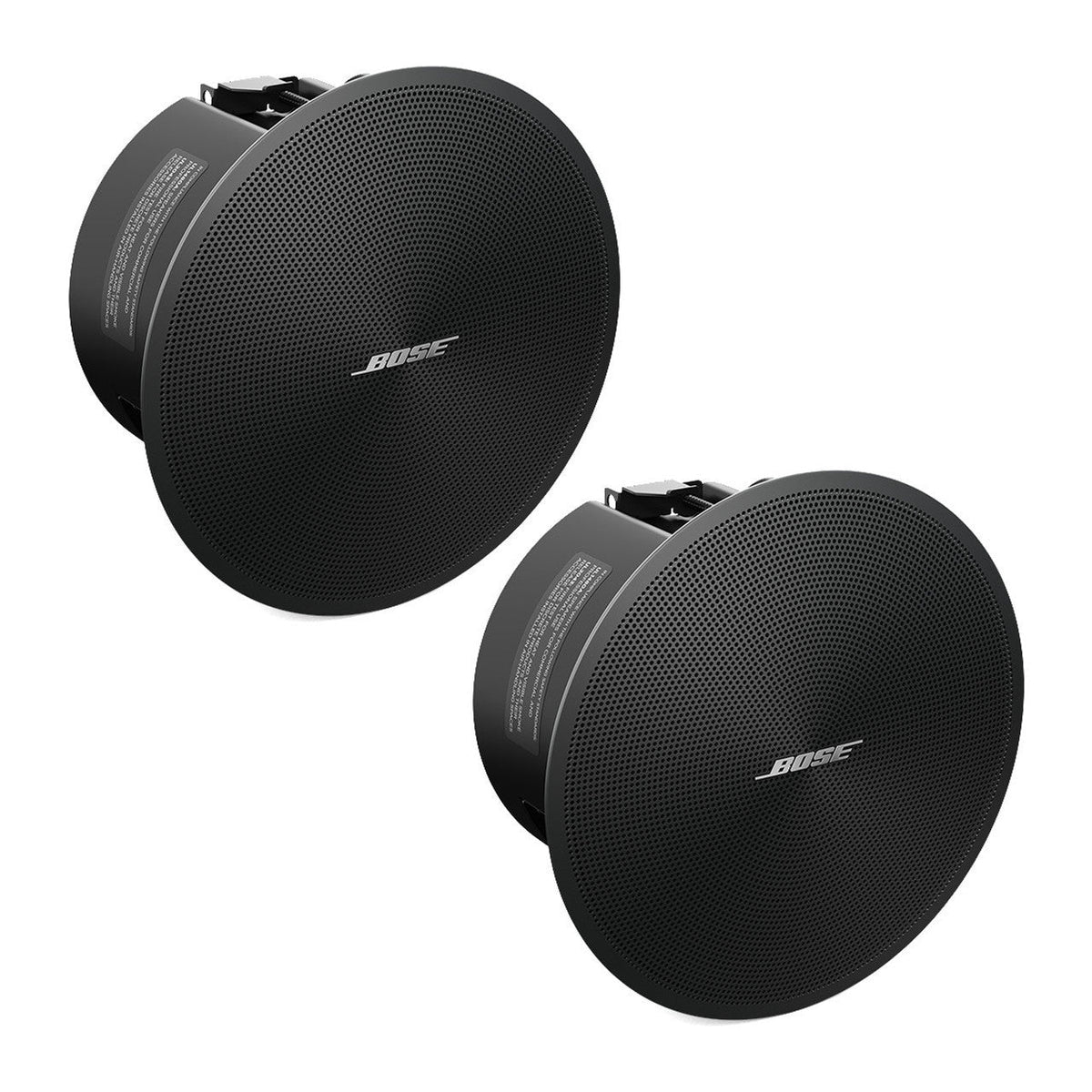

Bose DesignMax DM2C-LP In-Ceiling Loudspeaker - Black (Pair)
Model 815011-0110
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- In-Ceiling passive loudspeaker; pair pack
- Frequency range: 85 Hz – 19,000 Hz
- 150° conical; indoor use
- External amplifier required; match load, output mode and protection
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose DesignMax DM2C-LP?
The Bose DesignMax DM2C-LP is a passive in-ceiling loudspeaker for commercial music and speech systems. Its published frequency range is 85 Hz – 19,000 Hz, with 150° conical coverage. The ceiling-mounted format keeps the speaker integrated with the room finish. Corporate AV can specify the speakers, amplification and installation scope for your UAE project.
A passive loudspeaker needs an external amplifier; it does not connect directly to a phone, laptop or mains supply for audio playback. Choose the amplifier mode, loudspeaker layout and source equipment as one system.
Why this product
Key Benefits
-
Audio bandwidth
85 Hz – 19,000 Hz frequency range (–10 dB); choose system levels and speaker spacing for the listening area.
-
Amplified system
Passive design with 16 Ω (transformer bypass); 70/100 V transformer taps are also available.
-
Installation environment
Indoor installation; follow the manufacturer's mounting and connector-protection instructions.
-
System protection
Recommended high-pass protection 85 Hz with recommended 24 dB/octave filter
Use cases
Applications
-
Corporate spaces
Plan coverage for reception, workplace music and voice announcements.
-
Retail and hospitality
Select loudspeaker positions around the listener area and intended sound level.
-
Indoor audio fit-outs
Coordinate speaker spacing, structural support and cable access with the room design.
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 85 Hz – 19,000 Hz
- Low-Frequency
- 1 × 2.25 in (57 mm) woofer
Performance & Coverage
- Nominal Coverage
- 150° conical
- Coverage and format
- 150° conical; in-ceiling loudspeaker format.
Power
- Nominal Impedance
- 16 Ω (transformer bypass)
- Transformer Taps, 100V
- 2.3, 4.5, 9 W, bypass
- Transformer Taps, 70V
- 1.2W, 2.3 W, 4.5 W, 9 W, bypass
Physical
- Finish
- Black
- Suspension/Mounting
- (2) QuickHold spring-loaded mounting arms, (2) safety cable attachment points
- Product Dimensions (H×W×D)
- 7.8 in × 4.3 in (198 mm × 110 mm), loudspeaker diameter × depth / 6.1 in × 3.9 in (155 mm × 99 mm), backcan diameter × depth
- Net Weight
- 3.6 lb (1.6 kg), loudspeaker with grille (single) / 0.7 kg (1.6 lb), tile bridge (single)
Environmental
- Operating Temperature Range
- 0 °C to 50 °C (32 °F to 122 °F)
General
- Model
- DM2C-LP
- Manufacturer Part Number
- 815011-0110
- Ceiling Cutout
- 6.5 in (165 mm)
- Recommended Protection
- Recommended high-pass protection 85 Hz with recommended 24 dB/octave filter
- Environment
- Indoor only
In the box
What's Included
-
(1) cutout template
-
(2) DesignMax DM2C-LP loudspeakers
-
(2) tile bridges
-
(1) installation guide
-
(2) black grilles — confirm the supplied legacy pack
Installation
Installation & Mounting
Recommended Amplifier
Bose PowerSpace P4300+ Amplifier: The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured 70/100 V speaker circuit or supported low-impedance arrangement. Match the selected output mode, channel load, gain and protection to the DM2C-LP; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.
Installation
Check the 6.5 in (165 mm) ceiling opening, available backcan depth, tile-bridge support and independent fixing requirements against the installation drawing.
Ownership and support
Ownership & Support
Warranty
Confirm the warranty for the supplied regional SKU and installation environment on the quotation.
Support
Share the DM2C-LP speaker quantity, room plan, source equipment and project location with Corporate AV. Include the amplifier, cabling and commissioning requirements for Dubai, Abu Dhabi or other UAE sites.
More details
Additional Information
Optional Construction Accessory
Bose DesignMax DM2C Rough-In Kit (6-pack) is an optional rough-in accessory for a new-construction ceiling. Confirm the ceiling type, required quantity and construction sequence; it is separate from the normal speaker pack.
