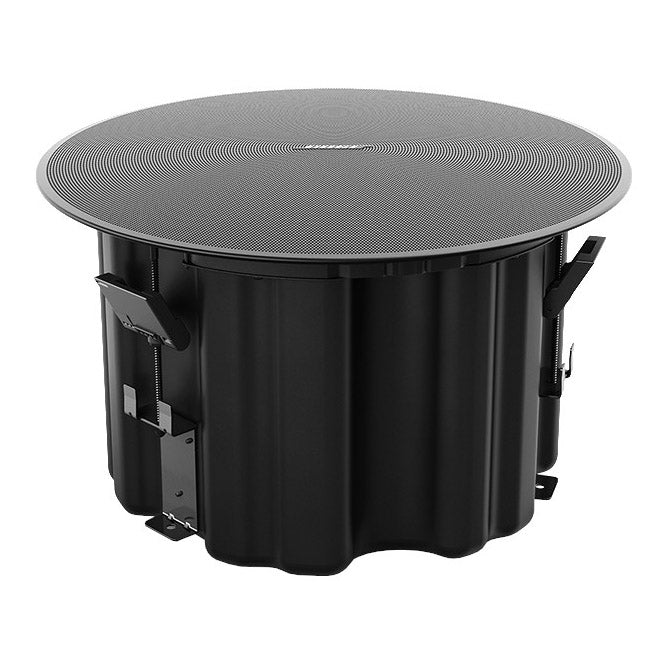

Bose DesignMax DM8C-Sub In-Ceiling Subwoofer - White
Model 829380-0210
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- In-Ceiling passive subwoofer; single unit
- Frequency range: 38 Hz – 115 Hz
- Omnidirectional below 200 Hz; indoor use
- External amplifier required; match load, output mode and protection
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose DesignMax DM8C-Sub?
The Bose DesignMax DM8C-Sub is a passive in-ceiling subwoofer for adding low-frequency coverage to a complete installed sound system. Its published frequency range is 38 Hz – 115 Hz. The ceiling-mounted format keeps the speaker integrated with the room finish. Corporate AV can specify the speakers, amplification and installation scope for your UAE project.
A passive subwoofer needs an external amplifier; it does not connect directly to a phone, laptop or mains supply for audio playback. This model supplies bass and must work with suitable main loudspeakers.
Why this product
Key Benefits
-
Audio bandwidth
38 Hz – 115 Hz frequency range (–10 dB); use with suitable full-range loudspeakers and crossover settings.
-
Coverage and format
Omnidirectional below 200 Hz; in-ceiling subwoofer format.
-
Amplified system
Passive design with 8 Ω (transformer bypass); 70/100 V transformer taps are also available.
-
Installation environment
Indoor installation; follow the manufacturer's mounting and connector-protection instructions.
-
System protection
Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
Use cases
Applications
-
Installed music systems
Add a separately amplified bass channel to a system with matching full-range loudspeakers.
-
Hospitality interiors
Plan bass coverage, mounting and crossover settings around the room.
-
Retail fit-outs
Specify the subwoofer alongside the main loudspeakers, DSP and amplifier channels.
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 38 Hz – 115 Hz
- Low-Frequency
- 1 × 8 in (203 mm) woofer
Performance & Coverage
- Nominal Coverage
- Omnidirectional below 200 Hz
Power
- Nominal Impedance
- 8 Ω (transformer bypass)
- Transformer Taps, 100V
- 40, 80, 150 W, bypass
- Transformer Taps, 70V
- 20 W, 40 W, 80 W, 150 W, bypass
Physical
- Finish
- White
- Suspension/Mounting
- (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
- Product Dimensions (H×W×D)
- 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth
- Net Weight
- 21.9 lb (9.9 kg), loudspeaker with grille (single) / 2.2 lb (1.0 kg), tile bridge (single)
Environmental
- Operating Temperature Range
- 0 °C to 50 °C (32 °F to 122 °F)
General
- Model
- DM8C-Sub
- Manufacturer Part Number
- 829380-0210
- Ceiling Cutout
- 13.8 in (349 mm)
- Recommended Protection
- Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
- Environment
- Indoor only
In the box
What's Included
-
One DesignMax DM8C-Sub subwoofer
-
(1) tile bridge
-
(1) cutout template
Installation
Installation & Mounting
Recommended Amplifier
Bose PowerSpace P4300+ Amplifier: The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured 70/100 V speaker circuit or supported low-impedance arrangement. Match the selected output mode, channel load, gain and protection to the DM8C-Sub; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.
Recommended Full-Range Loudspeaker

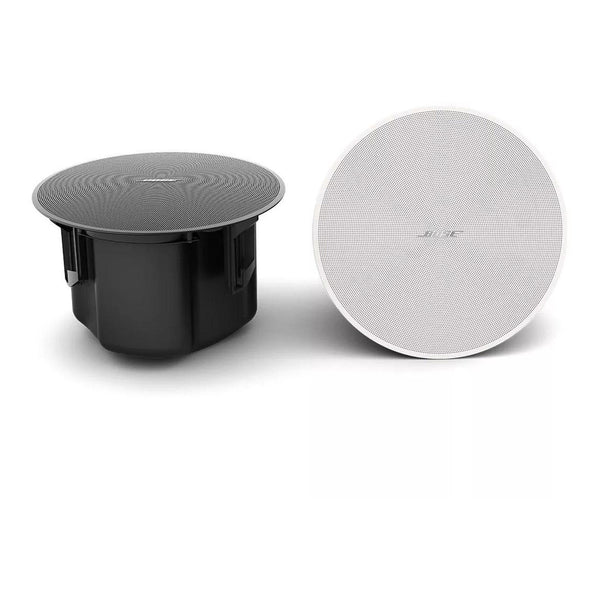

Bose DM5C DesignMax Loudspeakers | Color: White is a main-loudspeaker option for a system that also needs midrange and high-frequency coverage. Specify the amplifier channels, crossover and level alignment for the complete system. Sold separately.
Installation
Check the 13.8 in (349 mm) ceiling opening, available backcan depth, tile-bridge support and independent fixing requirements against the installation drawing.
Ownership and support
Ownership & Support
Warranty
Confirm the warranty for the supplied regional SKU and installation environment on the quotation.
Support
Share the DM8C-Sub speaker quantity, room plan, source equipment and project location with Corporate AV. Include the amplifier, cabling and commissioning requirements for Dubai, Abu Dhabi or other UAE sites.
More details
Additional Information
Optional Construction Accessory

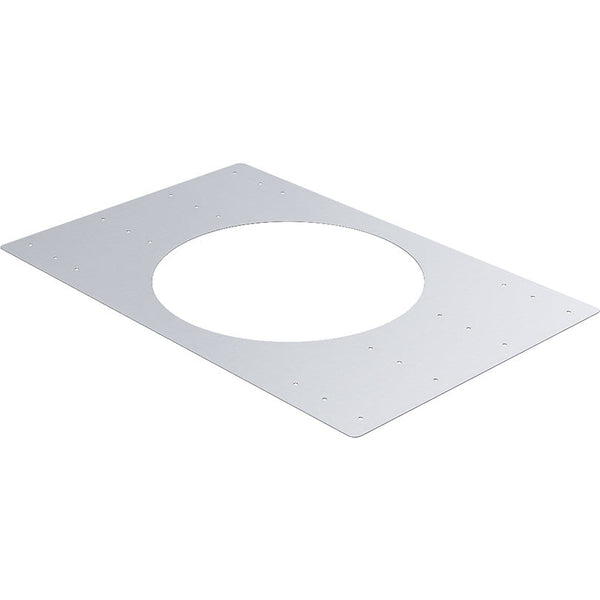

Bose DesignMax DM8C Rough-In Kit (6-pack) is an optional rough-in accessory for a new-construction ceiling. Confirm the ceiling type, required quantity and construction sequence; it is separate from the normal speaker pack.
