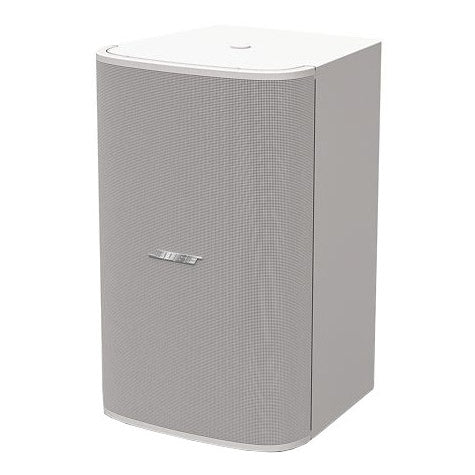

Bose DesignMax DM10S-Sub Surface-Mount Subwoofer - White
Model 831856-0210
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Surface-Mount passive subwoofer; single unit
- Frequency range: 35 Hz – 125 Hz
- Omnidirectional below 200 Hz; indoor use
- External amplifier required; match load, output mode and protection
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose DesignMax DM10S-Sub?
The Bose DesignMax DM10S-Sub is a passive surface-mount subwoofer for adding low-frequency coverage to a complete installed sound system. Its published frequency range is 35 Hz – 125 Hz. The surface-mounted format allows the speaker position and aiming to be planned around the listening area. Corporate AV can specify the speakers, amplification and installation scope for your UAE project.
A passive subwoofer needs an external amplifier; it does not connect directly to a phone, laptop or mains supply for audio playback. This model supplies bass and must work with suitable main loudspeakers.
Why this product
Key Benefits
-
Audio bandwidth
35 Hz – 125 Hz frequency range (–10 dB); use with suitable full-range loudspeakers and crossover settings.
-
Coverage and format
Omnidirectional below 200 Hz; surface-mount subwoofer format.
-
Amplified system
Passive design with 8 Ω (transformer bypass); 70/100 V transformer taps are also available.
-
Installation environment
Indoor installation; follow the manufacturer's mounting and connector-protection instructions.
-
System protection
Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
Use cases
Applications
-
Installed music systems
Add a separately amplified bass channel to a system with matching full-range loudspeakers.
-
Hospitality interiors
Plan bass coverage, mounting and crossover settings around the room.
-
Retail fit-outs
Specify the subwoofer alongside the main loudspeakers, DSP and amplifier channels.
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 35 Hz – 125 Hz
- Low-Frequency
- 1 × 10 in (254 mm) woofer
Performance & Coverage
- Nominal Coverage
- Omnidirectional below 200 Hz
Power
- Nominal Impedance
- 8 Ω (transformer bypass)
- Transformer Taps, 100V
- 40, 80, 150 W, bypass
- Transformer Taps, 70V
- 20 W, 40 W, 80 W, 150 W, bypass
Physical
- Finish
- White
- Suspension/Mounting
- QuickHold mounting system with included U-Bracket, (1) M8 safety cable attachment insert
- Product Dimensions (H×W×D)
- 19.8 in × 12.5 in × 12.7 in (502 mm × 316 mm × 323 mm), loudspeaker / 19.8 in × 12.5 in × 13.6 in (502 mm × 316 mm × 346 mm), loudspeaker with bracket
- Net Weight
- 35.5 lb (16.1 kg), loudspeaker with grille & bracket
Environmental
- Operating Temperature Range
- 0 °C to 50 °C (32 °F to 122 °F)
General
- Model
- DM10S-Sub
- Manufacturer Part Number
- 831856-0210
- Recommended Protection
- Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
- Environment
- Indoor only
In the box
What's Included
-
(1) U-bracket
-
(1) DesignMax DM10S-SUB subwoofer
-
(1) installation guide
-
(2) rubber caps
-
(2) M8 screws
Installation
Installation & Mounting
Recommended Amplifier
Bose PowerSpace P4300+ Amplifier: The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured 70/100 V speaker circuit or supported low-impedance arrangement. Match the selected output mode, channel load, gain and protection to the DM10S-Sub; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.
Recommended Full-Range Loudspeaker
Bose DesignMax DM5SE Surface Mount Speaker White is a main-loudspeaker option for a system that also needs midrange and high-frequency coverage. Specify the amplifier channels, crossover and level alignment for the complete system. Sold separately.
Installation
Use the documented bracket and fasteners, check the supporting structure and set the aiming angle for the listening area. Confirm the exact SKU revision before selecting optional mounting accessories.
Ownership and support
Ownership & Support
Warranty
Confirm the warranty for the supplied regional SKU and installation environment on the quotation.
Support
Share the DM10S-Sub speaker quantity, room plan, source equipment and project location with Corporate AV. Include the amplifier, cabling and commissioning requirements for Dubai, Abu Dhabi or other UAE sites.
