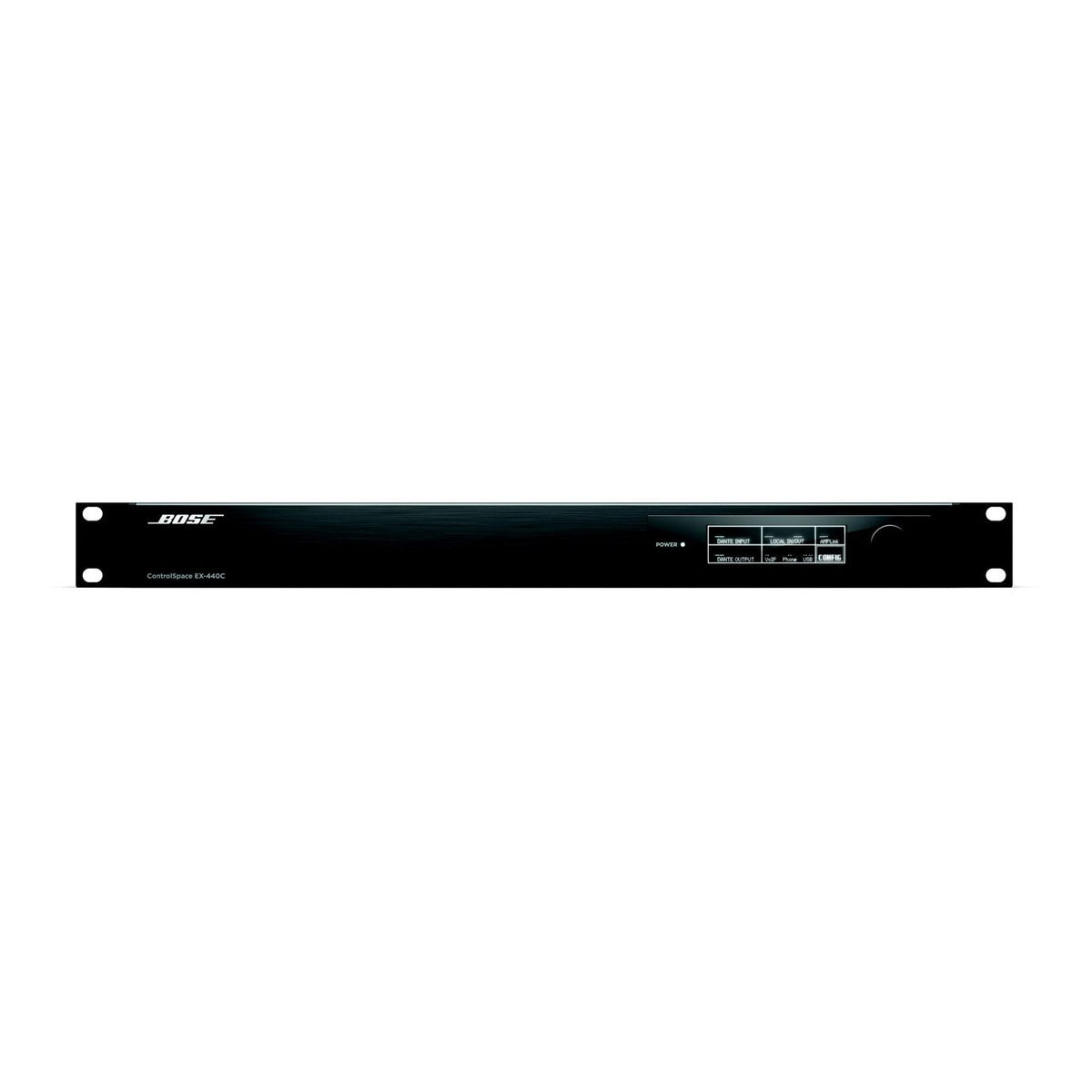

Bose ControlSpace EX-440C Conferencing DSP
Model 834315-4110
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Analogue Audio Inputs: 4 balanced, mic/line
- Analogue Line Outputs: 4 balanced, line
- Digital Audio: 16 Dante in × 16 Dante out, primary/secondary / 4 AmpLink out
- AEC: 8 channels
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose ControlSpace EX-440C?
The Bose ControlSpace EX-440C is an open-architecture conferencing processor with acoustic echo cancellation for a commissioned room-audio system. Corporate AV can specify the compatible equipment, cabling and configuration for a project in Dubai, Abu Dhabi or elsewhere in the UAE.
This conferencing DSP is one component of a complete audio installation. Create and commission the signal-routing and processing design for the actual microphones, sources, outputs and network. A processor is not a power amplifier, and AEC or network-channel availability must be matched to the selected model.
- Digital Audio: 16 Dante in × 16 Dante out, primary/secondary / 4 AmpLink out.
- System specification: Include the device, compatible interfaces, power and commissioning requirements in the equipment schedule.
Use cases
Applications
-
Commercial audio systems
Coordinate the device with the specified source, control and output equipment.
-
Corporate AV projects
Plan the wiring, equipment locations and operating requirements before installation.
-
System upgrades
Confirm compatibility with the existing model, firmware and signal connections.
Technical details
Technical Specifications
System
- Configuration
- ControlSpace Designer; confirm supported software/firmware
Connectivity
- Analogue Audio Inputs
- 4 balanced, mic/line
- Analogue Line Outputs
- 4 balanced, line
- USB
- Micro-B type, stereo in/out, HID support
- Mains Input
- 85–264 VAC, 50/60 Hz
- Analogue Audio Inputs
- 4 balanced, mic/line.
- Analogue Line Outputs
- 4 balanced, line.
Physical
- Dimensions (H × W × D)
- 1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm)
General
- Model
- ControlSpace EX-440C
- Manufacturer Part Number
- 834315-4110
- Digital Audio
- 16 Dante in × 16 Dante out, primary/secondary / 4 AmpLink out
- AEC
- 8 channels
- PSTN
- RJ-11, 1 line, Tx/Rx (transmit/receive)
- VoIP
- RJ-45, 1 line
- AEC
- 8 channels.
In the box
What's Included
-
(1) ControlSpace EX-440C
-
(4) 6-pin Euroblock connectors
-
(1) 2-pin Euroblock connector
-
(1) 3-pin Euroblock connector
-
(6) cable ties
-
(1) installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose PowerShareX PSX1204D 4-Channel DSP Amplifier is a compatible Dante/analogue amplification option for the designed output path. Match the network routing, channel count, speaker loads and amplifier quantity to the room system.

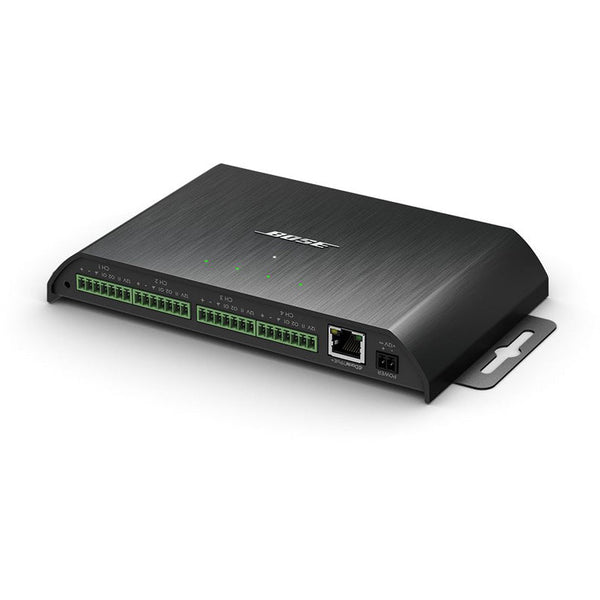

Bose ControlSpace EX-4ML Microphone/GPIO Dante Endpoint adds microphone/line inputs through a documented Dante endpoint arrangement. Confirm the microphone wiring, control logic and network/power requirements.
Installation
Create and commission the signal-routing and processing design for the actual microphones, sources, outputs and network. A processor is not a power amplifier, and AEC or network-channel availability must be matched to the selected model.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share the ControlSpace EX-440C quantity, existing equipment, required audio functions and project location with Corporate AV for an itemised supply and commissioning proposal.
