Bose

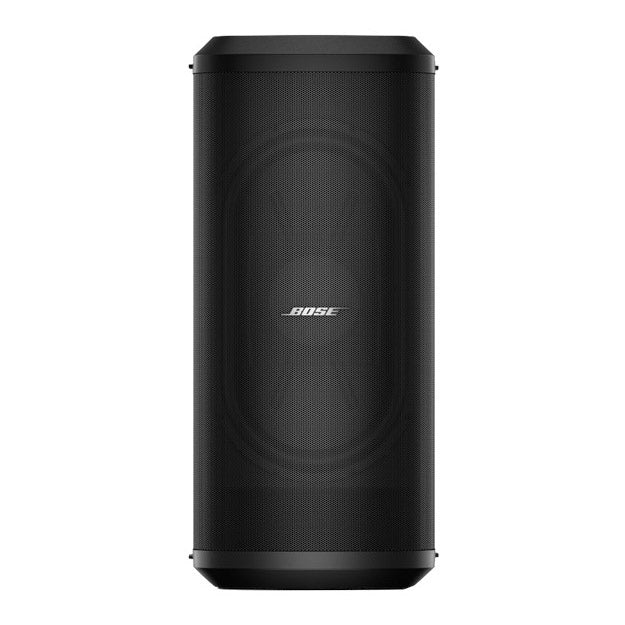

Bose Sub2 Powered Bass Module

Model 840917-4100

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Driver: 10 × 18-inch RaceTrack
  • Frequency range (-10 dB): 29–260 Hz
  • Amplification: Built in; external speaker power amplifier not required
  • Connections: Line-level audio; SubMatch for documented L1 Pro32 use
  • AC mains: 100–240 V AC, 50/60 Hz
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose Sub2 Powered Bass Module
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose Sub2 Powered Bass Module?

Bose Sub2 is a powered portable subwoofer using a 10 × 18-inch RaceTrack driver. It can extend a compatible portable PA through line-level connections or join an L1 Pro32 system through the documented SubMatch arrangement. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

Bose Sub2 is a powered portable subwoofer using a 10 × 18-inch RaceTrack driver.

Why this product

Key Benefits

  • Frequency range (-10 dB)

    29–260 Hz.

  • Amplification

    Built in; external speaker power amplifier not required.

  • Connections

    Line-level audio; SubMatch for documented L1 Pro32 use.

Use cases

Applications

  • Portable PA bass extension

  • Business events and live music

  • L1 Pro32 system expansion

Technical details

Technical Specifications

System

Driver
10 × 18-inch RaceTrack
Driver
10 × 18-inch RaceTrack.

Frequency

Frequency range (-10 dB)
29–260 Hz

Power

Amplification
Built in; external speaker power amplifier not required
AC mains
100–240 V AC, 50/60 Hz
AC mains
100–240 V AC, 50/60 Hz.

Connectivity

Connections
Line-level audio; SubMatch for documented L1 Pro32 use
Pole interface
Threaded mount for specified pole

Physical

Dimensions (H × W × D)
694 × 317 × 551 mm
Weight
23.0 kg

General

Model
Sub2 Powered Bass Module
Manufacturer part number
840917-4100

In the box

What's Included

  • One Sub2 powered bass module

  • IEC power cord

  • Slip cover

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose SubMatch Cable. SubMatch is the dedicated connection accessory for the documented L1 Pro32 arrangement. It is not a general-purpose speaker cable.

Bose Sub1/Sub2 Adjustable Speaker Pole. Use the specified adjustable pole only with a compatible top speaker and a stable, load-checked arrangement.

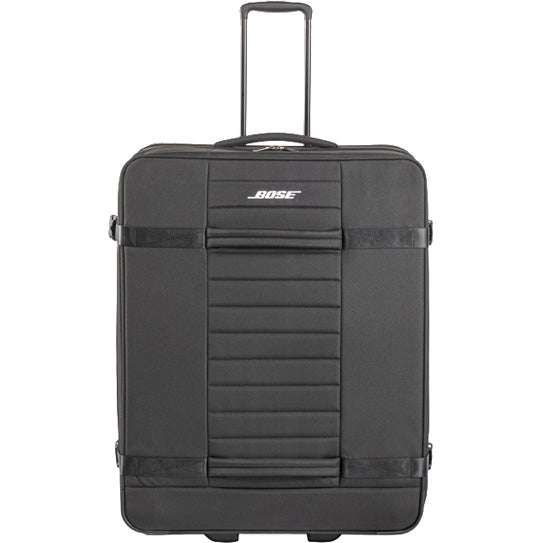

Bose Sub2 Roller Bag. The model-specific roller bag is an optional transport accessory.

Installation

Choose the appropriate line-level or SubMatch connection and EQ/crossover settings. Cardioid mode requires the documented two-subwoofer arrangement. Check the complete pole-mounted stack's stability and any required mounting accessories.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your Sub2 Powered Bass Module quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Bose Sub2 Powered Bass Module used for?

Bose Sub2 is a powered portable subwoofer using a 10 × 18-inch RaceTrack driver. It can extend a compatible portable PA through line-level connections or join an L1 Pro32 system through the documented SubMatch arrangement.

Does this subwoofer require an external power amplifier?

No. It is powered. Provide the specified mains/audio connection or documented L1 Pro32 SubMatch arrangement.

Can one module alone create the documented cardioid setup?

The documented directional-bass arrangement uses two compatible subwoofers with the required positioning and phase/pattern settings. Specify both units and the complete wiring.

Which equipment should I consider with Sub2 Powered Bass Module?

Bose SubMatch Cable. SubMatch is the dedicated connection accessory for the documented L1 Pro32 arrangement. It is not a general-purpose speaker cable.

Bose Sub1/Sub2 Adjustable Speaker Pole. Use the specified adjustable pole only with a compatible top speaker and a stable, load-checked arrangement.

Bose Sub2 Roller Bag. The model-specific roller bag is an optional transport accessory.

What is included with Sub2 Powered Bass Module?

One Sub2 powered bass module; IEC power cord; Slip cover. Confirm the exact regional pack on the quotation.

What should I check before installing Sub2 Powered Bass Module?

Choose the appropriate line-level or SubMatch connection and EQ/crossover settings. Cardioid mode requires the documented two-subwoofer arrangement. Check the complete pole-mounted stack's stability and any required mounting accessories.

Can Corporate AV help specify Sub2 Powered Bass Module for a UAE project?

Share your Sub2 Powered Bass Module quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Bose Sub2 Powered Bass Module quotation in the UAE?

Contact Corporate AV about Sub2 Powered Bass Module (840917-4100). Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
