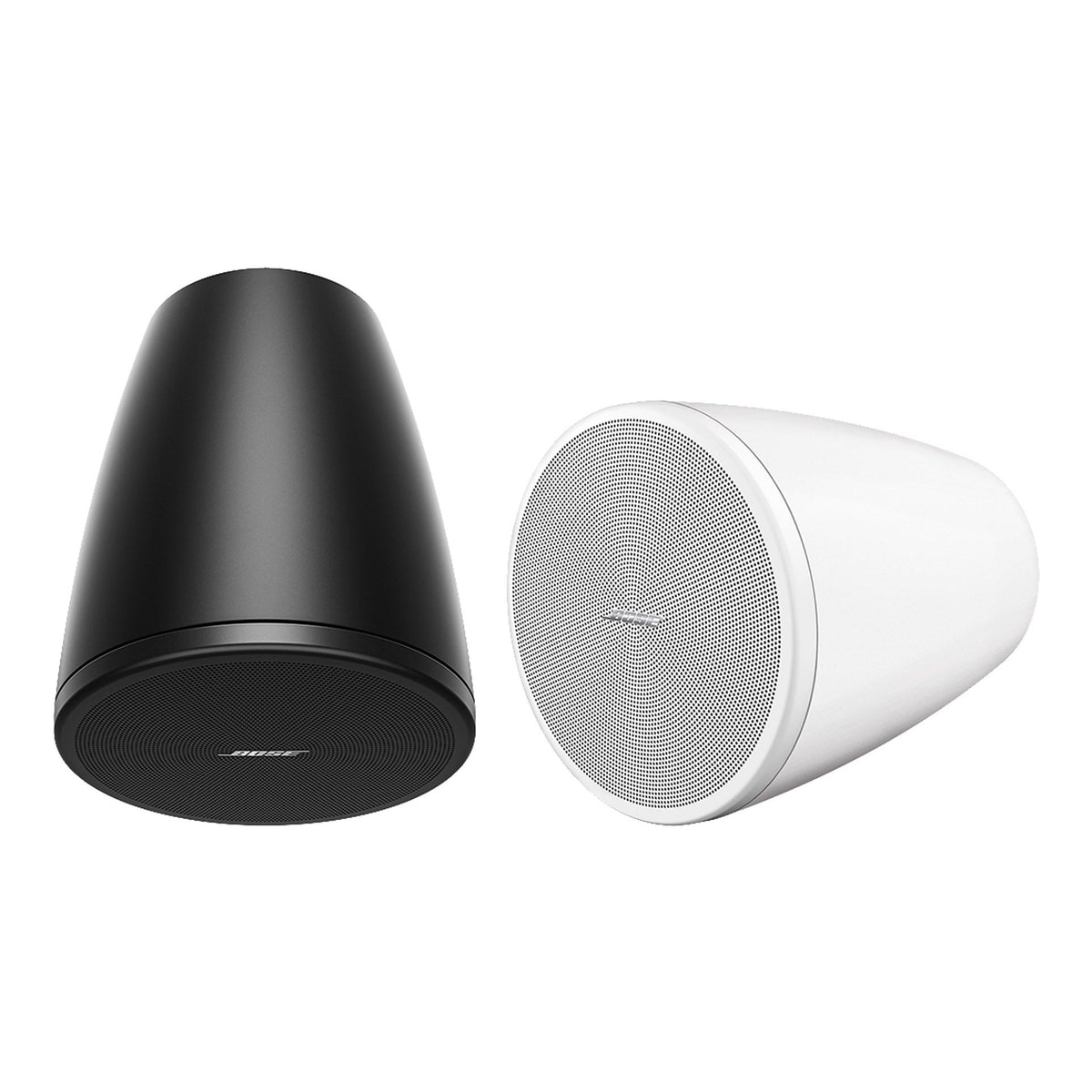

Bose DesignMax DM3P Pendant Loudspeaker - White (Pair)
Model 841165-0220
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Pendant passive loudspeaker; pair pack
- Frequency range: 75 Hz – 20,000 Hz
- 130° conical; indoor use
- External amplifier required; match load, output mode and protection
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose DesignMax DM3P?
The Bose DesignMax DM3P is a passive pendant loudspeaker for commercial music and speech systems. Its published frequency range is 75 Hz – 20,000 Hz, with 130° conical coverage. The suspended format suits locations where a pendant mounting position is required. Corporate AV can specify the speakers, amplification and installation scope for your UAE project.
A passive loudspeaker needs an external amplifier; it does not connect directly to a phone, laptop or mains supply for audio playback. Choose the amplifier mode, loudspeaker layout and source equipment as one system.
Why this product
Key Benefits
-
Audio bandwidth
75 Hz – 20,000 Hz frequency range (–10 dB); choose system levels and speaker spacing for the listening area.
-
Amplified system
Passive design with 8 Ω (transformer bypass); 70/100 V transformer taps are also available.
-
Installation environment
Indoor installation; follow the manufacturer's mounting and connector-protection instructions.
-
System protection
Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter
Use cases
Applications
-
Corporate spaces
Plan coverage for reception, workplace music and voice announcements.
-
Retail and hospitality
Select loudspeaker positions around the listener area and intended sound level.
-
Indoor audio fit-outs
Coordinate speaker spacing, structural support and cable access with the room design.
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 75 Hz – 20,000 Hz
- Low-Frequency
- 1 × 3.25 in (83 mm) woofer
- High-Frequency
- 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
Performance & Coverage
- Nominal Coverage
- 130° conical
- Coverage and format
- 130° conical; pendant loudspeaker format.
Power
- Nominal Impedance
- 8 Ω (transformer bypass)
- Transformer Taps, 100V
- 6, 12, 25 W, bypass
- Transformer Taps, 70V
- 3 W, 6 W, 12 W, 25 W, bypass
Physical
- Finish
- White
- Suspension/Mounting
- 1 suspension attachment point, 1 safety cable attachment point
- Product Dimensions (H×W×D)
- 8.2 in × 9.8 in (207 mm × 248 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
- Net Weight
- 5.5 lb (2.5 kg), single
Environmental
- Operating Temperature Range
- 0 °C to 50 °C (32 °F to 122 °F)
General
- Model
- DM3P
- Manufacturer Part Number
- 841165-0220
- Recommended Protection
- Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter
- Environment
- Indoor only
In the box
What's Included
-
(2) suspension cables, 15.0 ft (4.5 m) each
-
(2) DesignMax DM3P loudspeakers
-
(8) cable ties
-
(2) cable fasteners
-
(2) cable fastener tools
-
(1) installation guide
Installation
Installation & Mounting
Recommended Amplifier
Bose PowerSpace P4300+ Amplifier: The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured 70/100 V speaker circuit or supported low-impedance arrangement. Match the selected output mode, channel load, gain and protection to the DM3P; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.
Installation
Use the specified suspension system and safety attachment. Confirm the overhead structure, drop height, cable route and installation instructions before hanging the speaker.
Ownership and support
Ownership & Support
Warranty
Confirm the warranty for the supplied regional SKU and installation environment on the quotation.
Support
Share the DM3P speaker quantity, room plan, source equipment and project location with Corporate AV. Include the amplifier, cabling and commissioning requirements for Dubai, Abu Dhabi or other UAE sites.
