Bose AudioPack Pro C6W Music and Paging System
Model 147727MPN 892254-1210
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Speakers: 6 FreeSpace FS2C, white
- Included amplifier: FreeSpace IZA 190-HZ
- Amplified speaker output: One channel, 90 W at 70/100 V
- Speaker frequency range (-10 dB): 83 Hz–19 kHz
- Speaker coverage: 150° conical
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose AudioPack Pro C6W Music and Paging System?

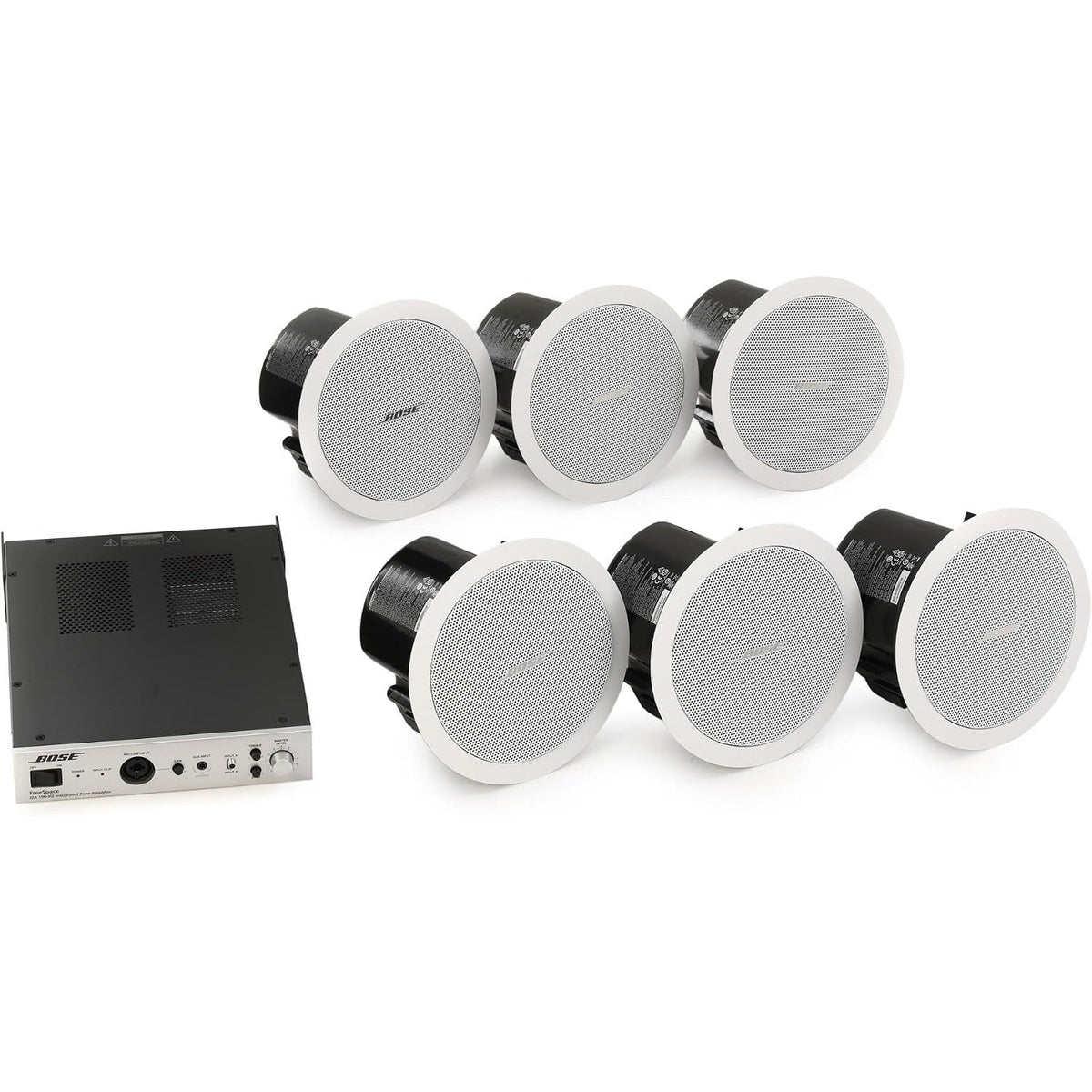

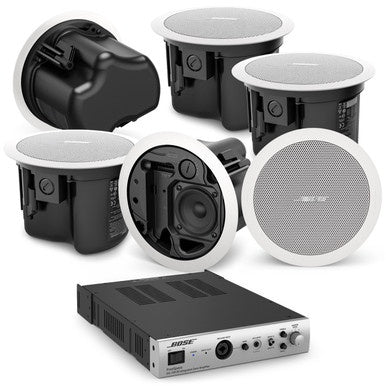

Bose AudioPack Pro C6W bundles 6 white FreeSpace FS2C speakers with an IZA 190-HZ amplifier for background music and paging. It provides the core audio equipment for a small commercial installation, with cabling, sources and site work specified separately. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
C6W is an amplifier-and-speaker package, not a two-independent-zone system. Its IZA 190-HZ supplies one 90 W 70/100 V amplified channel; the final tap total and headroom must suit the layout.
Why this product
Key Benefits
-
Included amplifier
FreeSpace IZA 190-HZ.
-
Amplified speaker output
One channel, 90 W at 70/100 V.
-
Speaker frequency range (-10 dB)
83 Hz–19 kHz.
Use cases
Applications
-
Cafés and shops
-
Small office background music
-
Commercial paging and announcements
Technical details
Technical Specifications
Frequency
- Speaker frequency range (-10 dB)
- 83 Hz–19 kHz
Performance & Coverage
- Speaker coverage
- 150° conical
- Speaker coverage
- 150° conical.
Power
- Speaker 100 V taps
- 2, 4, 8, 16 W
- Amplifier controls
- Source select, level, tone and speaker EQ
Connectivity
- Amplified speaker output
- One channel, 90 W at 70/100 V
Included & Optional Accessories
- Included amplifier
- FreeSpace IZA 190-HZ
Shipping & Packaging
- Regional package
- C6W listed for North America; confirm supplied regional kit for UAE
General
- Model
- AudioPack Pro C6W Music and Paging System
- Manufacturer part number
- 892254-1210
- Speakers
- 6 FreeSpace FS2C, white
- Ceiling cutout
- 160 mm per speaker
- Speakers
- 6 FreeSpace FS2C, white.
In the box
What's Included
-

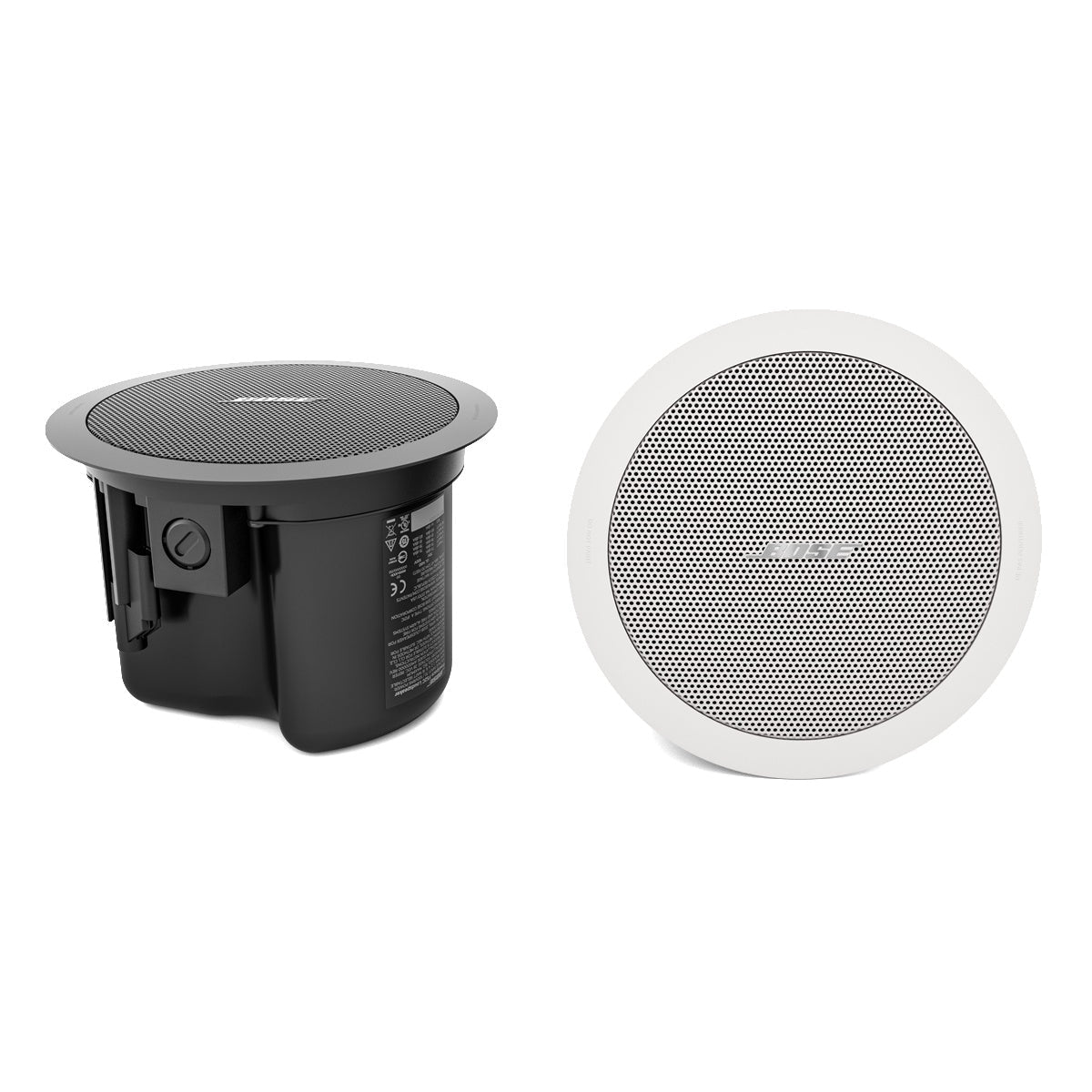

6 white FreeSpace FS2C loudspeakers
-
6 speaker grilles
-
6 speaker input connectors
-
Six FS2C tile bridges
-
One IZA 190-HZ amplifier
-
Power cord
-
Amplifier feet
-
Mute connector
-
Speaker-output connector
-
Remote connector
-
Paging connector
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose ControlCenter CC-1 Zone Controller | Color: White. The analogue ControlCenter CC-1 can provide compatible remote level control for the included IZA amplifier. Specify the correct controller, location and control cable separately.

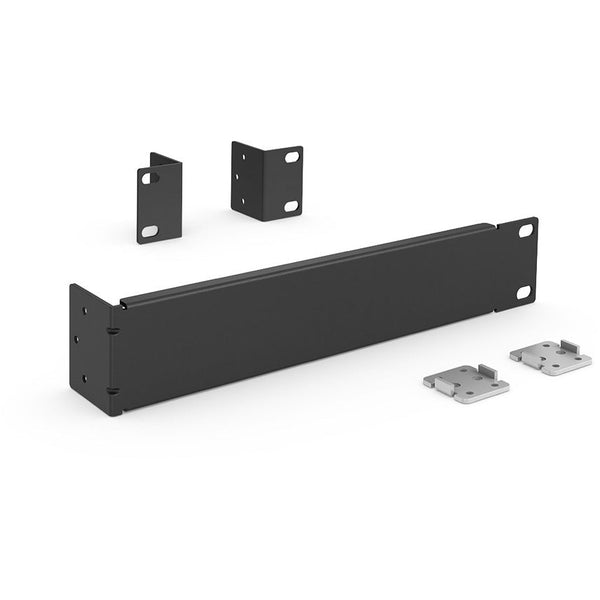

Bose FreeSpace IZA Rack Mount Kit. The FreeSpace IZA/ZA rack kit is an optional mounting accessory for a documented compatible amplifier installation; it is not required for tabletop placement.
Installation
Plan the speaker positions and total transformer tap load before wiring. Provide a music/paging source, speaker cable, site fixings and commissioning separately. Set the FS2 EQ/protection and correct 70/100 V output. Confirm the C6W regional pack, mains lead and UAE supply arrangements on the quotation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your AudioPack Pro C6W Music and Paging System quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
