Bose AudioPack Pro S4W Music and Paging System

Model 892256-2220

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

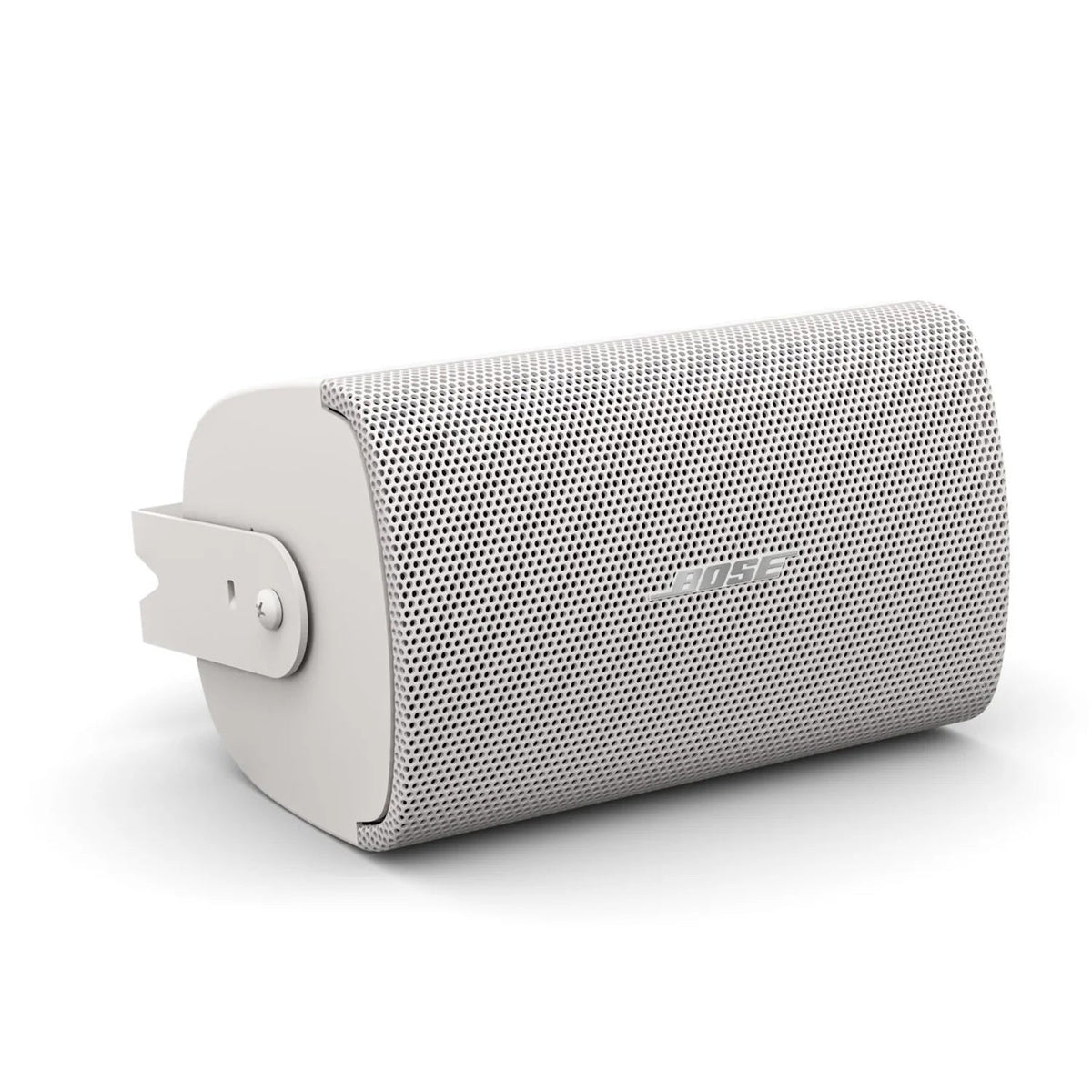

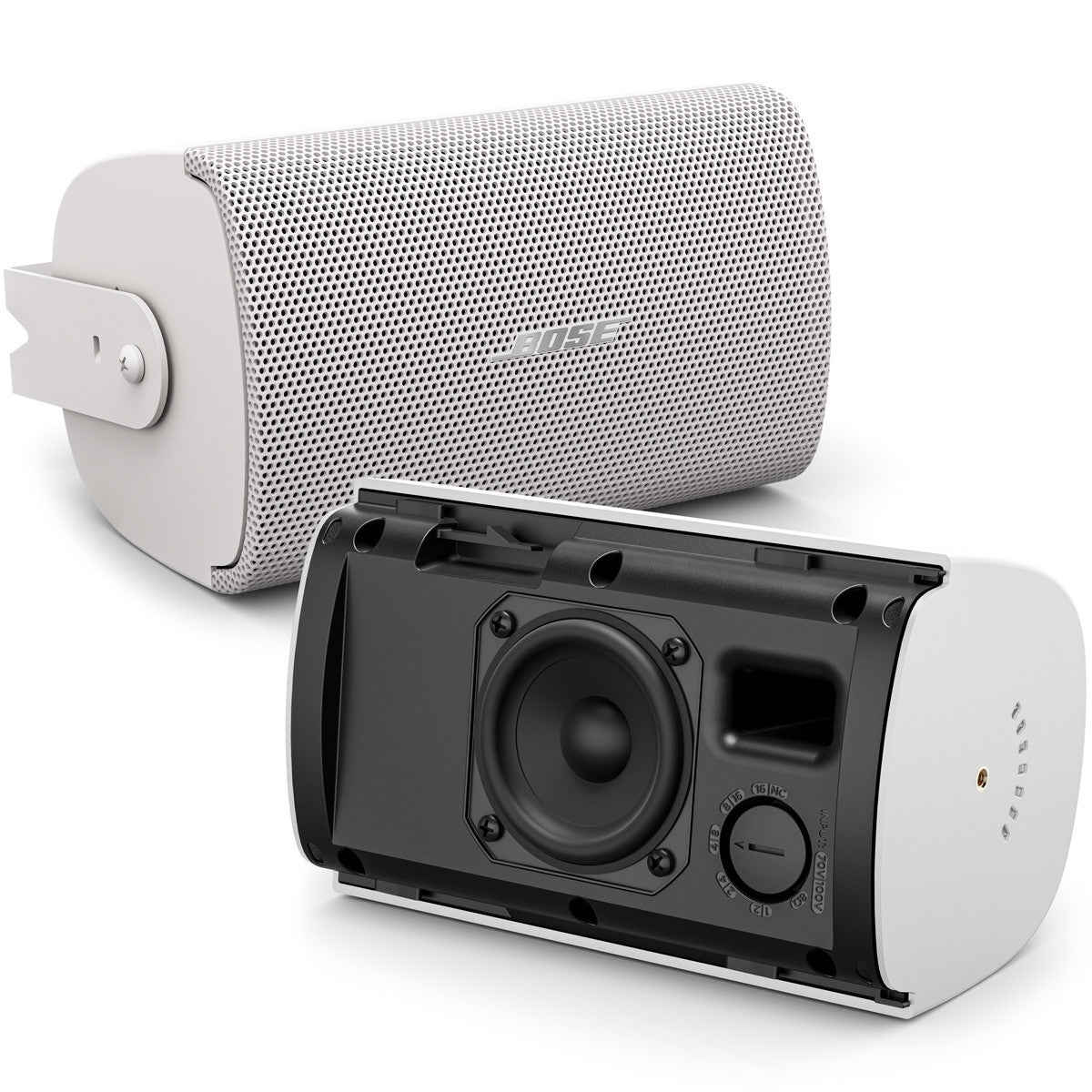

  • Speakers: 4 FreeSpace FS2SE, white
  • Included amplifier: FreeSpace IZA 190-HZ
  • Amplified speaker output: One channel, 90 W at 70/100 V
  • Speaker frequency range (-10 dB): 83 Hz–19 kHz
  • Speaker coverage: 145° horizontal × 140° vertical
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose AudioPack Pro S4W Music and Paging System
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose AudioPack Pro S4W Music and Paging System?

Bose AudioPack Pro S4W bundles 4 white FreeSpace FS2SE speakers with an IZA 190-HZ amplifier for background music and paging. It provides the core audio equipment for a small commercial installation, with cabling, sources and site work specified separately. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

S4W is an amplifier-and-speaker package, not a two-independent-zone system. Its IZA 190-HZ supplies one 90 W 70/100 V amplified channel; the final tap total and headroom must suit the layout.

Why this product

Key Benefits

  • Included amplifier

    FreeSpace IZA 190-HZ.

  • Amplified speaker output

    One channel, 90 W at 70/100 V.

  • Speaker frequency range (-10 dB)

    83 Hz–19 kHz.

Use cases

Applications

  • Cafés and shops

  • Small office background music

  • Commercial paging and announcements

Technical details

Technical Specifications

Frequency

Speaker frequency range (-10 dB)
83 Hz–19 kHz

Performance & Coverage

Speaker coverage
145° horizontal × 140° vertical
Speaker coverage
145° horizontal × 140° vertical.

Power

Speaker 100 V taps
2, 4, 8, 16 W
Amplifier controls
Source select, level, tone and speaker EQ

Connectivity

Amplified speaker output
One channel, 90 W at 70/100 V

Included & Optional Accessories

Included amplifier
FreeSpace IZA 190-HZ

General

Model
AudioPack Pro S4W Music and Paging System
Manufacturer part number
892256-2220
Speakers
4 FreeSpace FS2SE, white
Speaker rating
IP55; amplifier remains indoors in a suitable environment
Speakers
4 FreeSpace FS2SE, white.

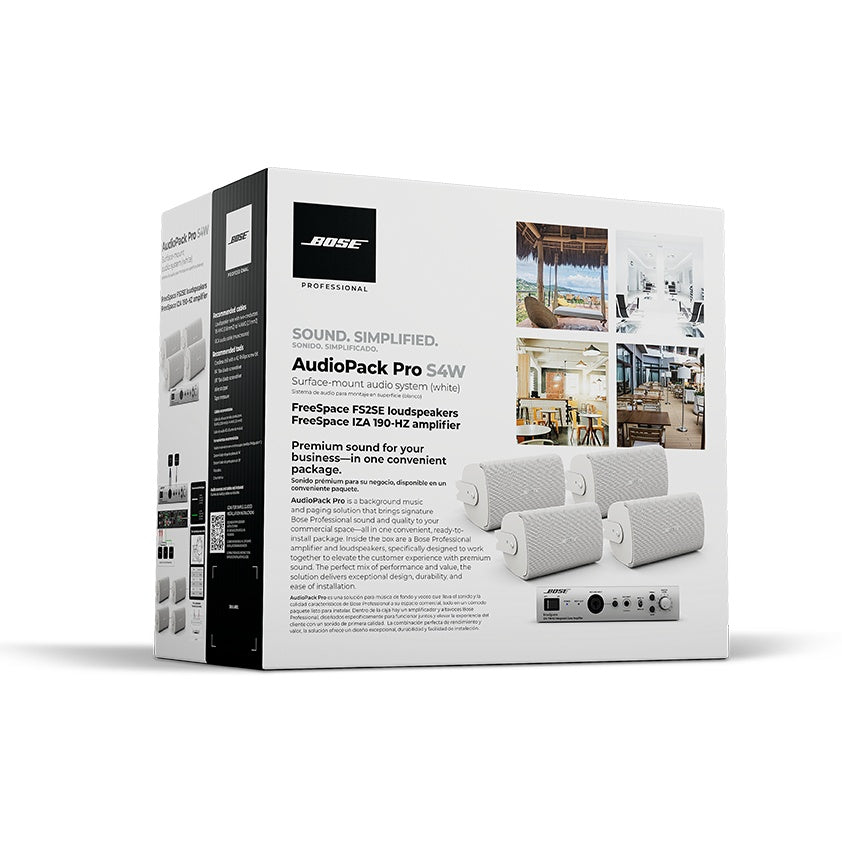

In the box

What's Included

  • 4 white FreeSpace FS2SE loudspeakers

  • 4 speaker grilles

  • 4 speaker input connectors

  • Four speaker wall brackets

  • Four input covers

  • Eight input-cover screws

  • Eight wall-bracket screws

  • Four extra logos

  • One IZA 190-HZ amplifier

  • Power cord

  • Amplifier feet

  • Mute connector

  • Speaker-output connector

  • Remote connector

  • Paging connector

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose ControlCenter CC-1 Zone Controller | Color: White. The analogue ControlCenter CC-1 can provide compatible remote level control for the included IZA amplifier. Specify the correct controller, location and control cable separately.

Bose FreeSpace IZA Rack Mount Kit. The FreeSpace IZA/ZA rack kit is an optional mounting accessory for a documented compatible amplifier installation; it is not required for tabletop placement.

Installation

Plan the speaker positions and total transformer tap load before wiring. Provide a music/paging source, speaker cable, site fixings and commissioning separately. Set the FS2 EQ/protection and correct 70/100 V output. The loudspeakers' IP55 rating does not apply to the amplifier; house the amplifier in its specified indoor environment.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your AudioPack Pro S4W Music and Paging System quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Bose AudioPack Pro S4W Music and Paging System used for?

Bose AudioPack Pro S4W bundles 4 white FreeSpace FS2SE speakers with an IZA 190-HZ amplifier for background music and paging. It provides the core audio equipment for a small commercial installation, with cabling, sources and site work specified separately.

Do I need to buy another amplifier for the included speakers?

The package includes an IZA 190-HZ amplifier. Another amplifier is only needed if the complete expanded system, zoning or load design requires it.

Does this package give two independently amplified zones?

No. IZA 190-HZ has one 90 W 70/100 V speaker output. Multiple input sources do not create independently amplified zones; specify a different design if separate zone levels or sources are required.

Which equipment should I consider with AudioPack Pro S4W Music and Paging System?

Bose ControlCenter CC-1 Zone Controller | Color: White. The analogue ControlCenter CC-1 can provide compatible remote level control for the included IZA amplifier. Specify the correct controller, location and control cable separately.

Bose FreeSpace IZA Rack Mount Kit. The FreeSpace IZA/ZA rack kit is an optional mounting accessory for a documented compatible amplifier installation; it is not required for tabletop placement.

What is included with AudioPack Pro S4W Music and Paging System?

4 white FreeSpace FS2SE loudspeakers; 4 speaker grilles; 4 speaker input connectors; Four speaker wall brackets; Four input covers; Eight input-cover screws; Eight wall-bracket screws; Four extra logos; One IZA 190-HZ amplifier; Power cord; Amplifier feet; Mute connector; Speaker-output connector; Remote connector; Paging connector. Confirm the exact regional pack on the quotation.

What should I check before installing AudioPack Pro S4W Music and Paging System?

Plan the speaker positions and total transformer tap load before wiring. Provide a music/paging source, speaker cable, site fixings and commissioning separately. Set the FS2 EQ/protection and correct 70/100 V output. The loudspeakers' IP55 rating does not apply to the amplifier; house the amplifier in its specified indoor environment.

Can Corporate AV help specify AudioPack Pro S4W Music and Paging System for a UAE project?

Share your AudioPack Pro S4W Music and Paging System quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Bose AudioPack Pro S4W Music and Paging System quotation in the UAE?

Contact Corporate AV about AudioPack Pro S4W Music and Paging System (892256-2220). Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
