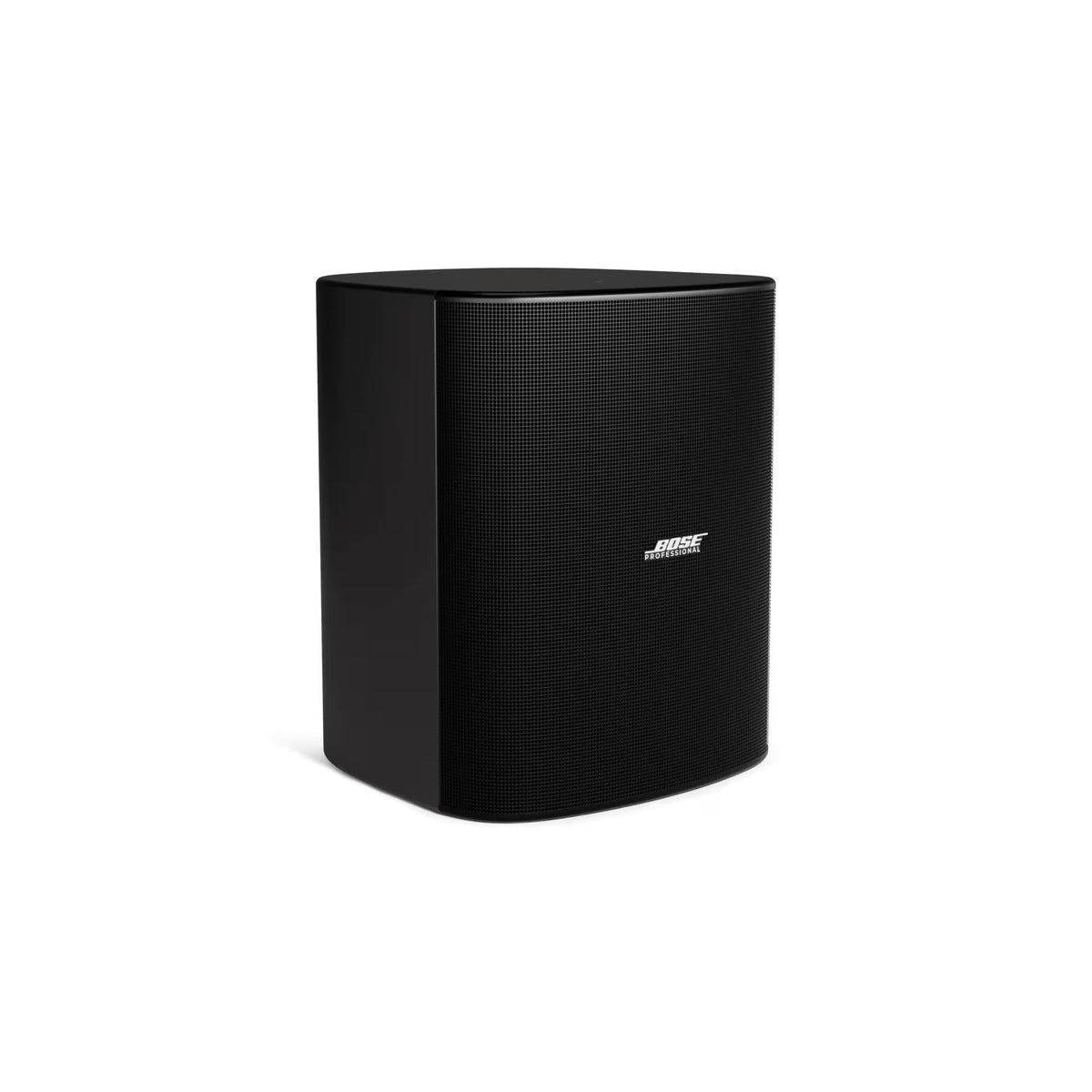

Bose DesignMax DM12SE Surface-Mount Loudspeaker - Black
Model A01114-0100
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Surface-Mount passive loudspeaker; single unit
- Frequency range: 38 Hz – 20,000 Hz
- 102° conical; IP55 outdoor-capable
- External amplifier required; match load, output mode and protection
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose DesignMax DM12SE?
The Bose DesignMax DM12SE is a passive surface-mount loudspeaker for commercial music and speech systems. Its published frequency range is 38 Hz – 20,000 Hz, with 102° conical coverage. The surface-mounted format allows the speaker position and aiming to be planned around the listening area. Corporate AV can specify the speakers, amplification and installation scope for your UAE project.
A passive loudspeaker needs an external amplifier; it does not connect directly to a phone, laptop or mains supply for audio playback. Choose the amplifier mode, loudspeaker layout and source equipment as one system.
Why this product
Key Benefits
-
Audio bandwidth
38 Hz – 20,000 Hz frequency range (–10 dB); choose system levels and speaker spacing for the listening area.
-
Amplified system
Passive design with 8 Ω; use the supported low-impedance amplifier configuration.
-
Installation environment
IP55-rated outdoor-capable design; follow the manufacturer's mounting and connector-protection instructions.
-
System protection
Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter
Use cases
Applications
-
Corporate spaces
Plan coverage for reception, workplace music and voice announcements.
-
Retail and hospitality
Select loudspeaker positions around the listener area and intended sound level.
-
Outdoor commercial audio
Follow the documented IP rating, input protection and mounting orientation for the specific site.
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 38 Hz – 20,000 Hz
- Low-Frequency
- 1 × 12 in (305 mm) woofer, weather-treated
- High-Frequency
- 1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated
Performance & Coverage
- Nominal Coverage
- 102° conical
- Coverage and format
- 102° conical; surface-mount loudspeaker format.
Power
- Nominal Impedance
- 8 Ω
Physical
- Finish
- Black
- Suspension/Mounting
- (12) M8 threaded inserts (2 top, 2 side, 8 rear)
- Product Dimensions (H×W×D)
- 19.1 in × 16.0 in × 16.0 in (485 mm × 407 mm × 406 mm)
- Net Weight
- 37.4 lb (16.9 kg)
Environmental
- Ingress Protection
- IP55
- Operating Temperature Range
- -25 °C to 70 °C (-13 °F to 158 °F)
General
- Model
- DM12SE
- Manufacturer Part Number
- A01114-0100
- Recommended Protection
- Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter
- Environment
- IP55, subject to installation instructions
In the box
What's Included
-
(1) DesignMax DM12SE
-
(1) input panel cover
-
(1) installation guide
-
(1) Surface-Mount Pan and Tilt Bracket
Installation
Installation & Mounting
Recommended Amplifier
Bose PowerSpace P4300+ Amplifier: The Bose PowerSpace P4300+ is a compatible amplifier option for a correctly configured low-impedance system. Match the selected output mode, channel load, gain and protection to the DM12SE; configure the manufacturer's high-pass filter and any required limiters. The amplifier is sold separately.
Installation
Use the documented bracket and fasteners, check the supporting structure and set the aiming angle for the listening area. Confirm the exact SKU revision before selecting optional mounting accessories.
Ownership and support
Ownership & Support
Warranty
Confirm the warranty for the supplied regional SKU and installation environment on the quotation.
Support
Share the DM12SE speaker quantity, room plan, source equipment and project location with Corporate AV. Include the amplifier, cabling and commissioning requirements for Dubai, Abu Dhabi or other UAE sites.
