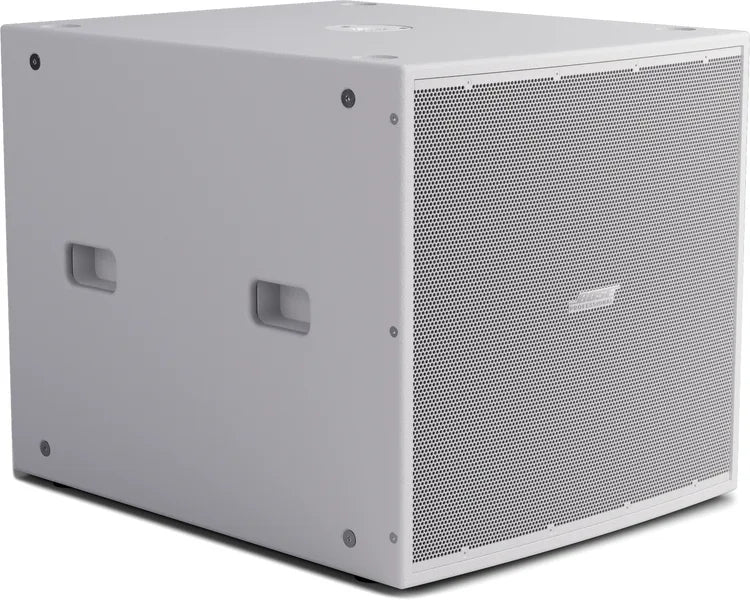

Bose ShowTime STS118E Passive Subwoofer White

Model 207646MPN A01477-0200

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Woofer: 18-inch high-excursion
  • Frequency range (-10 dB): 29–263 Hz
  • Nominal impedance: 8 Ω
  • Peak power handling: 3200 W; not continuous amplifier output
  • DSP crossover: Active crossover required, 80–200 Hz range
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose ShowTime STS118E Passive Subwoofer White
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ShowTime STS118E Passive Subwoofer White?

The white Bose ShowTime STS118E is an 18-inch passive subwoofer for low-frequency reinforcement in a designed PA. Its IP55 enclosure supports documented outdoor installations with the appropriate input cover and mounting. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

The white Bose ShowTime STS118E is an 18-inch passive subwoofer for low-frequency reinforcement in a designed PA.

  • Frequency range (-10 dB): 29–263 Hz.
  • DSP crossover: Active crossover required, 80–200 Hz range.

Use cases

Applications

  • Venue bass reinforcement

  • Outdoor hospitality and entertainment audio

Technical details

Technical Specifications

System

Woofer
18-inch high-excursion
DSP crossover
Active crossover required, 80–200 Hz range
Woofer
18-inch high-excursion.

Frequency

Frequency range (-10 dB)
29–263 Hz

Power

Nominal impedance
8 Ω
Peak power handling
3200 W; not continuous amplifier output
Nominal impedance
8 Ω.
Peak power handling
3200 W; not continuous amplifier output.

Physical

Dimensions (H × W × D)
563 × 570 × 738 mm
Colour
White

Environmental

Environmental rating
IP55

General

Model
ShowTime STS118E Passive Subwoofer White
Store SKU
207646
Manufacturer part number
A01477-0200

In the box

What's Included

  • One white ShowTime STS118E

  • Input cover with hardware

  • Installation guide

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose PowerShareX PSX4804D Networkable Power Amplifier. Specify the amplifier output mode, channel allocation, gain, manufacturer loudspeaker preset and limiting for the complete system. The amplifier is sold separately.

Bose ArenaMatch Utility AMU108 Outdoor Speaker | Color: Black. AMU108 is a possible main-speaker option in a properly designed system; coordinate coverage, crossover and separate channels.

Installation

Specify the amplifier, active crossover, gain and limiting for the documented speaker requirements. Check mounting, input-cover sealing and weather exposure. Peak handling alone is not a basis for amplifier sizing.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your ShowTime STS118E Passive Subwoofer White quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Bose ShowTime STS118E Passive Subwoofer White used for?

The white Bose ShowTime STS118E is an 18-inch passive subwoofer for low-frequency reinforcement in a designed PA. Its IP55 enclosure supports documented outdoor installations with the appropriate input cover and mounting.

Is STS118E self-powered?

No. It is an 8-ohm passive subwoofer requiring an external amplifier and active DSP crossover.

Is 3200 W its continuous rating?

No. The listed 3200 W figure is peak handling. Confirm the full amplifier/protection design using the manufacturer's current technical requirements.

Which equipment should I consider with ShowTime STS118E Passive Subwoofer White?

Bose PowerShareX PSX4804D Networkable Power Amplifier. Specify the amplifier output mode, channel allocation, gain, manufacturer loudspeaker preset and limiting for the complete system. The amplifier is sold separately.

Bose ArenaMatch Utility AMU108 Outdoor Speaker | Color: Black. AMU108 is a possible main-speaker option in a properly designed system; coordinate coverage, crossover and separate channels.

What is included with ShowTime STS118E Passive Subwoofer White?

One white ShowTime STS118E; Input cover with hardware; Installation guide. Confirm the exact regional pack on the quotation.

What should I check before installing ShowTime STS118E Passive Subwoofer White?

Specify the amplifier, active crossover, gain and limiting for the documented speaker requirements. Check mounting, input-cover sealing and weather exposure. Peak handling alone is not a basis for amplifier sizing.

Can Corporate AV help specify ShowTime STS118E Passive Subwoofer White for a UAE project?

Share your ShowTime STS118E Passive Subwoofer White quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
