Bose

Bose ArenaMatch AMWG2010 100° Horizontal Waveguide for AM20 Array Module

Model AMWG2010MPN 808650-8610

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 100° horizontal waveguide calibrated for the ArenaMatch AM20 module
  • Gives the AM20 a 100° x 20° coverage pattern (AM20/100)
  • Replaceable waveguide for customising coverage and forming asymmetrical array patterns
  • Mechanical coverage accessory; loudspeaker and amplifier sold separately
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions

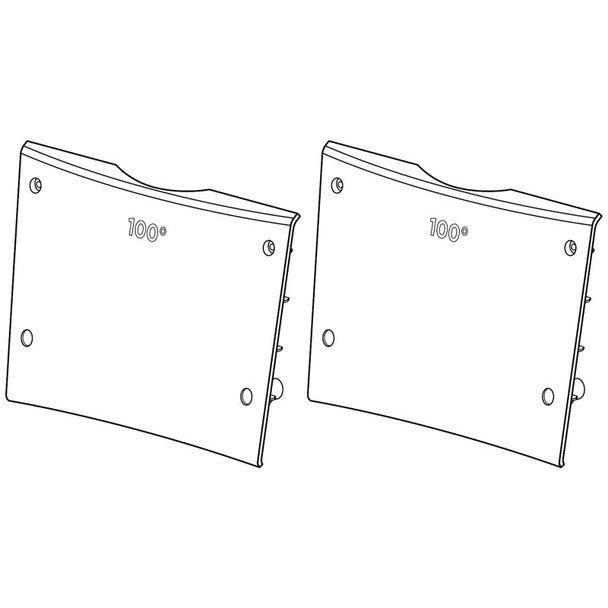

Bose ArenaMatch AMWG2010 100-degree waveguide pair for AM20, technical illustration
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ArenaMatch AMWG2010?

The Bose ArenaMatch AMWG2010 waveguide is a 100° horizontal waveguide accessory for the ArenaMatch AM20 DeltaQ array module. Fitted to the AM20, which has 20° vertical coverage, it creates a 100° x 20° pattern, so the coverage of a module can be changed on site without replacing the loudspeaker. It is made for integrators and sound designers working on stadium, arena and outdoor venue systems in the UAE.

The Bose ArenaMatch AMWG2010 is the 100° horizontal waveguide that Bose calibrates for the ArenaMatch AM20 module. It replaces the waveguides fitted at the factory, so an AM20 supplied with a different horizontal pattern can be changed to 100°. Bose offers 60°, 80° and 100° horizontal waveguides for this module.

Why this product

Key Benefits

  • Calibrated for one module

    Each ArenaMatch waveguide is calibrated for a specific loudspeaker module, and the AMWG2010 is the 100° option for the AM20.

  • 100° horizontal coverage

    Fitting the waveguide gives the AM20 a 100° horizontal pattern, one of the three horizontal options Bose offers for this module.

  • Replaceable waveguides

    Bose designs the ArenaMatch AM20 so that its horizontal coverage can be changed by swapping waveguides, without replacing the loudspeaker module.

  • Asymmetrical array patterns

    Mixing waveguides lets designers customise coverage module by module and form asymmetrical patterns in left and right arrays.

Use cases

Applications

  • Stadium and arena arrays

    Sets the horizontal coverage of AM20 modules to match the width of the seating area each module serves.

  • Outdoor entertainment and hospitality venues

    Adapts AM20 modules used at outdoor restaurants, bars and entertainment areas to the shape of the audience area.

  • Retrofits and recommissioning

    Lets an installed AM20 array be re-aimed for a changed seating layout without buying new modules.

Technical details

Technical Specifications

Compatibility

Compatible Models

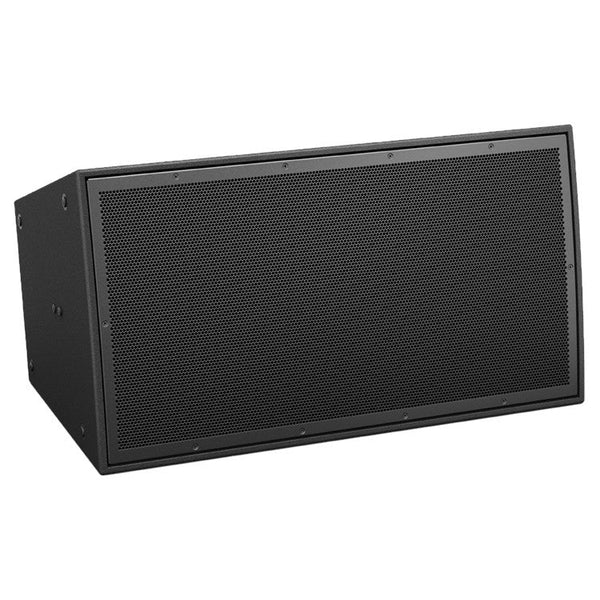

Bose ArenaMatch AM20 DeltaQ array module

Audio Performance

Horizontal Coverage
100°
Vertical Coverage
20° (set by the AM20 module)
Coverage Pattern
100° x 20° (AM20/100)
Maximum SPL
126 dB at 1 m, passive (AM20/100, calculated)
Sensitivity
97 dB SPL, 1 W at 1 m, passive (AM20/100)

Physical

Mounting
Replaces the factory-installed waveguides behind the grille

Model & Identification

Model
AMWG2010

In the box

What's Included

  • Bose AMWG2010 waveguide accessory set

Installation

Installation & Mounting

Recommended Loudspeaker Modules

The AMWG2010 fits the Bose ArenaMatch AM20 with 60° waveguide and the Bose ArenaMatch AM20 with 80° waveguide, changing either into a 100° x 20° module.

For new projects that need 100° coverage from the start, the Bose ArenaMatch AM20 with 100° waveguide is supplied with this waveguide already fitted, so a separate AMWG2010 is only needed to change the coverage of modules on site.

Installation

Bose publishes an AMWG Installation Guide for the AMWG2010 on the AM20 product page. Follow that guide for the fitting steps.

Ownership and support

Ownership & Support

Support

For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.

Complete your solution

Recommended Accessories

Expert FAQs

What does the Bose ArenaMatch AMWG2010 waveguide do?

The Bose ArenaMatch AMWG2010 waveguide sets the horizontal coverage of an ArenaMatch AM20 module to 100°. Combined with the 20° vertical coverage of the AM20, the module then has a 100° x 20° pattern, the same as the AM20/100 version.

Which loudspeaker is the AMWG2010 compatible with?

The Bose AMWG2010 is calibrated only for the ArenaMatch AM20 module. Each ArenaMatch module has its own waveguides, so the AM10, AM20 and AM40 cannot share them.

Can the AMWG2010 waveguide be changed on an installed AM20?

Yes. The Bose ArenaMatch AMWG2010 is a replaceable waveguide, and Bose describes the AM20 horizontal coverage as changeable by swapping between 60°, 80° and 100° waveguides. The fitting steps are in the AMWG Installation Guide that Bose publishes with the AM20 downloads.

Can I use different waveguides in the same ArenaMatch array?

The Bose ArenaMatch AMWG2010 can be mixed with other ArenaMatch waveguides in one array, to customise coverage module by module and to form asymmetrical patterns in left and right arrays.

Where do I find the installation guide for the AMWG2010?

The installation guide for the Bose ArenaMatch AMWG2010 is the AMWG Installation Guide, listed under User Documentation on the Bose Professional AM20 product page. The AM20 also has its own AM10/AM20/AM40 Installation Guide for the module itself, so both documents are useful on site.

Does the AMWG2010 change amplifier power or replace the AM20 loudspeaker?

No. The AMWG2010 is a mechanical waveguide accessory that changes the horizontal sound coverage of the compatible AM20 module. It is not a powered speaker or amplifier. The host loudspeaker still needs a correctly specified external amplifier, DSP preset and system design.

How can I request a Bose ArenaMatch AMWG2010 100° Horizontal Waveguide for AM20 Array Module quotation in the UAE?

Request a project quotation from Corporate AV for Dubai, Abu Dhabi or elsewhere in the UAE. Share your ArenaMatch module model, current coverage, required coverage and quantity so the proposal can identify compatible equipment and installation requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, lead time, regional warranty and separately sold accessories with the quotation.
