Bose ArenaMatch AMWG2060 60° Horizontal Waveguide for AM20 Array Module

Model AMWG2060MPN 808667-3610

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 60° horizontal waveguide for the ArenaMatch AM20 module
  • Gives the AM20 a 60° x 20° coverage pattern (AM20/60)
  • AM20/60: 128 dB calculated maximum SPL at 1 m (passive)
  • Swappable with the 80° and 100° waveguides to change coverage on site
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions

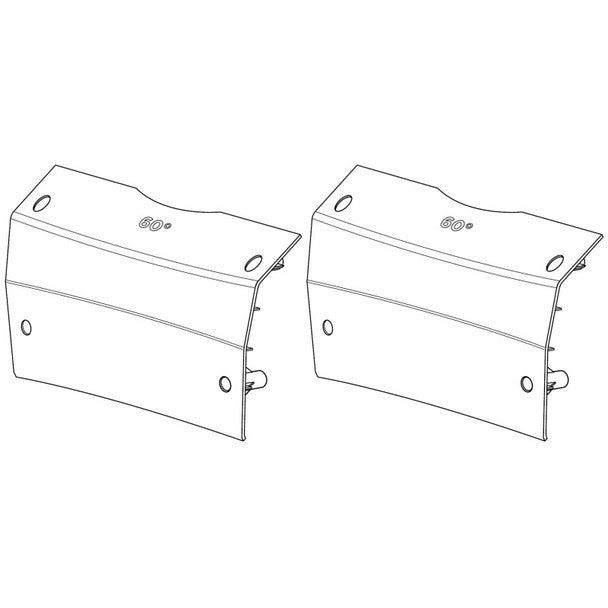

Bose ArenaMatch AMWG2060 60-degree waveguide pair for AM20, technical illustration
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ArenaMatch AMWG2060?

The Bose ArenaMatch AMWG2060 waveguide is a 60° horizontal waveguide for the ArenaMatch AM20 DeltaQ array module. Fitted to the AM20, which has 20° vertical coverage, it creates a 60° x 20° pattern, so the coverage of a module can be changed without replacing the loudspeaker. It is made for integrators and sound designers working on stadium, arena and outdoor venue systems in the UAE.

The Bose ArenaMatch AMWG2060 is the 60° horizontal waveguide for the ArenaMatch AM20 module, the narrowest of the 60°, 80° and 100° options Bose lists for it. With it fitted, the module has the same 60° x 20° coverage as the AM20/60 version.

Why this product

Key Benefits

  • Narrowest horizontal option

    At 60°, the AMWG2060 gives the AM20 the narrowest of its three horizontal patterns, keeping sound on a narrow audience area.

  • Highest output of the three versions

    Bose lists the AM20/60 with the highest calculated passive SPL and sensitivity of the three AM20 coverage versions.

  • Replaceable waveguides

    Bose designs the ArenaMatch AM20 so that its horizontal coverage can be changed by swapping between 60°, 80° and 100° waveguides.

  • Asymmetrical array patterns

    Mixing waveguides lets designers customise coverage module by module and form asymmetrical patterns in left and right arrays.

Use cases

Applications

  • Stadium and arena arrays

    Sets the horizontal coverage of AM20 modules to match the width of the seating area each module serves.

  • Outdoor hospitality and dining venues

    Adapts AM20 modules at outdoor restaurants, bars and entertainment areas to the shape of the audience area.

  • Places of worship and educational sports complexes

    Bose lists both among the ArenaMatch applications, and the waveguide lets one AM20 model suit narrow and wide zones.

Technical details

Technical Specifications

Compatibility

Compatible Models
Bose ArenaMatch AM20 DeltaQ array module

Audio Performance

Horizontal Coverage
60°
Vertical Coverage
20° (set by the AM20 module)
Coverage Pattern
60° x 20° (AM20/60)
Maximum SPL
128 dB at 1 m, passive (AM20/60, calculated)
Sensitivity
99 dB SPL, 1 W at 1 m, passive (AM20/60)

Model & Identification

Model
AMWG2060

In the box

What's Included

  • Bose AMWG2060 waveguide accessory set

Installation

Installation & Mounting

Recommended Loudspeaker Modules

The AMWG2060 fits the Bose ArenaMatch AM20 with 80° waveguide and the Bose ArenaMatch AM20 with 100° waveguide, changing either into a 60° x 20° module.

For new projects that need 60° coverage from the start, choose the Bose ArenaMatch AM20 with 60° waveguide, which already has this horizontal pattern, so a separate AMWG2060 is only needed to change the coverage of modules on site.

Installation

Bose publishes an AMWG Installation Guide for the ArenaMatch waveguides under User Documentation on the AM20 product page. Follow that guide for the fitting steps.

Ownership and support

Ownership & Support

Support

For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.

Complete your solution

Recommended Accessories

Expert FAQs

What does the Bose ArenaMatch AMWG2060 waveguide do?

The Bose ArenaMatch AMWG2060 waveguide sets the horizontal coverage of an ArenaMatch AM20 module to 60°. Combined with the 20° vertical coverage of the AM20, the module then has a 60° x 20° pattern, the same as the AM20/60 version.

Which loudspeaker is the AMWG2060 for?

The Bose AMWG2060 is the 60° horizontal waveguide for the ArenaMatch AM20 DeltaQ array module. Bose lists 60°, 80° and 100° horizontal versions for the AM20, so match the waveguide to the module it will be fitted to.

How loud is an AM20 fitted with the 60° waveguide?

The Bose ArenaMatch AM20/60 has a calculated maximum SPL at 1 m of 128 dB in passive mode, or 122 dB (LF) and 128 dB (HF) when bi-amped. Its sensitivity is 99 dB at 1 W, 1 m in passive mode, or 94 dB (LF) and 106 dB (HF).

Can the AMWG2060 be changed on an installed AM20?

Yes. The Bose ArenaMatch AMWG2060 is the 60° option among the swappable 60°, 80° and 100° waveguides that Bose lists for changing the AM20 horizontal coverage. The fitting steps are in the AMWG Installation Guide listed under User Documentation on the Bose Professional AM20 page.

Can I use different waveguides in the same ArenaMatch array?

Yes. The Bose ArenaMatch AMWG2060 can be combined with other ArenaMatch waveguides in one array, to customise coverage module by module and to form asymmetrical patterns in left and right arrays.

Does the AMWG2060 change amplifier power or replace the AM20 loudspeaker?

No. The AMWG2060 is a mechanical waveguide accessory that changes the horizontal sound coverage of the compatible AM20 module. It is not a powered speaker or amplifier. The host loudspeaker still needs a correctly specified external amplifier, DSP preset and system design.
