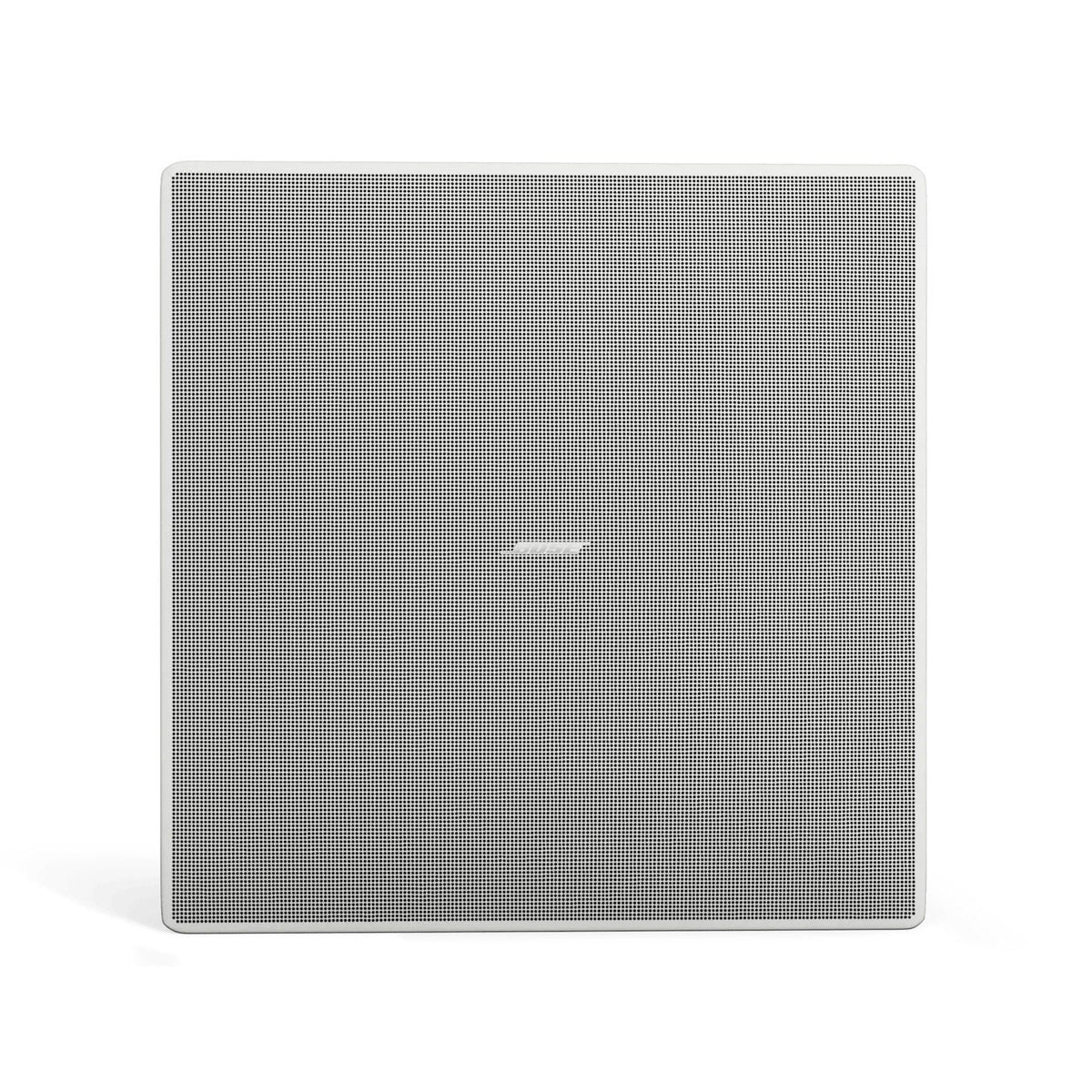

Bose EdgeMax EM90-LP Ceiling Speaker
Model 891455-0200
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Coverage: 90° horizontal × 80° asymmetrical vertical
- Continuous power handling: 32 W, Bose extended-lifecycle rating
- Frequency range (-10 dB): 45 Hz–19 kHz
- Connection: 70/100 V transformer or 8 Ω bypass
- 100 V taps: 8, 16, 32 W
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose EdgeMax EM90-LP Ceiling Speaker?
The Bose EdgeMax EM90-LP directs sound from ceiling corners into the room using PhaseGuide technology. Its shallow 100 mm mounting depth helps where the ceiling void is limited. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
EM90-LP is a passive directional ceiling loudspeaker with 90° horizontal coverage. It needs an external amplifier; speaker placement, orientation and circuit loading should be designed together.
- Frequency range (-10 dB): 45 Hz–19 kHz.
- 100 V taps: 8, 16, 32 W.
Use cases
Applications
-
Meeting rooms and presentation spaces
-
Retail and hospitality audio
-
Installations with limited ceiling void
Technical details
Technical Specifications
Frequency
- Frequency range (-10 dB)
- 45 Hz–19 kHz
Performance & Coverage
- Coverage
- 90° horizontal × 80° asymmetrical vertical
- Coverage
- 90° horizontal × 80° asymmetrical vertical.
Power
- Continuous power handling
- 32 W, Bose extended-lifecycle rating
- 100 V taps
- 8, 16, 32 W
- 70 V taps
- 4, 8, 16, 32 W
- Continuous power handling
- 32 W, Bose extended-lifecycle rating.
Connectivity
- Connection
- 70/100 V transformer or 8 Ω bypass
- Connection
- 70/100 V transformer or 8 Ω bypass.
Physical
- Colour
- White
General
- Model
- EdgeMax EM90-LP Ceiling Speaker
- Manufacturer part number
- 891455-0200
- Ceiling cutout
- 345 × 345 mm; 100 mm mounting depth
- Environment
- Indoor only
In the box
What's Included
-
One EdgeMax EM90-LP loudspeaker with grille
-
Tile bridge
-
Ceiling hole template
-
Paint shield
-
Installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose PowerSpace P4300+ 4-Channel DSP Amplifier. PowerSpace P4300+ is a compatible DSP/amplifier option for a properly designed 70/100 V circuit or supported low-impedance arrangement. Match output mode, tap totals, high-pass filter and protection to the system.
Installation
Position EM90-LP at a suitable ceiling corner according to the coverage design. Check the cutout, depth, ceiling support and safety attachments. Configure the 55 Hz high-pass filter at a minimum 24 dB/octave.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your EdgeMax EM90-LP Ceiling Speaker quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
