Bose

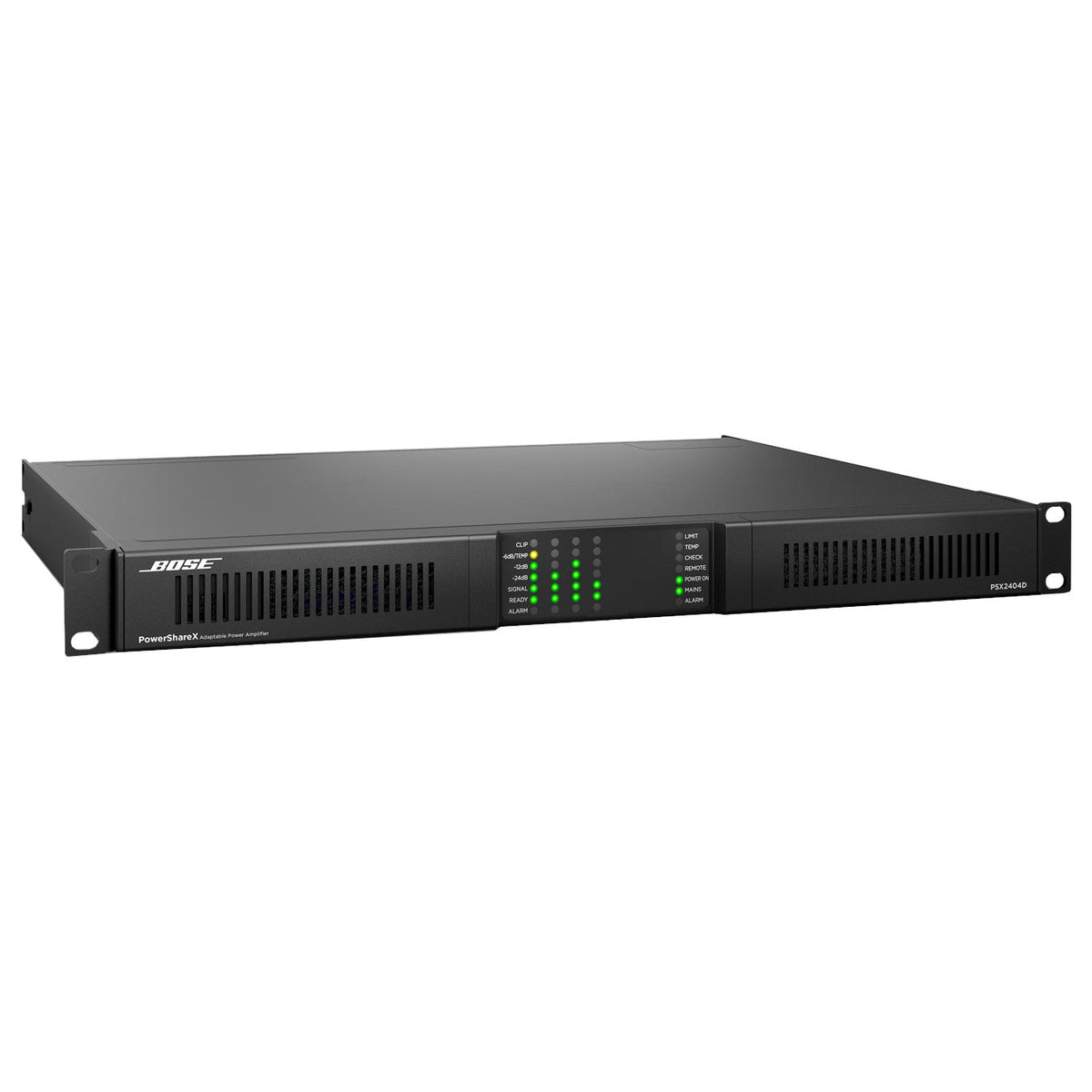

Bose PowerShareX PSX2404D 4-Channel DSP Amplifier

Model 876599-0200

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 4 amplified output channels; Supported low-impedance and 70/100 V modes
  • 2400 W at 4–8 Ω or 70/100 V
  • Onboard processing; configure the speaker protection
  • 100–240 VAC (±10%), 50/60 Hz
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose PowerShareX PSX2404D 4-Channel DSP Amplifier
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose PowerShareX PSX2404D?

The Bose PowerShareX PSX2404D is a four-channel, power-sharing DSP amplifier for installed audio systems where output channels can require different power allocations. Its output-power specification is 2400 w at 4–8 ω or 70/100 v. Corporate AV can specify the speaker circuits, source equipment and installation scope for your UAE project.

This amplifier drives compatible passive loudspeakers as part of an installed sound system. It does not include the speakers, source devices or complete site wiring. Configure the amplifier in the supported ControlSpace Designer workflow. Verify the channel routing, speaker presets, output mode, protection and network setup for the actual system.

Why this product

Key Benefits

  • Loudspeaker connection

    Supported low-impedance and 70/100 V modes; calculate each speaker circuit before connection.

  • System setup

    Configure the amplifier in the supported ControlSpace Designer workflow. Verify the channel routing, speaker presets, output mode, protection and network setup for the actual system.

  • Dante input

    Four Dante input channels are included. Plan the network and routing for the installation.

Use cases

Applications

  • Commercial music and paging

    Plan speaker loads and operating levels around the required zones.

  • Corporate and hospitality spaces

    Specify sources, room controls and cabling alongside the amplifier.

  • Installed audio upgrades

    Check the existing speaker type, line voltage and processing before substituting an amplifier.

Technical details

Technical Specifications

System

Output Configuration
Supported low-impedance and 70/100 V modes
DSP / Processing
Onboard processing; configure for the connected speakers
Configuration Software
ControlSpace Designer 5.12 or later (Windows)

Power

Power Budget
2400 W at 4–8 Ω or 70/100 V

Connectivity

Amplified Output Channels
4
Rated Output
600 W × 4 at 4–8 Ω or 70/100 V, equal loading
Digital Audio Input
4 Dante in
Analogue Input Channels
4 balanced, line
Mains Input
100–240 VAC (±10%), 50/60 Hz
Output design
2400 W at 4–8 Ω or 70/100 V

Physical

Dimensions (H × W × D)
45 × 483 × 358 mm
Net Weight
15.4 lb (7.0 kg)

General

Model
PowerShareX PSX2404D
Manufacturer Part Number
876599-0200

In the box

What's Included

  • (1) 4-pin Euroblock connector

  • (1) 8-pin Euroblock connector

  • (3) 12-pin Euroblock connectors

  • (1) PowerShareX PSX2404D

  • (1) IEC power cord

  • (1) installation guide

Installation

Installation & Mounting

Recommended Compatible Loudspeaker

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair) is a compatible passive-speaker option using its appropriate 70/100 V tap. Total the selected tap wattages per amplifier channel, retain design headroom and configure the required protection.

Installation

Check speaker type, output mode, load, signal routing, protection settings, ventilation and the available electrical supply before commissioning. Configure the amplifier in the supported ControlSpace Designer workflow. Verify the channel routing, speaker presets, output mode, protection and network setup for the actual system.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty and service arrangements for the supplied SKU. Identify any optional support plan separately.

Support

Provide the PowerShareX PSX2404D quantity, speaker schedule, source equipment and site location for an itemised Corporate AV proposal in Dubai, Abu Dhabi or another UAE emirate.

Complete your solution

Recommended Accessories

Expert FAQs

What output power does the Bose PSX2404D provide?

600 W × 4 at 4–8 Ω or 70/100 V, equal loading. The power budget is 2400 W at 4–8 Ω or 70/100 V. Output depends on the documented load and operating mode; do not treat a shared total as the power available independently on every channel.

What type of loudspeaker wiring can I use with PSX2404D?

Supported low-impedance and 70/100 V modes. Match the amplifier setting to the speaker circuit, calculate the complete load and apply the manufacturer's protection settings. Do not assume HZ and LZ models are interchangeable.

Does PSX2404D include DSP or require separate processing?

Configure the amplifier in the supported ControlSpace Designer workflow. Verify the channel routing, speaker presets, output mode, protection and network setup for the actual system.

Does PSX2404D include network or wireless audio?

Four Dante input channels are included. Network configuration and audio routing still need to be commissioned.

Which speakers can I consider with PSX2404D?

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair). is a compatible passive-speaker option using its appropriate 70/100 V tap. Total the selected tap wattages per amplifier channel, retain design headroom and configure the required protection.

How many speakers can PSX2404D support?

For 70/100 V systems, total each speaker's selected transformer tap per channel and allow the required headroom. For low-impedance systems, calculate the combined impedance and power requirements. Quantity depends on the complete design rather than the number of output terminals.

What is included with PSX2404D?

The supplied pack lists (1) 4-pin Euroblock connector; (1) 8-pin Euroblock connector; (3) 12-pin Euroblock connectors; (1) PowerShareX PSX2404D; (1) IEC power cord; (1) installation guide. Confirm the exact regional cord and connectors. Other system equipment is separate unless itemised on the quotation.

How can I request a Bose PowerShareX PSX2404D quotation in the UAE?

Ask Corporate AV for PowerShareX PSX2404D, the quantity and your speaker-circuit requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, warranty, lead time and installation scope on the quotation.
