LG

LG 55VM5J-H 55-inch Full HD Video Wall Display

Model 55VM5J-H

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Screen: 55-inch IPS, 16:9
  • Native panel resolution: 1920 × 1080 (Full HD)
  • Typical brightness: 500 cd/m²
  • Operating rating: 24/7
  • Orientation: Portrait or landscape
Digital Signage & Video Walls Part of our complete AV solutions Explore Solutions
LG 55VM5J-H 55-inch Full HD Video Wall Display
  • Authorized LG Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

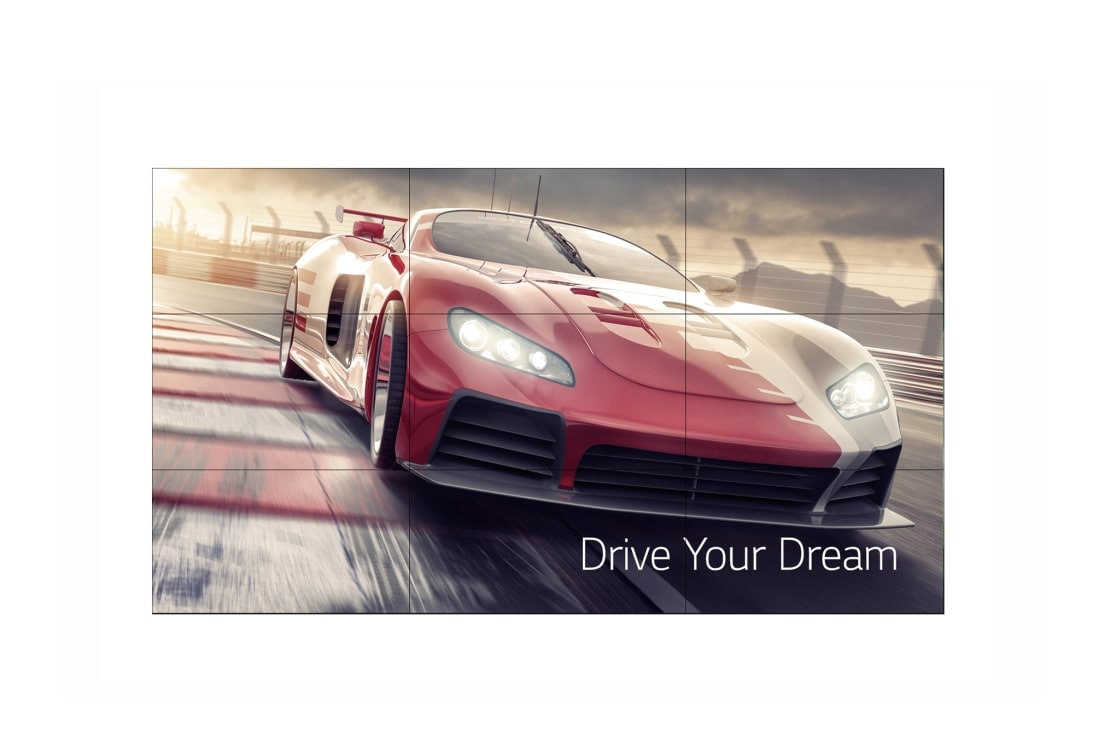

What is the LG 55VM5J-H?

The LG 55VM5J-H is a 55-inch Full HD video-wall display for tiled visual installations in reception, retail and control-room projects. Its 500-nit typical brightness and narrow panel edges help build a larger image across multiple displays, while webOS 4.1 and 8 GB of internal memory support compatible signage workflows. Each panel is 1920 × 1080; the finished wall also depends on the source layout, alignment, calibration and mounting structure. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

A professional 55-inch IPS panel designed to form part of an LCD video wall. It is supplied as one display rather than a complete wall system. Specify the panel quantity, rows and columns, content resolution, processor or player, cabling and installation together.

  • Orientation: Portrait or landscape.

Use cases

Applications

  • 55-inch tiles in corporate reception video walls

  • Retail promotional walls with a coordinated source and layout

  • Control-room and information-wall projects with calibrated panels

Technical details

Technical Specifications

Display

Screen
55-inch IPS, 16:9
Native panel resolution
1920 × 1080 (Full HD)
Typical brightness
500 cd/m²
Screen
55-inch IPS, 16:9.
Native panel resolution
1920 × 1080 (Full HD).
Typical brightness
500 cd/m².

System & Software

Platform
webOS 4.1, 8 GB internal memory

Audio & Camera

Audio
No built-in speakers; specify audio separately if required

Connectivity

Video connections
HDMI, DisplayPort and DVI-D inputs; confirm exact regional layout
Wi-Fi
Not built in; plan wired networking or separately specified equipment

Control & Management

Control
RS-232C and RJ45 LAN

Physical & Mounting

Orientation
Portrait or landscape
Bezel measurement
1.74 mm panel-bezel-to-panel-bezel; 2.49 mm active-area-to-active-area
VESA mounting
600 × 400 mm
Display weight
18.8 kg in referenced regional specification
Dimensions (W × H × D)
1212.2 × 683 × 86.9 mm

Certifications & Warranty

Operating rating
24/7
Operating rating
24/7.

Model & Identification

Model
55VM5J-H
Manufacturer part number
55VM5J-H

In the box

What's Included

  • One LG 55VM5J-H video-wall display

  • Remote control with two batteries

  • Power cord

  • RS-232C cable

  • LAN cable

  • DisplayPort cable

  • IR receiver

  • Guide bracket

  • Screws

  • Manual

Installation

Installation & Mounting

Recommended Compatible Equipment

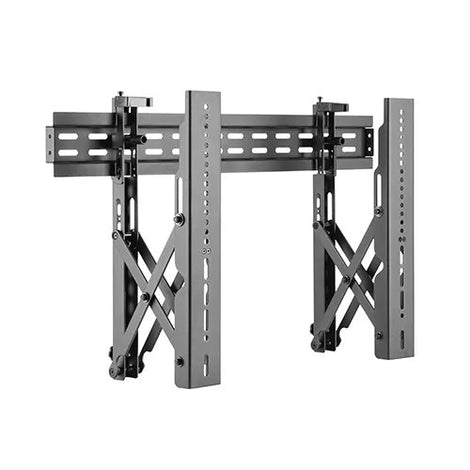

VSYS VSVW02-46T Video Wall Mount. Optional VSYS video-wall mount: its 37–70-inch screen range, 45 kg per-panel capacity and 600 × 400 mm fixing range accommodate this 55-inch, 18.8 kg reference panel. It is for solid-wall installation; specify the required connection plates, panel spacing, alignment, wall structure and rear service access for the complete array.

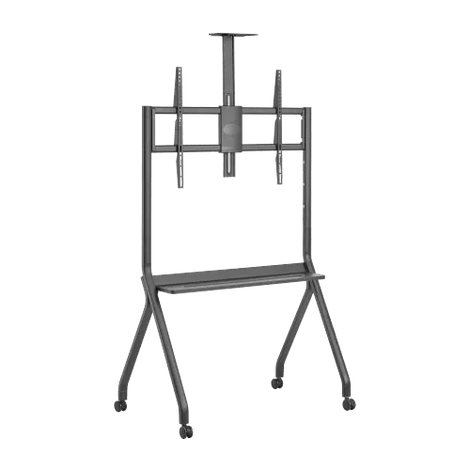

VSYS VTLX16-69FW TV Cart. Optional VSYS floor stand for ONE panel in standalone, demonstration or service use. Its published screen range, load capacity and listed 600 × 400 mm VESA pattern accommodate this panel. It is not a multi-panel wall frame; ask Corporate AV to engineer a separate VSYS support solution for a freestanding video wall.

Installation

Plan the complete panel array, load distribution, ventilation, service access and cable paths before mounting. This panel uses 600 × 400 mm VESA and has a 18.8 kg reference weight; confirm the exact supplied regional unit and attached loads. Use appropriate handling for the narrow panel edges and allow LG's specified installation gap. A single-panel mobile cart supports one display only, not a complete multi-panel video wall.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your 55VM5J-H quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the LG 55VM5J-H used for?

The LG 55VM5J-H is a 55-inch Full HD video-wall display for tiled visual installations in reception, retail and control-room projects. Its 500-nit typical brightness and narrow panel edges help build a larger image across multiple displays, while webOS 4.1 and 8 GB of internal memory support compatible signage workflows. Each panel is 1920 × 1080; the finished wall also depends on the source layout, alignment, calibration and mounting structure.

Is one LG 55VM5J-H a 4K video wall?

One panel has 1920 × 1080 native resolution. A 2 × 2 arrangement has a combined 3840 × 2160 pixel grid, but displaying a correctly mapped UHD image depends on the input format, source distribution, tile settings and any processor. Confirm the complete signal design.

What does the bezel figure for LG 55VM5J-H mean?

LG distinguishes 1.74 mm panel-bezel-to-panel-bezel from 2.49 mm active-area-to-active-area. These are different measurements; the installed wall also needs the specified gap, alignment and calibration.

Which equipment should I consider with 55VM5J-H?

VSYS VSVW02-46T Video Wall Mount. Optional VSYS video-wall mount: its 37–70-inch screen range, 45 kg per-panel capacity and 600 × 400 mm fixing range accommodate this 55-inch, 18.8 kg reference panel. It is for solid-wall installation; specify the required connection plates, panel spacing, alignment, wall structure and rear service access for the complete array.

VSYS VTLX16-69FW TV Cart. Optional VSYS floor stand for ONE panel in standalone, demonstration or service use. Its published screen range, load capacity and listed 600 × 400 mm VESA pattern accommodate this panel. It is not a multi-panel wall frame; ask Corporate AV to engineer a separate VSYS support solution for a freestanding video wall.

What is included with 55VM5J-H?

One LG 55VM5J-H video-wall display; Remote control with two batteries; Power cord; RS-232C cable; LAN cable; DisplayPort cable; IR receiver; Guide bracket; Screws; Manual. Confirm the exact regional pack on the quotation.

What should I check before installing 55VM5J-H?

Plan the complete panel array, load distribution, ventilation, service access and cable paths before mounting. This panel uses 600 × 400 mm VESA and has a 18.8 kg reference weight; confirm the exact supplied regional unit and attached loads. Use appropriate handling for the narrow panel edges and allow LG's specified installation gap. A single-panel mobile cart supports one display only, not a complete multi-panel video wall.

Can Corporate AV help specify 55VM5J-H for a UAE project?

Share your 55VM5J-H quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request an LG 55VM5J-H quotation in the UAE?

Contact Corporate AV about LG 55VM5J-H. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
