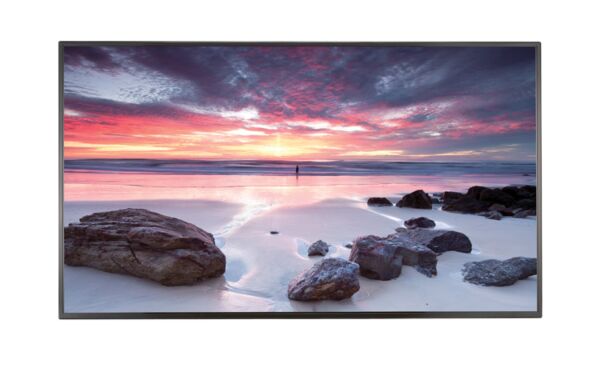

LG 86UH5C-B 86-inch 4K Commercial Signage Display
Model 86UH5C-B
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 86-inch IPS, 16:9
- Native resolution: 3840 × 2160 (4K UHD)
- Published brightness: 500 cd/m²
- Operating rating: 24/7
- Orientation: Portrait or landscape
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG 86UH5C-B?
The LG 86UH5C-B is a 86-inch 4K IPS commercial signage display with 500 cd/m² published brightness and a 24/7 operating rating. Its UHD panel suits detailed information, retail campaigns and corporate messaging in indoor installations. Embedded webOS and HDMI/DisplayPort connectivity provide options for compatible local content or an external source. Confirm the regional configuration and legacy software support before specifying a new installation or replacement. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 86-inch professional display with 3840 × 2160 native resolution, an IPS panel and portrait/landscape support. The UH5C series is designed for managed indoor signage. It can use supported embedded content tools or an external media player; software licences, mounting hardware and optional equipment need a separate scope.
- Orientation: Portrait or landscape.
Use cases
Applications
-
86-inch indoor corporate information and reception signage
-
Retail promotions and detailed UHD information layouts
-
Replacement projects requiring legacy source and CMS checks
Technical details
Technical Specifications
Display
- Screen
- 86-inch IPS, 16:9
- Native resolution
- 3840 × 2160 (4K UHD)
- Published brightness
- 500 cd/m²
- Screen
- 86-inch IPS, 16:9.
- Native resolution
- 3840 × 2160 (4K UHD).
- Published brightness
- 500 cd/m².
System & Software
- Platform
- webOS 2.0 in the manufacturer reference; check legacy CMS compatibility
- Control and storage

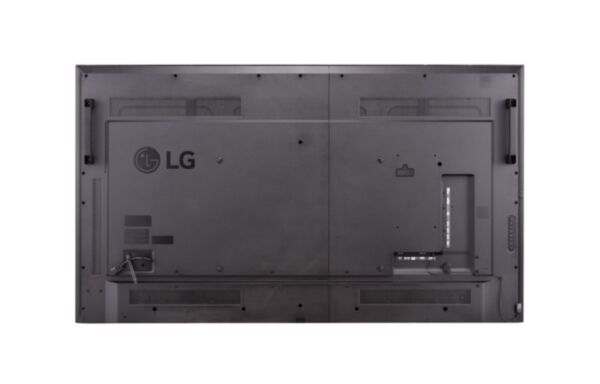

- RS-232C, RJ45, USB and SD card interfaces in the reference configuration
Connectivity
- Video interfaces
- HDMI, DisplayPort and DVI-D; verify the required signal format and resolution
- OPS
- Optional compatible OPS kit and separate third-party player; not an included PC
Physical & Mounting
- Orientation
- Portrait or landscape
- VESA mounting
- 600 × 400 mm
- Reference panel weight
- 49 kg without stand
- Reference dimensions (W × H × D)
- 1926.2 × 1097.2 × 60.6 mm without logo and handle
Certifications & Warranty
- Operating rating
- 24/7
- Operating rating
- 24/7.
Model & Identification
- Model
- 86UH5C-B
- Manufacturer part number
- 86UH5C-B
In the box
What's Included
-
One LG 86UH5C-B display
-
Remote control with two batteries
-
Power cord
-
Quick setup guide
-
DisplayPort cable (1.8 m)
-
Regulation booklet
-
Phone-jack-to-RS-232C adapter
-
Memory cover
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01A-46F Fixed TV Mount. Optional VSYS fixed wall mount. Its 37–86-inch, 80 kg rating and listed 600 × 400 mm VESA pattern accommodate the 86-inch, 49 kg reference panel. Confirm the total installed load and supporting structure.
VSYS VTLX16-69FW TV Cart. Optional VSYS mobile floor stand. Its 55–100-inch, 120 kg rating includes this 86-inch reference panel and the listed 600 × 400 mm pattern. Check footprint, viewing height, permitted orientation and cable clearance.
Installation
Match 600 × 400 mm VESA and the 49 kg reference panel weight to the VSYS support. Include any attached equipment in the installed load and check screw engagement, structural fixings, ventilation, orientation and service access. Confirm the exact suffix, current availability, firmware and CMS support for this legacy series. OPS kits, computers, mounts and additional audio equipment are separate. Published brightness does not establish outdoor or direct-sunlight suitability.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your 86UH5C-B quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
