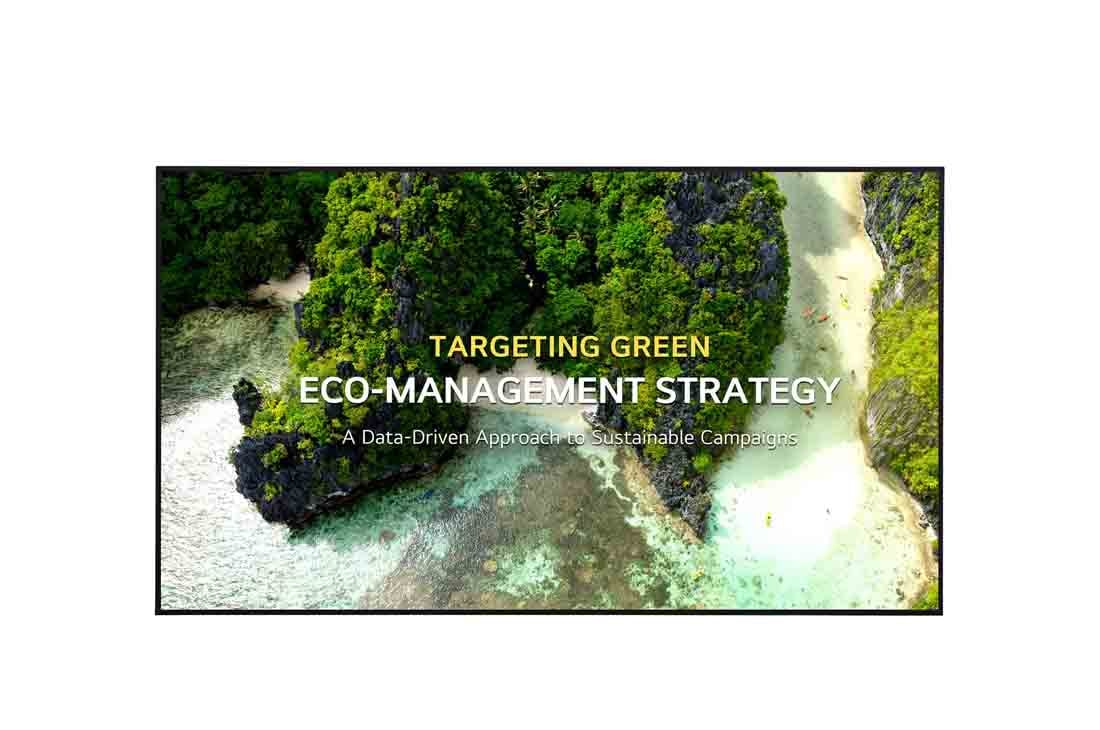

LG 86UL3Q-E 86-inch 4K UHD Digital Signage Display
Model 86UL3Q-E
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 86-inch ADS, 16:9
- Resolution: 3840 × 2160 (4K UHD)
- Typical brightness: 350 cd/m²
- Operating rating: 16/7
- Platform: webOS 6.1, 8 GB internal memory
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG 86UL3Q-E?
The LG 86UL3Q-E is a 86-inch UHD signage display for daily business communications, promotions and shared-space information. Its 350-nit typical brightness, webOS 6.1 platform and built-in brightness sensor suit indoor installations with a 16/7 operating schedule. Portrait and landscape support let you match the content layout to the screen position, while built-in speakers handle basic audio without a separate loudspeaker system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A professional 86-inch display for commercial digital signage, with 3840 × 2160 resolution and a ADS panel. It is supplied as a display rather than a complete interactive or video-conferencing system; select the content platform and any external equipment for the room.
- Platform: webOS 6.1, 8 GB internal memory.
Use cases
Applications
-
86-inch reception and visitor information screens
-
Retail promotions and indoor wayfinding
-
Corporate announcements and training-room visuals
Technical details
Technical Specifications
Display
- Screen
- 86-inch ADS, 16:9
- Resolution
- 3840 × 2160 (4K UHD)
- Typical brightness
- 350 cd/m²
- Surface haze
- 1%
- Screen
- 86-inch ADS, 16:9.
- Resolution
- 3840 × 2160 (4K UHD).
- Typical brightness
- 350 cd/m².
System & Software
- Platform
- webOS 6.1, 8 GB internal memory
Audio & Camera
- Built-in speakers
- 10 W × 2
Connectivity
- Video inputs
- HDMI × 3
- Control and network
- RS-232C in/out, RJ45 LAN, built-in Wi-Fi and Bluetooth
- USB
- USB 2.0 Type-A × 2
Physical & Mounting
- Orientation
- Portrait or landscape
- VESA mounting
- 600 × 400 mm
- Display weight without stand
- 31.8 kg
- Dimensions (W × H × D)
- 1926.6 × 1098 × 60 mm
Certifications & Warranty
- Operating rating
- 16/7
- Operating rating
- 16/7.
Model & Identification
- Model
- 86UL3Q-E
- Manufacturer part number
- 86UL3Q-E
In the box
What's Included
-
One LG 86UL3Q-E display
-
Remote control with two batteries
-
Power cord
-
Easy setup guide
-
Regulation book
-
Phone-to-D-Sub9 adapter
-
Warranty card
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01A-46F Fixed TV Mount. Optional VSYS wall mount: its published screen and load ranges accommodate this 86-inch, 31.8 kg display and 600 × 400 mm mounting pattern. Use the fixed wall mount because this display does not support face-up/down tilt. Check clearances, screw length and structural fixings.
VSYS VTLX16-69FW TV Cart. Optional VSYS mobile floor stand: its published size and load limits and listed 600×400 mm VESA pattern accommodate this display. Keep the display upright without face-up/down tilt. Check the complete load and cable routing before moving the assembly.
Installation
Match the 600 × 400 mm VESA pattern, 31.8 kg display weight and 86-inch screen size to the support, allowing for all attached accessories. Confirm screws, ventilation and the wall structure using LG's installation instructions. LG does not permit face-up or face-down tilt on the 75- and 86-inch UL3Q-E; install this model without tilt.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your 86UL3Q-E quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
