LG

LG 49VH7C 49-inch Full HD Video Wall Display

Model 49VH7C

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Screen: 49-inch IPS, 16:9
  • Native panel resolution: 1920 × 1080 (Full HD)
  • Published brightness: 700 cd/m²
  • Operating rating: 24-hour operation
  • Orientation: Portrait or landscape
Digital Signage & Video Walls Part of our complete AV solutions Explore Solutions
LG 49VH7C 49-inch Full HD Video Wall Display
  • Authorized LG Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the LG 49VH7C?

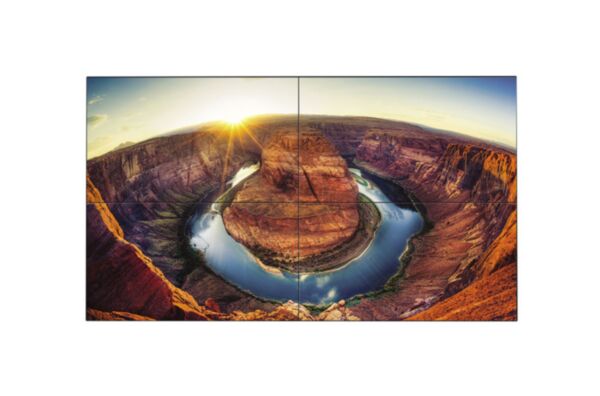

The LG 49VH7C is a 49-inch Full HD IPS video-wall panel with 700 cd/m² published brightness. Its 0.9 mm even panel edges are designed for tiled installations, with LG distinguishing the 1.8 mm bezel-to-bezel measurement from the 2.3 mm active-area-to-active-area figure. The integrated webOS signage platform supports compatible playback workflows. For an existing wall, match the exact model and suffix, screen geometry and colour behaviour before choosing a replacement. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

One 49-inch LCD display for a tiled video-wall project. This legacy model is relevant to existing installations and model-specific replacement enquiries; confirm availability and the supplied regional unit. A full wall also needs the panel array, source distribution, support structure and installation design.

  • Orientation: Portrait or landscape.

Use cases

Applications

  • 55-inch tiles in corporate reception video walls

  • 700-nit indoor promotional walls with coordinated content

  • Control and information displays with project-specific signal distribution

Technical details

Technical Specifications

Display

Screen
49-inch IPS, 16:9
Native panel resolution
1920 × 1080 (Full HD)
Published brightness
700 cd/m²
Panel edge
0.9 mm even panel bezel
Screen
49-inch IPS, 16:9.
Native panel resolution
1920 × 1080 (Full HD).
Published brightness
700 cd/m².

System & Software

Platform
Integrated webOS signage platform; confirm legacy CMS compatibility
Internal memory
8 GB total; manufacturer reference allocates 4 GB to system

Connectivity

Video inputs
HDMI, DisplayPort and DVI-D; verify supplied regional connector layout

Control & Management

Control
RS-232C, RJ45 LAN and IR receiver

Physical & Mounting

Orientation
Portrait or landscape
VESA mounting
600 × 400 mm
Reference panel weight
17.5 kg
Dimensions (W × H × D)
1075.6 × 605.8 × 86.2 mm

Certifications & Warranty

Operating rating
24-hour operation
Operating rating
24-hour operation.

Model & Identification

Model
49VH7C
Manufacturer part number
49VH7C

General

Joint measurements
1.8 mm bezel-to-bezel; 2.3 mm active-area-to-active-area

In the box

What's Included

  • One LG 49VH7C video-wall display

  • Remote control

  • Power cable

  • DisplayPort cable

  • Manual

  • IR receiver

  • RS-232C cable

  • LAN cable

  • Guide bracket

  • Screws

Installation

Installation & Mounting

Recommended Compatible Equipment

VSYS VSVW02-46T Video Wall Mount. Optional VSYS video-wall mount for solid-wall installation. Its 37–70-inch range, 45 kg capacity per panel and 600 × 400 mm maximum fixing range accommodate this 49-inch, 17.5 kg reference panel. Specify the connection plates, alignment, spacing, building fixings and service access for the whole array.

VSYS VTLS12-46TW TV Cart. Optional VSYS floor stand for ONE panel in standalone, demonstration or service use. Its published screen range, load capacity and listed 600 × 400 mm VESA pattern accommodate this panel. It is not a multi-panel wall frame; ask Corporate AV to engineer a separate VSYS support solution for a freestanding video wall.

Installation

Confirm the exact model suffix, bezel geometry, image calibration, firmware and source compatibility against the installed wall. Reference weight is 17.5 kg with 600 × 400 mm VESA. Protect the narrow edges, observe LG's panel gap and ventilation requirements, and specify the full support array and service access. A mobile stand recommendation supports one panel only. Check current software support and availability for this legacy platform.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your 49VH7C quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the LG 49VH7C used for?

The LG 49VH7C is a 49-inch Full HD IPS video-wall panel with 700 cd/m² published brightness. Its 0.9 mm even panel edges are designed for tiled installations, with LG distinguishing the 1.8 mm bezel-to-bezel measurement from the 2.3 mm active-area-to-active-area figure. The integrated webOS signage platform supports compatible playback workflows. For an existing wall, match the exact model and suffix, screen geometry and colour behaviour before choosing a replacement.

What does LG 49VH7C's 1.8 mm bezel measurement mean?

LG distinguishes 0.9 mm at each panel edge, 1.8 mm bezel-to-bezel and 2.3 mm active-area-to-active-area. These describe different boundaries. The final visible joint also depends on the prescribed installation gap and alignment.

Can LG 49VH7C be mixed with a different video-wall model?

Do not assume that panels with the same diagonal size are interchangeable. Check dimensions, mounting position, bezel geometry, brightness, colour calibration and signal handling. Share the full existing model codes and wall layout for a replacement assessment.

Which equipment should I consider with 49VH7C?

VSYS VSVW02-46T Video Wall Mount. Optional VSYS video-wall mount for solid-wall installation. Its 37–70-inch range, 45 kg capacity per panel and 600 × 400 mm maximum fixing range accommodate this 49-inch, 17.5 kg reference panel. Specify the connection plates, alignment, spacing, building fixings and service access for the whole array.

VSYS VTLS12-46TW TV Cart. Optional VSYS floor stand for ONE panel in standalone, demonstration or service use. Its published screen range, load capacity and listed 600 × 400 mm VESA pattern accommodate this panel. It is not a multi-panel wall frame; ask Corporate AV to engineer a separate VSYS support solution for a freestanding video wall.

What is included with 49VH7C?

One LG 49VH7C video-wall display; Remote control; Power cable; DisplayPort cable; Manual; IR receiver; RS-232C cable; LAN cable; Guide bracket; Screws. Confirm the exact regional pack on the quotation.

What should I check before installing 49VH7C?

Confirm the exact model suffix, bezel geometry, image calibration, firmware and source compatibility against the installed wall. Reference weight is 17.5 kg with 600 × 400 mm VESA. Protect the narrow edges, observe LG's panel gap and ventilation requirements, and specify the full support array and service access. A mobile stand recommendation supports one panel only. Check current software support and availability for this legacy platform.

Can Corporate AV help specify 49VH7C for a UAE project?

Share your 49VH7C quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request an LG 49VH7C quotation in the UAE?

Contact Corporate AV about LG 49VH7C. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
