LG

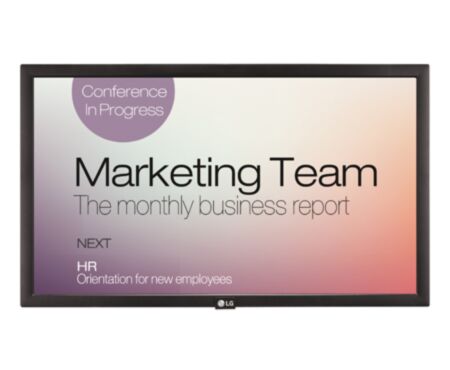

LG 22SM3B 22" Class Full HD Digital Signage Display

Model 22SM3B

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Screen: 22-inch class, 21.5-inch IPS panel
  • Native resolution: 1920 × 1080
  • Published brightness: 250 cd/m²
  • Operating rating: 16/7
  • Orientation: Portrait or landscape
Digital Signage & Video Walls Part of our complete AV solutions Explore Solutions
LG 22SM3B 22" Class Full HD Digital Signage Display
  • Authorized LG Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the LG 22SM3B?

The LG 22SM3B is a compact Full HD signage display for information close to the viewer, such as reception desks, counters and small indoor communication points. Its 22-inch class format helps fit messaging into spaces where a larger screen would be impractical. Plan the content size, viewing angle and source system before choosing the final support. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

A non-touch commercial display with a 21.5-inch IPS panel and 1920 × 1080 resolution. The embedded signage software can support compatible content workflows; verify the required application and current support for this legacy model. It is supplied separately from a desk arm or engineered floor support.

  • Orientation: Portrait or landscape.

Use cases

Applications

  • Indoor counter and reception information points

  • Compact business messaging viewed at a suitable distance

  • Legacy small-format signage replacements with verified playback requirements

Technical details

Technical Specifications

Display

Screen
22-inch class, 21.5-inch IPS panel
Native resolution
1920 × 1080
Published brightness
250 cd/m²
Screen
22-inch class, 21.5-inch IPS panel.
Native resolution
1920 × 1080.
Published brightness
250 cd/m².

System & Software

Platform
webOS 2.0; confirm current application and firmware support
Internal memory
4 GB

Audio & Camera

Audio
Verify the regional speaker configuration and any separate audio requirements

Connectivity

Inputs
HDMI, RGB, audio, USB 3.0 and SD card in the US reference

Physical & Mounting

Orientation
Portrait or landscape
VESA mounting
100 × 100 mm
Panel weight
Approximately 3.6 kg
Dimensions (W × H × D)
510.3 × 302.1 × 53.8 mm

Certifications & Warranty

Operating rating
16/7
Operating rating
16/7.

Model & Identification

Model
22SM3B
Manufacturer part number
22SM3B

In the box

What's Included

  • One LG 22SM3B display

  • Remote control with two batteries

  • Power cord

  • Quick setup guide

  • RGB cable

  • Phone-jack-to-RS-232C adapter

Installation

Installation & Mounting

Recommended Compatible Equipment

VSYS VMAE-C012WS Monitor Arm. Optional VSYS VMAE-C012WS single-monitor desk arm. Its 17–32-inch range, 2–9 kg load range and 100 × 100 mm VESA support cover the reference panel. Check the complete load, fasteners, desk structure and permitted clamp or grommet attachment. This is a desk arm, not a floor stand.

Installation

Match the 100 × 100 mm VESA pattern and approximately 3.6 kg panel weight to the VSYS desk arm, including the arm's minimum supported load. Verify desk thickness, clamp or grommet clearance, screw depth, cable slack and ventilation. For wall or floor installation, ask Corporate AV to specify a VSYS support expressly approved for the 22-inch class panel; the larger TV mounts and floor carts are not claimed as fits. Observe the 16/7 schedule and the exact regional orientation limits. Check current legacy software support before commissioning.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your 22SM3B quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the LG 22SM3B used for?

The LG 22SM3B is a compact Full HD signage display for information close to the viewer, such as reception desks, counters and small indoor communication points. Its 22-inch class format helps fit messaging into spaces where a larger screen would be impractical. Plan the content size, viewing angle and source system before choosing the final support.

Can LG 22SM3B run 24/7?

The manufacturer reference rates it for 16/7 operation. Plan a daily off period within that schedule and follow cooling and installation requirements. Choose a separately verified continuous-duty model if the project needs 24-hour operation.

Can LG 22SM3B be installed on a floor stand or wall?

Use a support specifically approved for its 21.5-inch panel, 100 × 100 mm fixing pattern and complete load. Corporate AV can assess a suitable VSYS arrangement. Larger-screen TV mounts and carts should not be assumed compatible simply because the display is lightweight.

Which equipment should I consider with 22SM3B?

VSYS VMAE-C012WS Monitor Arm. Optional VSYS VMAE-C012WS single-monitor desk arm. Its 17–32-inch range, 2–9 kg load range and 100 × 100 mm VESA support cover the reference panel. Check the complete load, fasteners, desk structure and permitted clamp or grommet attachment. This is a desk arm, not a floor stand.

What is included with 22SM3B?

One LG 22SM3B display; Remote control with two batteries; Power cord; Quick setup guide; RGB cable; Phone-jack-to-RS-232C adapter. Confirm the exact regional pack on the quotation.

What should I check before installing 22SM3B?

Match the 100 × 100 mm VESA pattern and approximately 3.6 kg panel weight to the VSYS desk arm, including the arm's minimum supported load. Verify desk thickness, clamp or grommet clearance, screw depth, cable slack and ventilation. For wall or floor installation, ask Corporate AV to specify a VSYS support expressly approved for the 22-inch class panel; the larger TV mounts and floor carts are not claimed as fits. Observe the 16/7 schedule and the exact regional orientation limits. Check current legacy software support before commissioning.

Can Corporate AV help specify 22SM3B for a UAE project?

Share your 22SM3B quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request an LG 22SM3B quotation in the UAE?

Contact Corporate AV about LG 22SM3B. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
