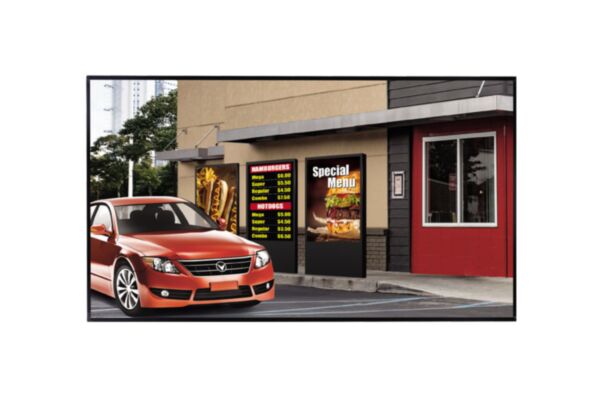

LG 55XF3C 55-inch Full HD High-Brightness Open-Frame Display
Model 55XF3C
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 55-inch Full HD, 16:9
- Native resolution: 1920 × 1080
- Typical brightness: 3000 cd/m²
- Operating rating: 24/7
- Video input: Two HDMI, DisplayPort and DVI-D
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG 55XF3C?
The LG 55XF3C is a 55-inch Full HD high-brightness open-frame screen for engineered signage installations. It has 3000 cd/m² typical brightness and a 24/7 operating rating. Its open-frame format requires the enclosure, cooling and support structure to be designed as part of the installation. Confirm the legacy software, regional configuration and project requirements before ordering. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 55-inch 1920 × 1080 commercial display for custom integrated high-brightness signage. Use a compatible source or supported legacy content tools. Brightness and conformal coating do not make it a complete weatherproof outdoor installation.
- Video input: Two HDMI, DisplayPort and DVI-D.
Use cases
Applications
-
Custom high-brightness signage with engineered enclosure
-
Legacy commercial display replacement projects
-
Specified signage systems with compatible source, software and VSYS supports
Technical details
Technical Specifications
Display
- Screen
- 55-inch Full HD, 16:9
- Native resolution
- 1920 × 1080
- Typical brightness
- 3000 cd/m²
- Screen
- 55-inch Full HD, 16:9.
- Native resolution
- 1920 × 1080.
- Typical brightness
- 3000 cd/m².
Audio & Camera
- Audio
- External-speaker output; speakers are separate
Connectivity
- Video input
- Two HDMI, DisplayPort and DVI-D
Control & Management
- Control
- RS-232C, RJ45 and IR
Physical & Mounting
- VESA mounting
- 600 × 400 mm
- Reference panel weight
- 27 kg
- Dimensions (W × H × D)
- 1235.4 × 709.4 × 106 mm
Operating Conditions
- Temperature conditions
- 0–50°C without direct sunlight; 0–40°C with direct sunlight in UAE reference
Certifications & Warranty
- Operating rating
- 24/7
- Operating rating
- 24/7.
Model & Identification
- Model
- 55XF3C
- Manufacturer part number
- 55XF3C
General
- Content workflow
- webOS 1.0 and legacy SuperSign reference; confirm current CMS support
- Regional configuration check
- UAE reference 27.0 kg; Australia lists 28.5 kg. Confirm supplied panel and use full assembly load
In the box
What's Included
-
One LG 55XF3C display
-
Remote control with two batteries
-
Power cord
-
IR extension cable/PCB
-
HDMI cable
-
Manual (ESG/EIG)
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01E-46F Fixed TV Mount. Optional VSYS fixed wall mount: 37–86-inch range, 45 kg load rating and listed 600 × 400 mm VESA pattern for the 55-inch, 27 kg reference panel. Treat it as a support candidate for the engineered assembly; verify enclosure load and interface.
VSYS VTLX16-69FW TV Cart. Optional VSYS floor-stand candidate: 55–100-inch range, 120 kg rating and listed 600 × 400 mm pattern. Confirm the complete installation, cooling, stability and manufacturer mounting instructions; no LG stand is included.
Installation
Match 600 × 400 mm VESA and the 27 kg reference panel weight to the VSYS support. Confirm the exact regional unit, complete load, fastener engagement, wall structure, orientation, ventilation and service access. For this open-frame screen, engineer the enclosure, cooling, protection and support interface together; added components change the load. UAE and Australian references list different weights. Optional speakers, players, enclosure and mounts are separate. A nominal screen-size match alone does not approve the full installation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your 55XF3C quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
