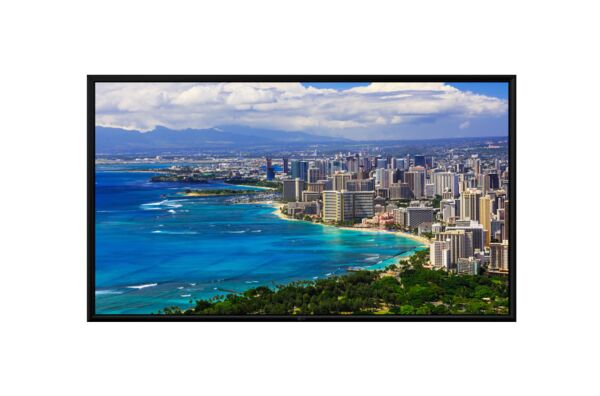

LG 84WS70BD 84-inch 4K Large-Format Signage Display
Model 84WS70BD
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 84-inch IPS, 16:9
- Native resolution: 3840 × 2160 (4K UHD)
- Published brightness: 350 cd/m²
- Operating rating: 24/7
- Orientation: Portrait or landscape; confirm mounting orientation
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG 84WS70BD?
The LG 84WS70BD is an 84-inch 4K IPS commercial display with 350 cd/m² published brightness and a 24/7 operating rating. Its single large screen provides a continuous canvas for business information, presentations and indoor signage without joins between separate panels. The referenced series supports landscape and portrait positioning. Plan the source signal, lifting access and installation structure alongside the screen. The MD/BD series leaflet gives a 72.9 kg panel reference; verify the ordered BD unit before finalising supports. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A large-format 84-inch 3840 × 2160 professional screen for indoor business and information displays. It provides HDMI, DisplayPort and DVI-D connections for a compatible source. Confirm legacy software and content playback requirements; an optional media player is not an included computer.
- Orientation: Portrait or landscape; confirm mounting orientation.
Use cases
Applications
-
84-inch indoor corporate information and reception displays
-
Large presentation canvases with compatible signal equipment
-
Legacy UHD signage replacement projects with mechanical and source verification
Technical details
Technical Specifications
Display
- Screen
- 84-inch IPS, 16:9
- Native resolution
- 3840 × 2160 (4K UHD)
- Published brightness
- 350 cd/m²
- Screen
- 84-inch IPS, 16:9.
- Native resolution
- 3840 × 2160 (4K UHD).
- Published brightness
- 350 cd/m².
Audio & Camera
- Audio
- External-speaker output; optional SP-2100 speakers are separate
Connectivity
- Video inputs
- HDMI, DisplayPort and DVI-D; verify the required signal format
- OPS
- Not supported in the referenced manufacturer specification
Control & Management
- Control
- RS-232C, RJ45 and IR; confirm source and control integration
Physical & Mounting
- Orientation
- Portrait or landscape; confirm mounting orientation
- VESA mounting
- 600 × 400 mm
- Reference panel weight
- 72.9 kg
- Reference dimensions (W × H × D)
- 1923 × 1109 × 51 (101 mm including handles) mm
Certifications & Warranty
- Operating rating
- 24/7
- Operating rating
- 24/7.
Model & Identification
- Model
- 84WS70BD
- Manufacturer part number
- 84WS70BD
General
- Configuration check
- The MD/BD series leaflet gives a 72.9 kg panel reference; verify the ordered BD unit before finalising supports.
In the box
What's Included
-
One LG 84WS70BD display
-
Power cord
-
Remote control with two batteries
-
CD with manual, Elite-C and ESG materials
-
Two eye bolts
-
HDMI cable in the MD/BD series reference pack
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01A-69F Fixed TV Mount. Optional VSYS heavy-duty fixed wall mount. Its 60–120-inch range, 120 kg load rating and maximum 974 × 602 mm mounting-hole spread cover this 84-inch, 72.9 kg reference screen and 600 × 400 mm pattern. Confirm rail engagement, total load, wall structure and lifting access.
VSYS VTLX16-69FW TV Cart. Optional VSYS heavy-duty floor stand. Its 55–100-inch range, 120 kg rating and listed 600 × 400 mm pattern accommodate this reference panel. Verify the permitted orientation, stability, installed accessories, travel route and floor conditions.
Installation
Match 600 × 400 mm VESA and the 72.9 kg reference panel weight to a heavy-duty VSYS support. Include all attached equipment in the load. The MD/BD series leaflet gives a 72.9 kg panel reference; verify the ordered BD unit before finalising supports. Confirm the structural design, fastener engagement, lifting procedure, access route, screen orientation, ventilation and rear service clearance. Optional players, speakers and mounts are separate. This is an indoor screen; brightness does not establish outdoor weather protection.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your 84WS70BD quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
